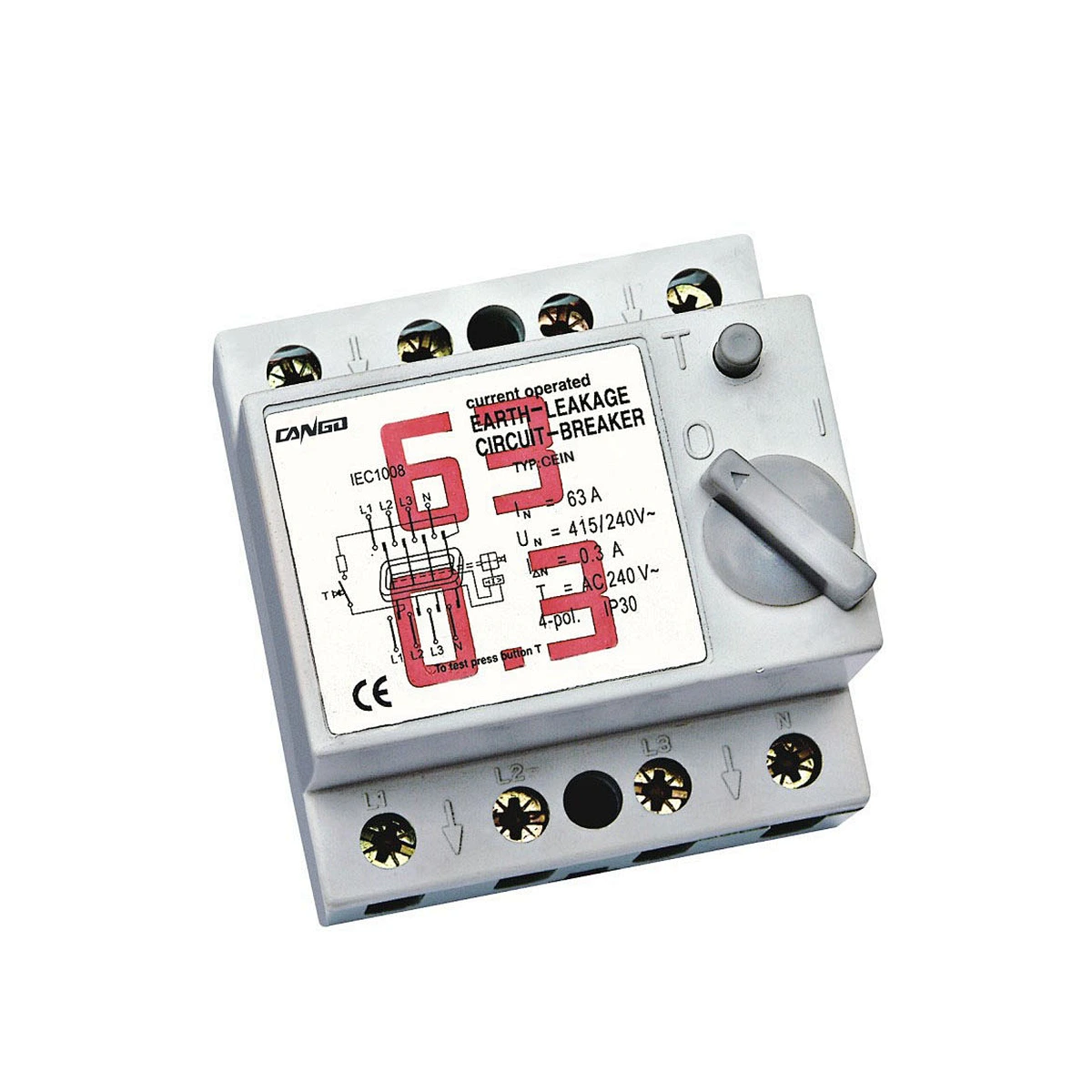

KGIN Earth Leakage Circuit Breaker
KGIN Earth Leakage Circuit Breaker
KGIN earth leakage circuit breaker covers KGIN25, KGIN40 and KGIN63 references for 240V/415V circuits. Contact CANGO for project selection.
Buyer Overview
KGIN earth leakage circuit breaker is described on the original page for immediate disconnection when an electric shock hazard or earth leakage fault occurs. The listed application range covers single-phase 240V and three-phase 415V, 50/60Hz circuits.
The KGIN table separates KGIN25, KGIN40 and KGIN63 frame references and provides 2-pole and 4-pole selections. It is intended for plants, enterprises, buildings, commercial premises, guesthouses and residential installations when correctly coordinated.
Key Features
- KGIN25, KGIN40 and KGIN63 product references
- 2P and 4P pole configurations listed
- 240(220)V and 415(380)V voltage references shown
- Residual operating current values of 0.03A, 0.1A, 0.3A and 0.5A
- Breaking capacity references from 1500A to 3000A according to type
- 4000 endurance operations stated in the original table
Technical Specifications
| Type | KGIN25 | KGIN40 | KGIN63 | |
|---|---|---|---|---|
| Rated Current Lsn(A) | 25 | 40 | 63 | |
Rated Operating Current For Earth Leakage Lon(A) | 0.03,0.1,0.3,0.5 | |||
Rated Non-operating Current For Earth Leakage Lon(A) | 0.5ln(A) | |||
| Voltage(V) | 240(220)/415(380) | |||
| Pole No. | 2 | 4 | ||
| Operating Time(second) | lon(A) | 2ln(A) | 0.25A(or51an) | |
| 200 | 300 | 400 | ||
| In Min Value of Rated Operating and Breaking Capacity | 1500 | 2000 | 3000 | |
| Endurance(times) | 4000 | |||
Selection Notes
Select the KGIN frame by rated current first, then match pole number and operating voltage to the distribution system.
For personnel or fire-risk protection, the residual operating current must follow the project design and applicable local requirements.
Use the operating-time table when coordinating KGIN with upstream residual current devices or project protection schemes.
Applications and Installation Notes
Applications
- Industrial plants and enterprise distribution systems
- Commercial buildings and guesthouse electrical panels
- Construction project distribution boards
- Residential circuits with confirmed ELCB requirements
- 240V single-phase and 415V three-phase installations
Installation Notes
- Check whether the selected unit is 2P or 4P before preparing conductors.
- Follow the original terminal markings and ensure protective earthing is correctly installed.
- Verify residual current coordination if more than one leakage device is connected in series.
- Commission and test the installation according to the project procedure and local electrical code.
Information to Confirm
Related Search Terms
For model-specific sourcing and quotation comparison, buyers may also search for KGIN25 leakage breaker;KGIN40 residual current breaker;240V 415V earth leakage breaker. These search phrases describe the requested KGIN product direction and do not replace confirmed technical selection.
KGIN FAQ
Which KGIN models are shown in the original table?
What voltage systems are listed for KGIN?
What residual current settings are available?
Where is KGIN commonly applied?
What details are needed for a KGIN project quotation?
