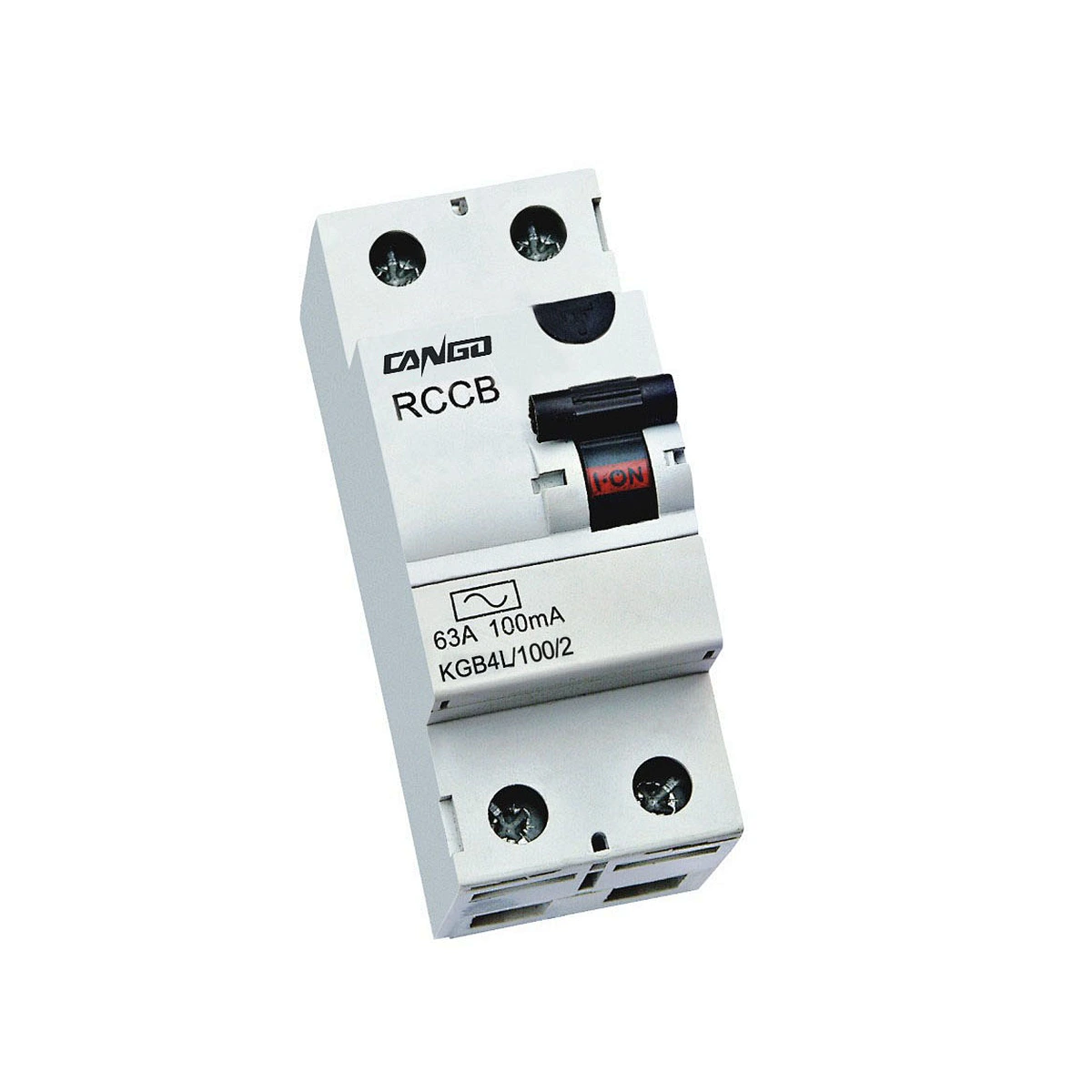

KGB4L Residual Current Circuit Breaker (RCCB)
KGB4L Residual Current Circuit Breaker (RCCB)
KGB4L RCCB supports 2P 230V and 4P 400V circuits with selectable residual operating current. Request technical data and quotation from CANGO.
Buyer Overview
KGB4L is a residual current circuit breaker intended for AC 50/60Hz electrical systems. The current website table lists 2-pole 230VAC and 4-pole 400VAC configurations for earth leakage protection in distribution circuits.
For importer and project selection, the KGB4L page should be evaluated by pole number, rated current and residual operating current. The product is an RCCB and should not be used as overload or short-circuit protection unless separate protection is provided.
Key Features
- 2P 230VAC and 4P 400VAC configurations listed on the original page
- Rated current options of 25A, 40A and 63A
- Residual operating current selections of 30mA, 100mA, 300mA and 500mA
- Operating time listed as no more than 0.1 second
- Symmetrical DIN rail installation
- Original table references IEC61008 and GB16916
Technical Specifications
| Standard | IEC61008,GB16916 |
| Rated Voltage(Un) | 2 Pole 230VAC 4 Pole 400VAC |
| Rated Current(In) | 25,40,63A |
| Rated Residual Operating Current(I△n) | 30,100,300,500mA |
| Rated Residual Non-operating Current(I△no) | 0.5I△n |
| Rated Current off-time | ≤0.1s |
| Min Value of Rated Operating and Breaking Capacity(lm) | 63A |
| Rated Conditional Short-circuitCurrent(Inc) | In=25,40A Inc=1500A ln=63A Inc=3000A |
| Endurance | On load:2000 Cycles off load:2000 Cycles |
| Installation | On Symmetrical DIN Rail |
Selection Notes
Select KGB4L according to the wiring system first: 2P for the listed 230VAC configuration or 4P for the listed 400VAC configuration.
Choose 30mA, 100mA, 300mA or 500mA only after checking the protection objective and local installation requirements.
Coordinate the RCCB with a suitable upstream or downstream overcurrent protection device because the current page positions KGB4L as residual current protection.
Applications and Installation Notes
Applications
- Residential consumer units requiring earth leakage disconnection
- Commercial distribution boards using 2P or 4P circuits
- Building wiring projects with confirmed residual current settings
- Electrical panel replacement and distributor sourcing
- Low-voltage AC leakage protection installations
Installation Notes
- Install on a symmetrical DIN rail as stated in the product table.
- Verify line and load terminals before energizing the circuit.
- Select a separate protective device for overload and short-circuit protection where required.
- Test procedures and inspection intervals should follow the product instructions and local electrical rules.
Information to Confirm
Related Search Terms
For model-specific sourcing and quotation comparison, buyers may also search for 2P 230V residual current breaker;4P 400V leakage protection switch;IEC 61008 RCCB for distribution board. These search phrases describe the requested KGB4L product direction and do not replace confirmed technical selection.
KGB4L FAQ
What configurations are listed for KGB4L?
Which rated currents are available?
What residual current values are shown?
Does KGB4L provide overload protection?
What is needed for a KGB4L quotation?
