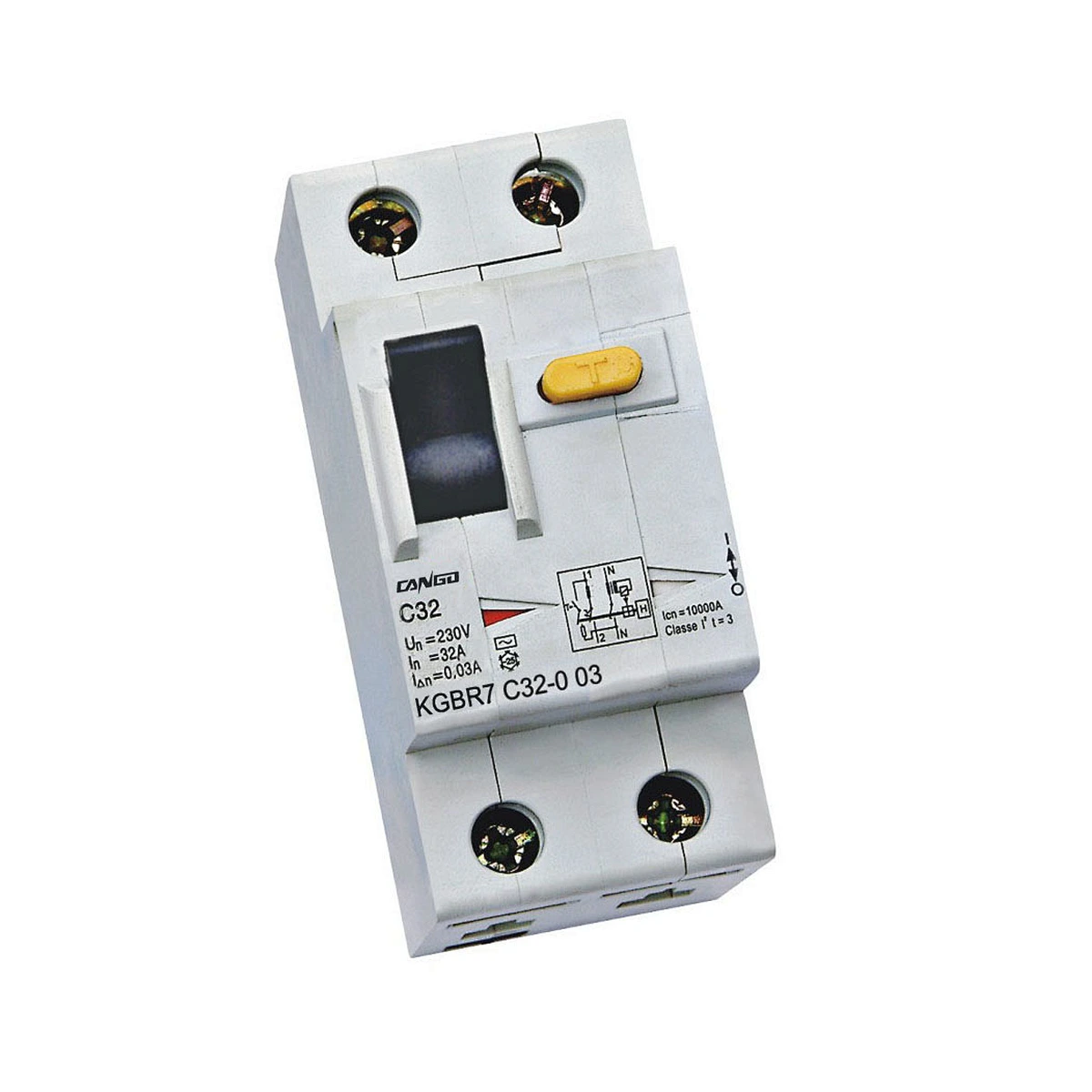

KGBR7 2P Residual Current Breaker
KGBR7 2P Residual Current Breaker
KGBR7 is listed as a compact 2P 230V residual current breaker with 25A, 32A and 40A options. Ask CANGO for function confirmation and quotation.
Buyer Overview
KGBR7 is named as an RCBO on the website and uses a compact 2-pole format for 230VAC circuits. Its original table lists 25A, 32A and 40A current options together with multiple residual current values.
The uploaded table references IEC61008, GB16916 and BS EN61008, which are residual current breaker standards. Buyers should therefore confirm the exact overcurrent protection function in the latest KGBR7 datasheet before final substitution or project approval.
Key Features
- Compact 2P configuration for the listed 230VAC application
- 25A, 32A and 40A rated current options shown
- 30mA, 100mA, 300mA and 500mA residual current selections listed
- Residual current operating time listed as no more than 0.1 second
- 3kA rated conditional short-circuit current shown
- Symmetrical DIN rail mounting
Technical Specifications
| Standard | IEC61008.GB16916,BS EN61008 |
| Rated Voltage(Un) | 2 Pole :230VAC |
| Rated Current(In) | 25,32,40A |
| Rated Residual Operating Current(I△n) | 30,100,300,500mA |
| Rated Residual Non-operating Current(I△no) | 0.5I△n |
| Rated Current off-time | ≤0.1s |
| Minimum Value of Rated Operating and Breaking Capacity(lm) | 500A |
| Rated Conditional Short-circuitCurrent(Inc) | 3KA |
| Installation | On Symmetrical DIN Rail |
Selection Notes
Check whether the project needs RCCB-only protection or a true RCBO function before specifying KGBR7.
Choose the residual operating current according to the circuit purpose, required protection level and local rules.
Verify available module width and terminal arrangement against the actual panel before replacement.
Applications and Installation Notes
Applications
- Compact 230V distribution boards
- Residential leakage protection circuits
- Commercial final distribution panels
- Replacement sourcing where 2P format must be maintained
- Distributor inventories for several residual current settings
Installation Notes
- Confirm the latest wiring diagram because product function must match the intended circuit.
- Mount on a compatible symmetrical DIN rail and maintain the specified conductor preparation.
- Operate the test mechanism after installation if provided by the final product version.
- Record the selected residual current rating in the panel schedule for future maintenance.
Information to Confirm
Related Search Terms
For model-specific sourcing and quotation comparison, buyers may also search for KGBR7 RCBO;KGBR7 2 pole residual current breaker;230V leakage protection breaker;25A 32A 40A residual breaker;compact residual breaker for panel board;KGBR7 distributor inquiry. These search phrases describe the requested KGBR7 product direction and do not replace confirmed technical selection.
KGBR7 FAQ
Why does the KGBR7 page require function confirmation?
What voltage and pole format are listed?
Which current ratings are shown for KGBR7?
Can KGBR7 be selected for 30mA protection?
What information helps avoid a wrong replacement?
