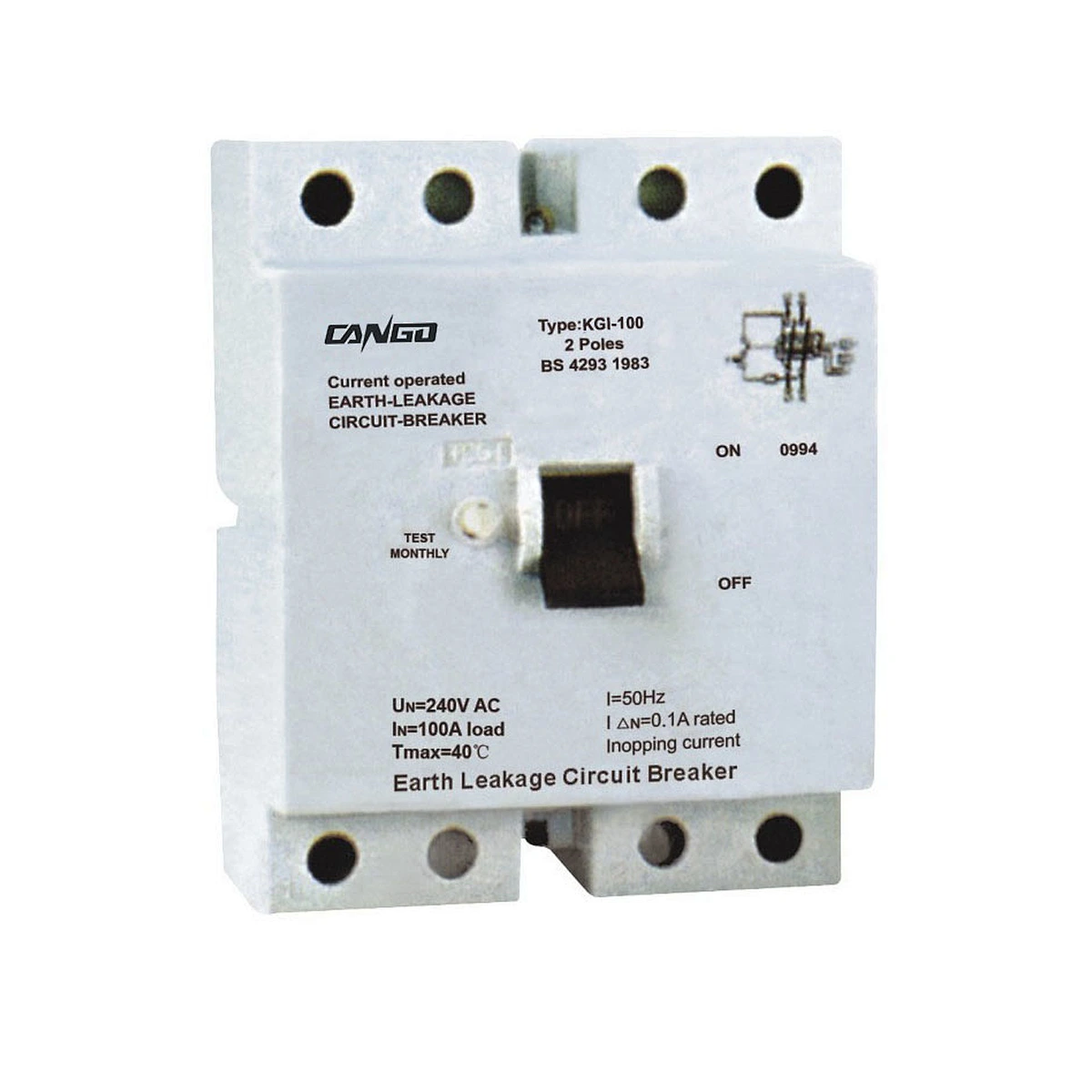

KGI-100 Residual Current Circuit Breaker
KGI-100 Residual Current Circuit Breaker
KGI-100 RCCB provides isolation switching and residual current protection in listed 2P/4P AC circuits. Contact CANGO for rating confirmation.
Buyer Overview
KGI-100 residual current circuit breaker is described as providing isolation switching and earth leakage protection for electrical circuits. The original page also positions it for indirect-contact protection and reduction of fire risk associated with leakage faults.
Although the model is KGI-100, the current uploaded table lists rated current options of 25A, 40A and 63A. Buyers should use the table values and latest datasheet rather than interpreting the model number as a confirmed 100A rating.
Key Features
- Isolation switching and residual current protection stated on the page
- 2P and 4P configurations listed
- 25A, 40A and 63A rated current options in the current table
- 30mA, 100mA, 300mA and 500mA residual operating current values
- AC 230(240)V and 400(415)V voltage references
- On-load and off-load endurance values retained in the original table
Technical Specifications
| Type | KGI-100 | |
|---|---|---|
| Standard | IEC61008 | |
| No. of Poles | 2P,4P | |
| Rated Current(In) | 25,40,63A | |
| Rated Residual Operating Current(l△n) | 30,100,300,500mA | |
| Rated Residual Non-operating Current(l△no) | 50,150.250mA | |
| Rated Voltage(Un) | AC 230(240)/400(415)V | |
| Residual Current off-time | ≤0.1s | |
| Short-circuit Capacity(Inc) | In=25,40A Inc 1500A In=63A Inc 3000A | |
| Endurance | On load | 2000 cycles |
| Off load | 2000 cycles | |
Selection Notes
Treat KGI-100 as the model designation and select only from confirmed rated currents in the current table.
Choose pole number and voltage together to avoid ordering a device that does not match the wiring system.
Confirm the residual operating current with the electrical designer, especially where several RCCBs require discrimination.
Applications and Installation Notes
Applications
- Main and sub-distribution boards requiring RCCB isolation
- Commercial building electrical protection
- Industrial panel leakage protection circuits
- Residential distribution systems using 2P devices
- Three-phase panels using confirmed 4P configurations
Installation Notes
- Provide separate overload and short-circuit protection because KGI-100 is presented as an RCCB.
- Check AC voltage and pole configuration before connecting incoming conductors.
- Maintain adequate clearance and conductor termination according to the final instruction sheet.
- Use the test function during commissioning and routine inspection when fitted.
Information to Confirm
Related Search Terms
For model-specific sourcing and quotation comparison, buyers may also search for KGI-100 earth leakage circuit breaker;2P 4P residual current switch;25A 40A 63A leakage breaker;AC 230V 400V RCCB;KGI-100 distributor quotation. These search phrases describe the requested KGI-100 product direction and do not replace confirmed technical selection.
KGI-100 FAQ
Does KGI-100 mean the breaker is rated at 100A?
What pole options are listed?
Which AC voltages appear on the page?
Is KGI-100 an RCBO?
What should distributors specify for quotation?
