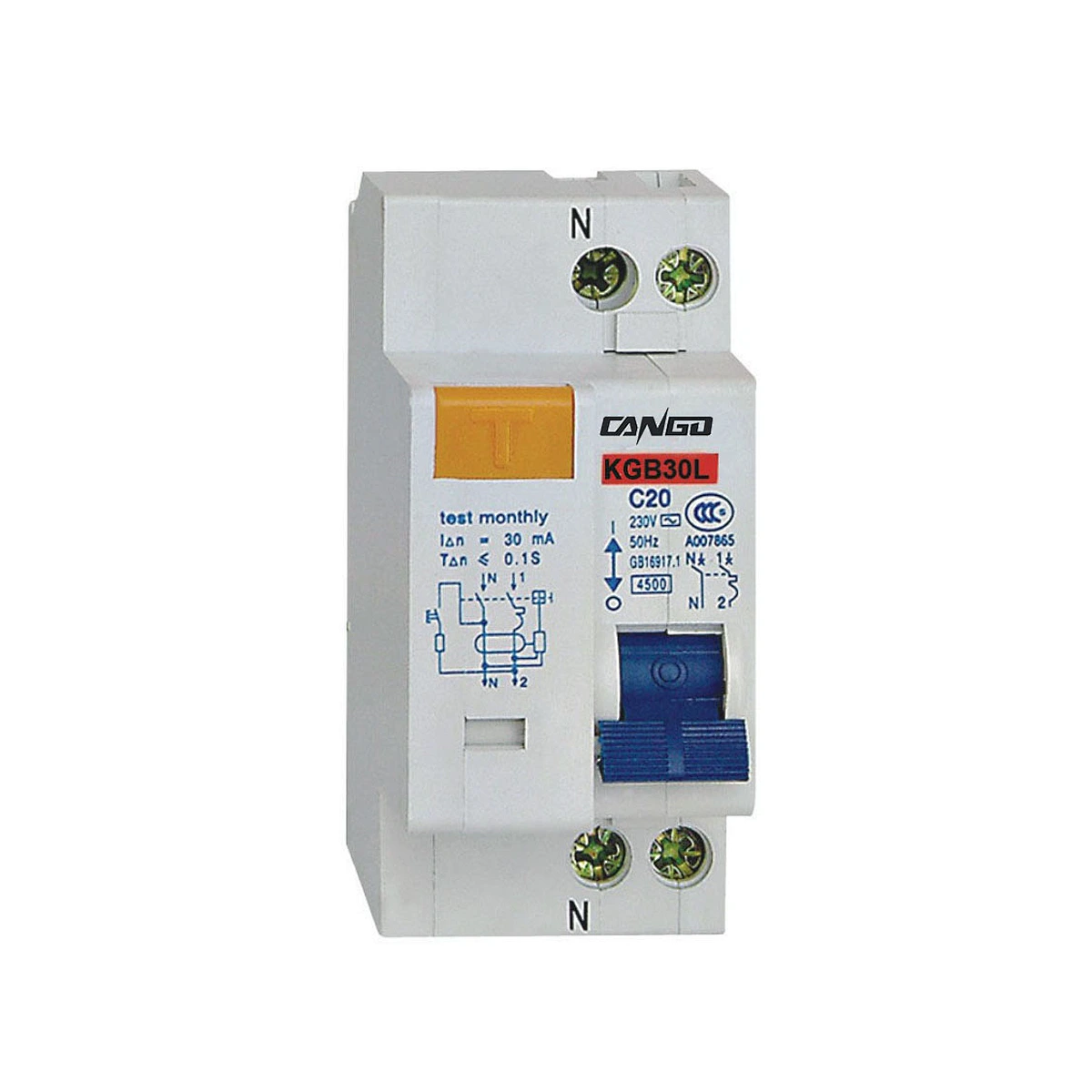

KGB30L 1P+N RCBO Earth Leakage Circuit Breaker
KGB30L 1P+N RCBO Earth Leakage Circuit Breaker
KGB30L 1P+N RCBO covers 6-32A, 230V, 30mA residual operation and 3kA breaking capacity for single-phase distribution boards.
Buyer Overview
KGB30L leakage protective breaker is used in single-phase residential circuits. The original page lists AC 50Hz, rated voltage 230V and a 1P+N pole arrangement for electric shock and leakage protection.
The uploaded table covers 6A to 32A rated current, 30mA rated leakage operating current and 3000A breaking capacity. The original description references IEC61009 and GB16917 and notes electronic operation related to live-wire connection.
Key Features
- 1P+N configuration for the listed 230V single-phase circuit
- Rated current options of 6A, 10A, 16A, 20A, 25A and 32A
- 30mA rated leakage operating current shown
- 15mA rated leakage non-operating current listed
- Leakage breaking time of no more than 0.1 second
- 3000A breaking capacity retained from the original table
Technical Specifications
Rated Current(A) | No.of Pole | Rated Voltage (V) | Rated Current of Frame | Rated Leakage Operating | Rated Leakage Non-Operating Current | Rated Leakage Breaking Time | Breaking Capacity (A) |
6,10,16, 20,25,32 | 1+N | 230 | 32 | 30 | 15 | ≤0.1s | 3000 |
Rated Current(A) | Rated Voltage(V) | Limited Time | Pre-engage Result | Start State | Note |
| 1.13In | all | t≥1h | non-trip | cold state | |
| 1.45In | all | t<1h | trip | heat state | The current rise steadiy toa fixed value within 5s |
| 2.55In | all | 1 | trip | cold state | |
| 5In | all | t≥0.1s | non-trip | cold state | Open the supplementary switch,connect the power |
| 10In | all | t<0.1s | trip | cold state | Open the supplementary switch,connect the power |
Selection Notes
Choose the KGB30L rated current according to conductor size, circuit load and local protection rules.
The current page is specific to a 1P+N 230V arrangement; confirm compatibility before replacing another pole configuration.
Because the original description notes connection sensitivity, verify live and neutral terminal orientation before energizing the breaker.
Applications and Installation Notes
Applications
- Single-phase residential branch circuits
- Apartment and house distribution boxes
- Commercial 230V final circuits
- Retrofit work requiring a compact 1P+N device
- Shock and leakage protection in confirmed applications
Installation Notes
- Connect the live and neutral conductors according to the product markings and original wiring instruction.
- Do not reverse the stated line connection on an electronic leakage protection version.
- Verify the selected rated current and 3kA value against the installation design.
- Operate the test mechanism after installation and during scheduled maintenance when applicable.
Information to Confirm
Product Advantages
- Compact 1P+N arrangement for the listed 230V single-phase circuit configuration
- Rated-current choices from 6A to 32A according to the original product table
- 30mA rated leakage operating current for the stated shock and leakage protection application
- 3000A breaking capacity and operating time of no more than 0.1 second as listed
- Clear model selection for residential and compact distribution-board enquiries
Related Search Terms
For model-specific sourcing and quotation comparison, buyers may also search for KGB30L 230V leakage circuit breaker;6A-32A single phase RCBO;30mA residential distribution breaker;3kA compact leakage protection device;KGB30L bulk quotation. These search phrases describe the requested KGB30L product direction and do not replace confirmed technical selection.
KGB30L FAQ
What current ratings are listed for KGB30L?
What pole and voltage configuration does KGB30L use?
What leakage operating current is shown?
What breaking capacity is stated?
What information is required for quotation?
