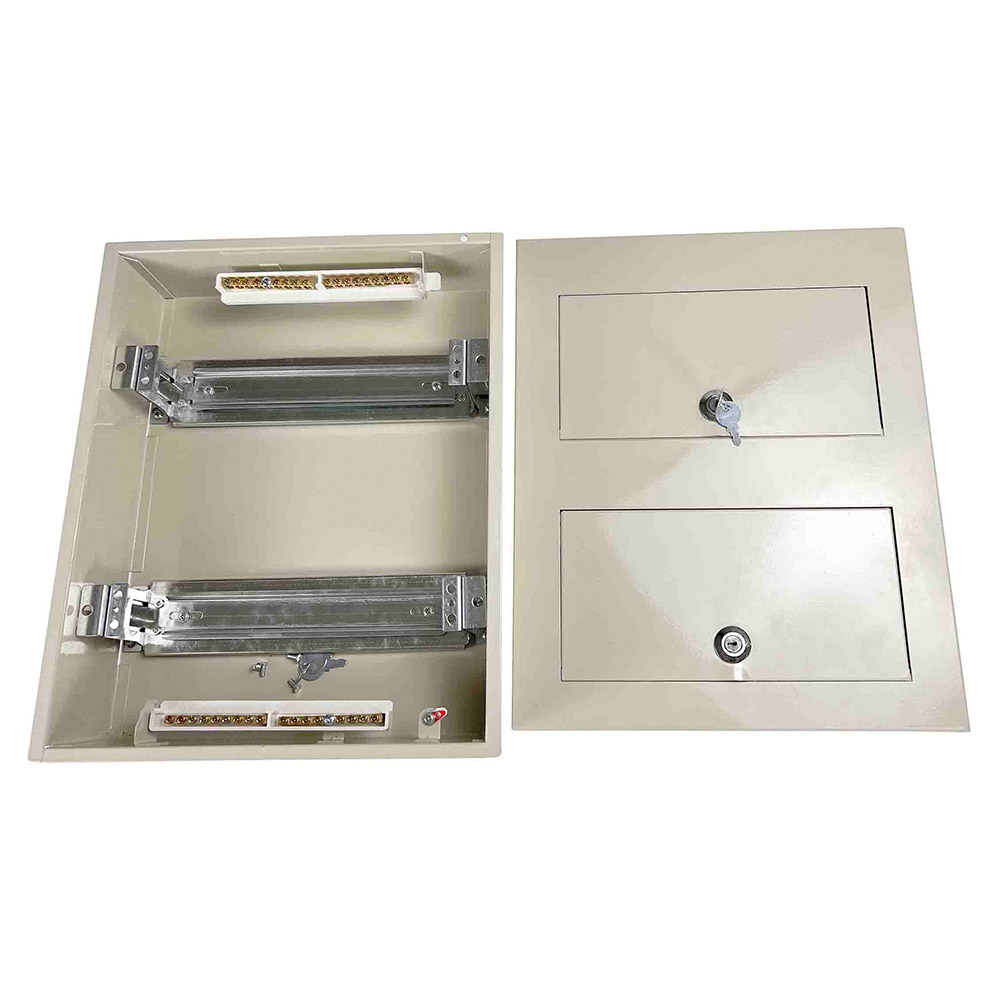

PZ30 Metal Distribution Box
● Protection Degree: IP40
● Enclosure Color: RAL7032 or RAL7035
● Application: Residential distribution box
● Size range: 8Way, 10Way,12Way, 18Way,24Way, 36Way
● Metal door with lock
● Wall flush type
Cango KG-PZ30 Series PZ30 Metal Distribution Box
Indtroduction:
Technical Data:
1. Box Body and door is made of 1.0mm cold-rolled steel plate
2. Cycle thermosetting epoxypolyester powder coating.
3. Body and door color are RAL7032 or RAL7035
4. Standard 35mm-Din Rail and Brass connectors inside.
5. Protection level : IP40
6. One or Two strudy metal door with a lock.
7. IK10 Against mechanical Impacts
8. Wall flush installation
The advantages of Pz30 Metal Distribution Box are as follows:
2. Powerful protection function: It is equipped with multiple protection devices such as anti-leakage, anti-electric shock, short circuit prevention, and overload prevention.
3. Mature technology: The principle is simple. It mainly contains various switching devices, transparent doors, protective grounding bars, etc. The assembled structure using
4. Convenient incoming line: Knockout holes for incoming lines can be set on the top, bottom, left, right, and back of the box for convenient wiring.
5. Safe structural design: The cabinet surface is sprayed with epoxy powder, which is beneficial for anti-corrosion, has strong adhesion, a good feel, and a uniform and
6. Wide applicability: It can be widely used in various large commercial outlets, industrial and mining enterprises, high-rise buildings, stations, hotels, airports, theaters,
Model Selection:
Model | Dimenison(mm) |
KGPZ30-8 Way | 216 x 205 x90 |
KGPZ30-10 Way | 252 x 200 x90 |
KGPZ30-12 Way | 284 x 220 x90 |
KGPZ30-15 Way | 342 x220 x90 |
KGPZ30-18 Way | 378 x 220 x90 |
KGPZ30-20 Way | Single Row 433 x 220 x90 |
KGPZ30-24 Way | Double Rows 284 x 360 x90 |
KGPZ30-30 Way | Double Rows 342 x 360 x90 |
