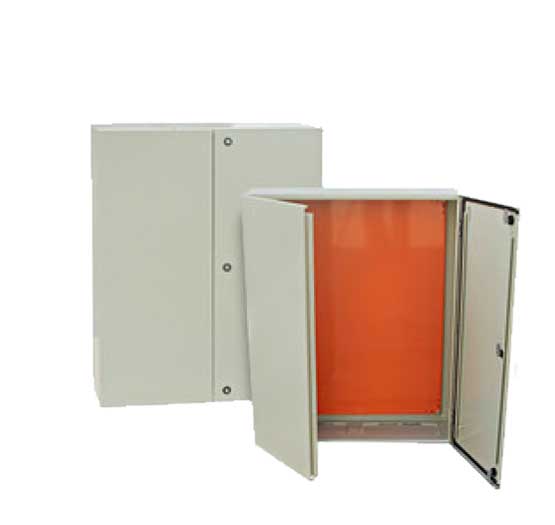

Cango KG-MED Series Double Door Weatherproof Metal wall mounted Enclosure

Introduction

Cango KG-MED Series Double  Door Weatherproof Metal wall mounted Enclosure is IP65 and NEMA rate to protect against dust,powerfull water jets and mechanical impact.
This wall mounted Enclosure are constructed from steel sheet and have a polyester epoxy powder coated textured gray finish.These metal wall mounted enclosure are suitable
for housing electronic and electrical equipment in harsh enviroment prone to flooding or moisture condition.

Technical Data:

1. Zinc-plated steel panel Body and door is made in 1.2-2.0mm stee sheet.
2. Flat mounting palte or gavanized steel plate in 1.5mm/2.0mm steel sheet finish.
3. Cycle thermosetting epoxypolyester powder coating.
4. Body and door color are RAL7032 or RAL7035
5. Mounting plate is galvanized  or RAL2004 smooth finish.
6. Protection level : IP66(acc. to GB4205-1993 EN60529 and NEMA4)
7. Sealing rubber gasket make high proteciton degree.
8. IK10 Against mechanical Impacts
9. Optional wall mounted or pole mounted

Model Selection(Doulbe Door):

Model	Thickness of plate(mm)
	Enclosure Body	Installation Plate	Door
A Type	1.5mm	2mm	1.5mm
B Type	1.2mm	1.5mm	1.2mm
C Type	1.2mm	1.2mm	1.2mm
D Type	1.0mm	1.0mm	1.2mm

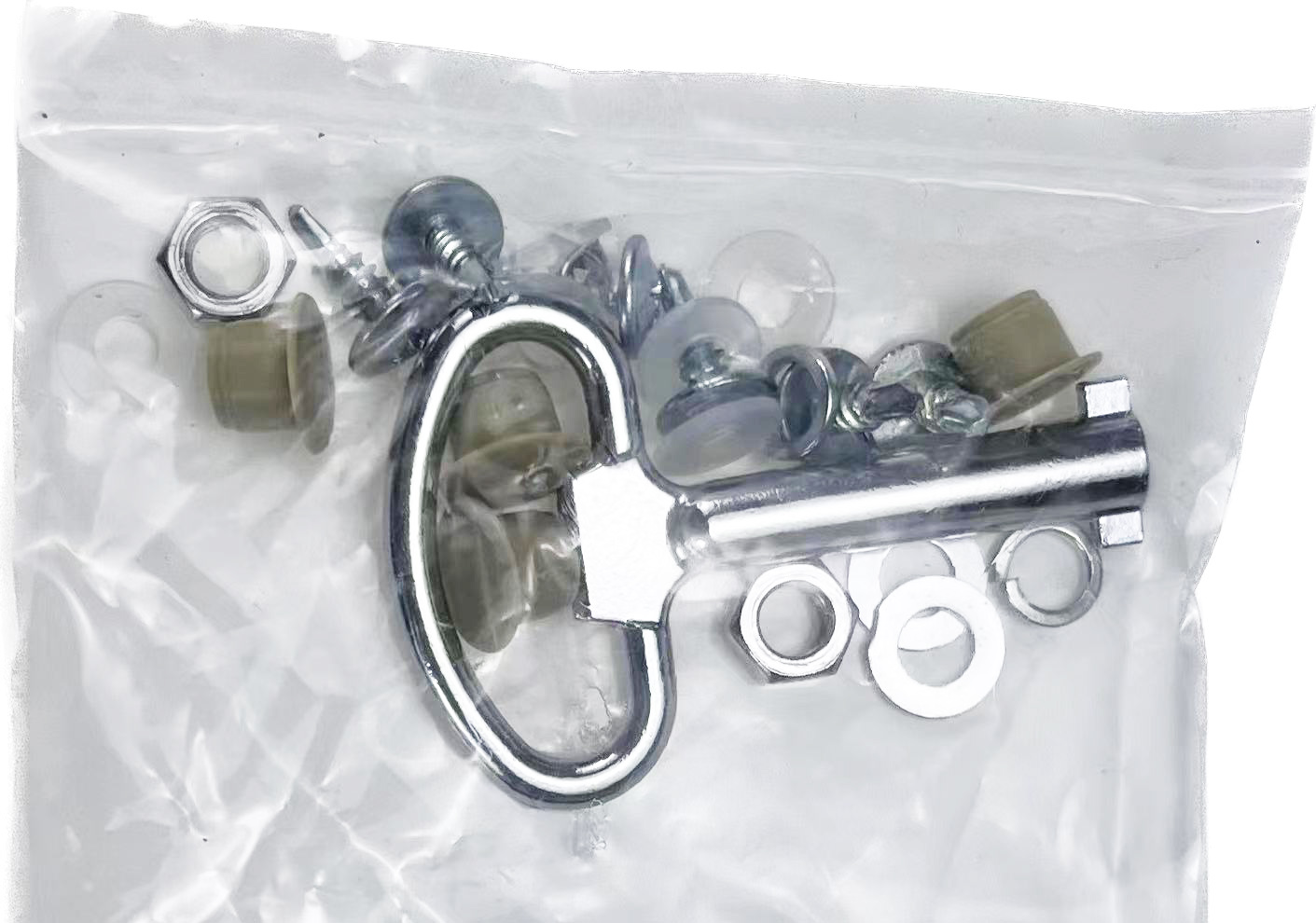

Accessories

1.Mounting Plate
2.Gland plate and gasket
3.Wall fixing brackets and screws
4.Locking round bar key

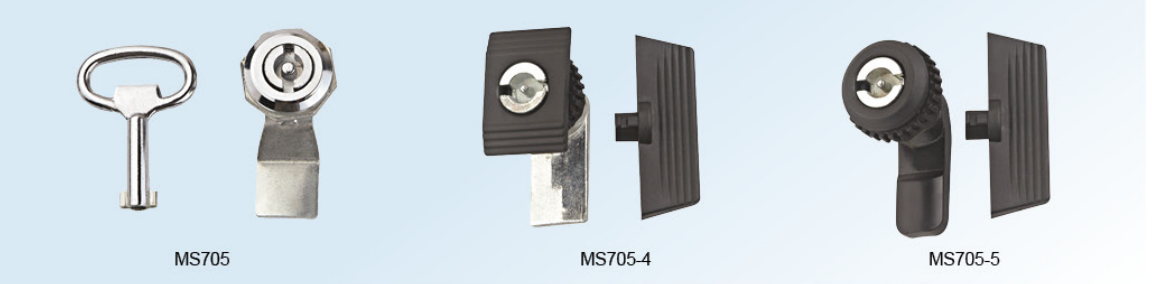

 Lock Choice:
