WL Limited Switch
WL Limited Switch
Features
◎ With strong aluminum cast outer shell
◎ High mechanical strength
◎ Structure preventing oil,water and pressure
◎ Indicating plate with setting position is installed in it,so it is easy to maintain
◎ Various of actuators is taken convenience for using
◎ Built-in contact stand has double-spring,so it has long mechanical life
Specification
| Model | WL-CA2-2 WL-CA12-2-Q | WL-CA32-41-43 | WL-CL | WL-D | WL-D1/D2/D3 | WL-NJ/NJ-30 /NJ-2/NJ-S2 |
| Triggering | 30°convex trigger | 30°convex trigger | Any moving part | At the end | 30°convex trigger | Any moving part |
| Contact operation |  Contacts attract  Contracts separate | |||||
| Maxtrggering speed | 1.3m/s | 0.25m/s | 1.3m/s | |||
| Max restoring force | 1360g | 1200g | 142g | 2720g | 2720g | 120g |
| Min restoring force | 227g | 28g | 910g | 910g | 50g | |
| Weight (kg) | 0.330 | 0.340 | 0.300 | 0.251 | 0.251 | 0.286 |
Characteristics of contact module
| Rated operating characteristics | ~AC-15:A300(Ue=240V,le=3A):1 the=10A --DC-13:Q300(Ue=250V,le=0.27A):comply with IEC60947-5-1 appendix table A,EN⁶0947-1 |
| Rated insulation voltage | Among homopolar terminals:AC 1000V(600V),50/60Hz 1min Between charged metal part and earth wire: AC2000V(1500V),50/60Hz 1min Uimp 2.5KV Among terminals and non-charged metal part:AC2000V, 50/60Hz 1min Uimp 2.5kV |
| Insulation sistance | 100MΩ above(megohmmeter of 500VDC) |
| Operating frequency | 120 times/min |
| Electricallife | 750,000 times |
| Contact resistance | Less than 25MΩ |
Environmental Characteristics
| Normative reference | Product | IEC60947-5-1,EN60947-5-1, UL508,CSAC22-2N°14 |
| Components | EC60204-1,EN60204-1 | |
| Ambient temperature | Run | -10~+80℃ |
| Storage | -40~+80℃ | |
| Vibration resistance | Comply with IEC60068-2-6 | 10-55Hz complex amplitude 1.5mm |
| Shock resistance | Comply with IEC60068-2-27 | 300m/S²以上(约30G以上) Maximum 300m/s²(30G Less than) |
| Degree of protection | IP67 NEMA:3,4,13 | |
| Mechanical life | 15,000,000 times |

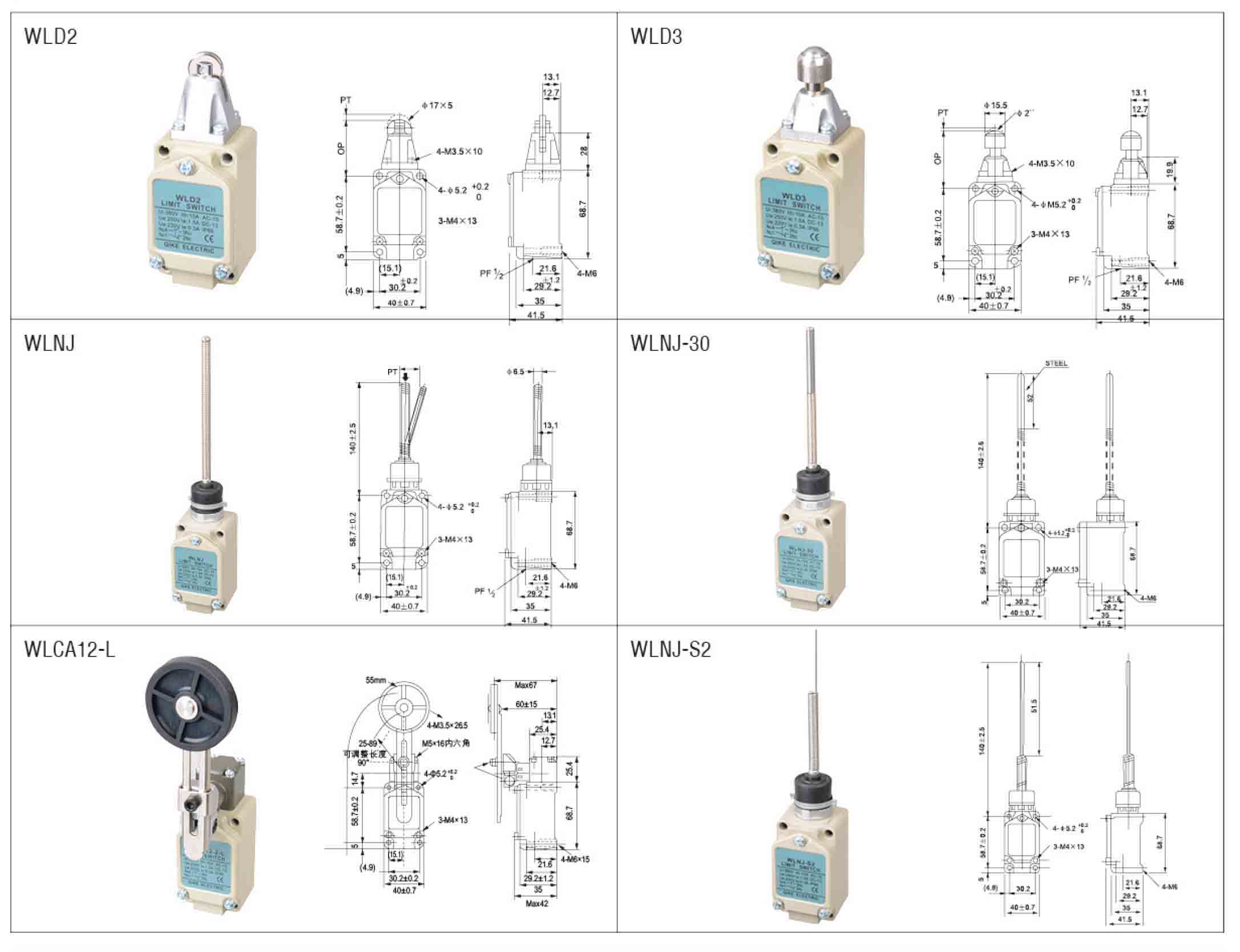

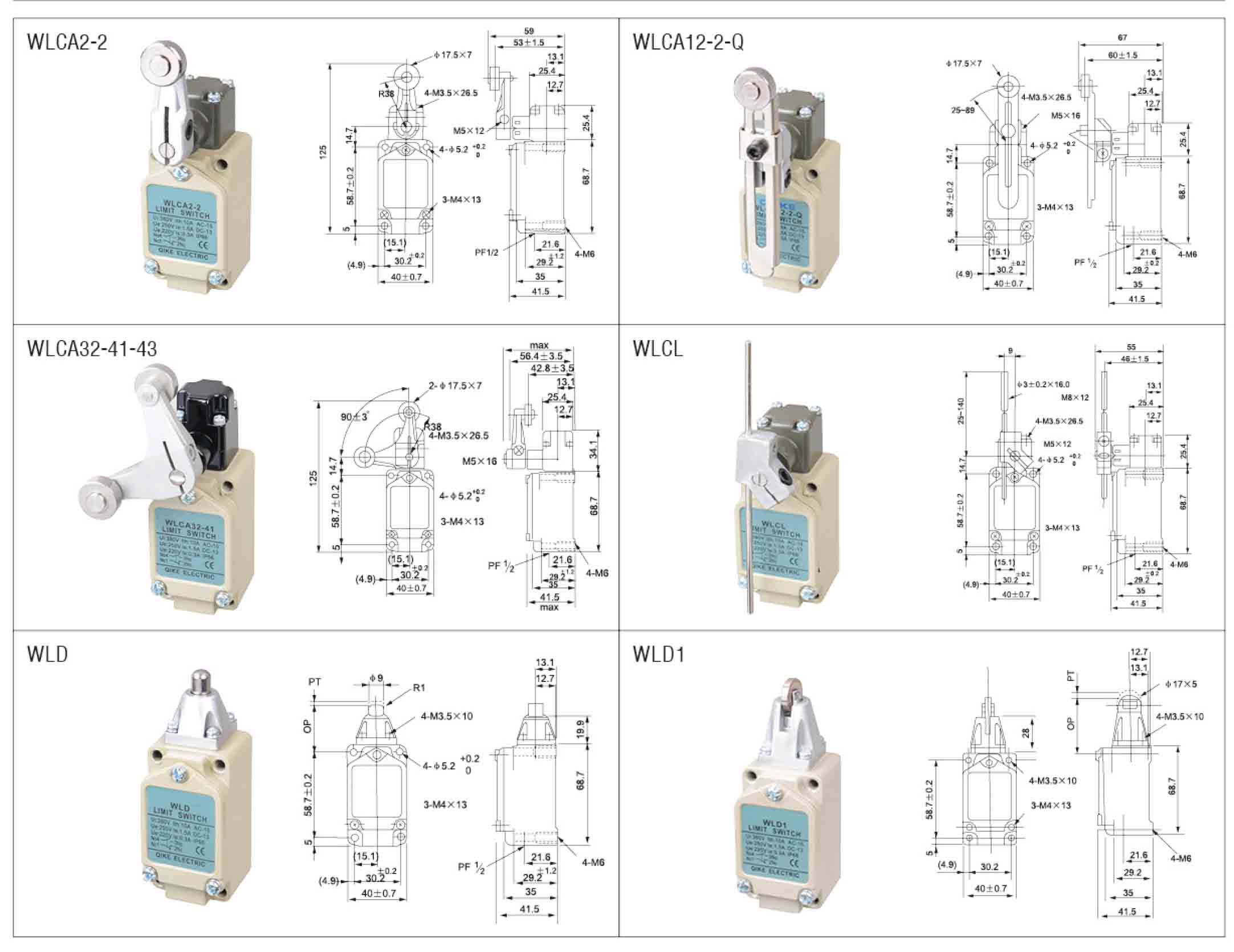

Apperance and dimension
