Wire Joints
● Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
● Feature: Nylon shell, long copper tube, easy to conduct electricity and hold wire tightly.
Wire Joints
Introduction
Shell material: Nylon 66,94V-2.
Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
Feature: Nylon shell, long copper tube, easy to conduct electricity and hold wire tightly.

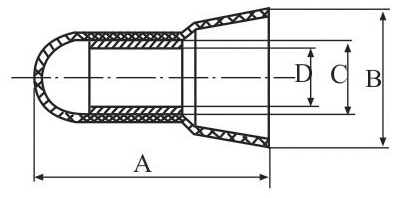

Drawing
Model Selection
| Item No. | A(mm) | W(mm) | D(mm) | Suitable Wires | Packing | ||
|---|---|---|---|---|---|---|---|
| B | C | mm² | AWG | ||||
| WJ-3 | 17.8 | 7.2 | 3.6 | 2.5 | 1.25 | 22-16 | 100PCS & 1000PCS |
| WJ-4 | 21.0 | 8.2 | 4.0 | 2.9 | 2.0 | 16-14 | |
| WJ-5 | 22.5 | 9.0 | 4.8 | 3.9 | 5.5 | 12-10 | |
| WJ-6 | 25.0 | 10.0 | 5.6 | 4.5 | 8.0 | 8 | |
| WJ-7 | 24.2 | 11.0 | 6.5 | 5.4 | 10 | 8-6 | 100PCS & 1000PCS |
| WJ-8 | 25.6 | 11.8 | 7.5 | 6.0 | 13 | 6 | |
| WJ-10 | 29.5 | 13.5 | 9.3 | 7.5 | 16 | 4 | 100PCS |
