TTC-1 Terminal Blocks
● Voltage: 250-450V
● Color: Grey and blue color as standard.
TTC-1 Terminal Blocks
Introduction
Material: PA,Brass,Screw is Brass.
Voltage: 250-450V
Color: Grey and blue color as standard.

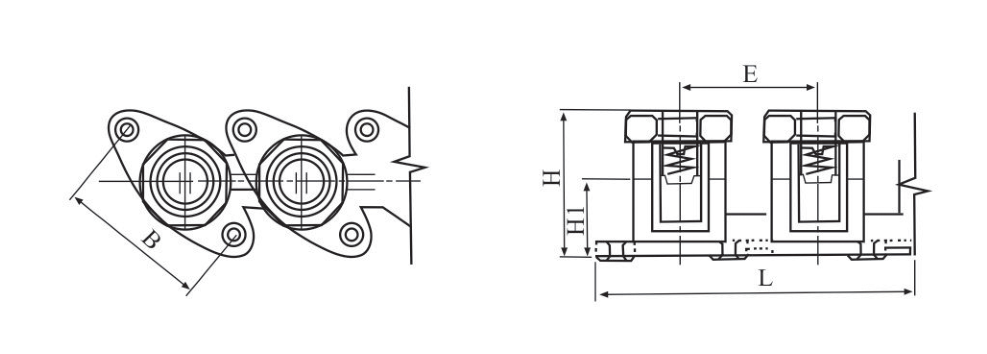

Dimension
Model Selection
| Item No. | Cable Size | L | W | H1 | H2 | Φ | E | Screw Size |
|---|---|---|---|---|---|---|---|---|
| TTC-1-01 | 6mm² | 162 | 20.3 | 21 | 10.4 | 6x3 | 15.5 | M5 |
| TTC-1-02 | 10mm² | 198.5 | 22 | 23.7 | 11.7 | 8.5x4 | 19.5 | M8 |
| TTC-1-03 | 16mm² | 211 | 23.5 | 26 | 13.4 | 10x5 | 20.5 | M9 |
| TTC-1-04 | 25mm² | 222 | 25 | 29.2 | 14.2 | 11x7 | 21.3 | M10 |
| TTC-1-05 | 35mm² | 260 | 28.5 | 33.5 | 18 | 14x8 | 25 | M12 |
