Self-locking Nylon Cable Ties
● Operating temperature: -35C° to 85C°.
● Color: Natural (or white, standard color), UV black and other colors are available as requested.
Self-locking Nylon Cable Ties
Introduction
Cable Ties Material:Nylon 66,94V-2 by UL.Heat-resisting,acid &erosion control, insulate well and not apt to age.
Operating temperature:-35C° to 85C°.
Color:Natural(or white,standard color),UV black and other colors are available as requested.

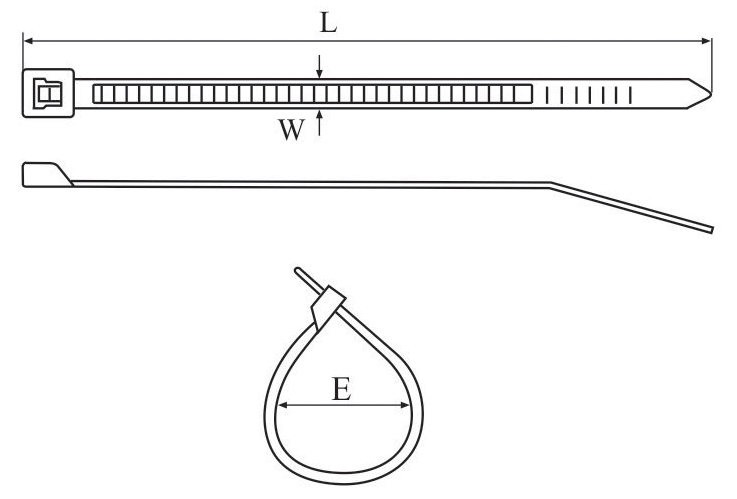

Dimension
Model Selection
| Item No. | L | W (mm) | Bundle Dia. E (mm) | Min.loop Tensile Strength | ||
|---|---|---|---|---|---|---|
| inch | mm | LBS | KGS | |||
| KG-2.5 X 60 | 2 3/8" | 60 | 2.5 | 2-11 | 18 | 8 |
| KG-2.5 X 80 | 3 3/16" | 80 | 2.5 | 2-16 | 18 | 8 |
| KG-2.5 X 100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 |
| KG-2.5 X 120 | 4 3/4“ | 120 | 2.5 | 2-30 | 18 | 8 |
| KG-2.5 X 150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 |
| KG-2.5 X 160 | 6 1/4" | 160 | 2.5 | 2-40 | 18 | 8 |
| KG-2.5 X 200 | 8" | 200 | 2.5 | 3-50 | 18 | 8 |
| KG-3.6 X 120 | 4 3/4" | 120 | 3.6 | 3-30 | 40 | 18 |
| KG-3.6 X 150 | 6" | 150 | 3.6 | 3-35 | 40 | 18 |
| KG-3.6 X 180 | 7" | 180 | 3.6 | 3-42 | 40 | 18 |
| KG-3.6 X 200 | 8" | 200 | 3.6 | 3-50 | 40 | 18 |
| KG-3.6 X 250 | 10" | 250 | 3.6 | 3-65 | 40 | 18 |
| KG-3.6 X 280 | 11" | 280 | 3.6 | 3-70 | 40 | 18 |
| KG-3.6 X 380 | 11 5/8" | 300 | 3.6 | 3-80 | 40 | 18 |
| KG-3.6 X 370 | 14 1/2" | 370 | 3.6 | 3-102 | 40 | 18 |
| KG-4.8 X 120 | 4 3/4" | 120 | 4.8 | 3-24 | 50 | 22 |
| KG-4.8 X 180 | 7" | 180 | 4.8 | 3-42 | 50 | 22 |
| KG-4.8 X 200 | 8" | 200 | 4.8 | 3-50 | 50 | 22 |
| KG-4.8 X 250 | 10" | 250 | 4.8 | 3-65 | 50 | 22 |
| KG-4.8 X 280 | 11" | 280 | 4.8 | 3-70 | 50 | 22 |
| KG-4.8 X 300 | 11 7/8" | 300 | 4.8 | 3-82 | 50 | 22 |
| KG-4.8 X 350 | 13 3/4" | 350 | 4.8 | 3-90 | 50 | 22 |
| KG-4.8 X 370 | 14 1/2" | 370 | 4.8 | 3-102 | 50 | 22 |
| KG-4.8 X 400 | 15 3/4" | 400 | 4.8 | 3-105 | 50 | 22 |
| KG-4.8 X 450 | 17 3/4" | 450 | 4.8 | 3-130 | 50 | 22 |
| KG-4.8 X 500 | 19 11/16" | 500 | 4.8 | 3-150 | 50 | 22 |
| KG-7.2 X 150 | 6" | 150 | 7.2 | 3-33 | 100 | 46 |
| KG-7.2 X 150 | 7" | 180 | 7.2 | 3-33 | 100 | 46 |
| KG-7.2 X 180 | 8" | 200 | 7.2 | 3-50 | 100 | 46 |
| KG-7.2 X 200 | 10" | 250 | 7.2 | 4-63 | 120 | 55 |
| KG-7.2 X 250 | 10 5/8" | 270 | 7.2 | 4-65 | 120 | 55 |
| KG-7.2 X 350 | 11 5/8" | 300 | 7.2 | 4-82 | 120 | 55 |
| KG-7.2 X 400 | 13 3/4" | 350 | 7.2 | 4-90 | 120 | 55 |
| KG-7.2 X 450 | 14 1/2" | 370 | 7.2 | 4-98 | 120 | 55 |
| KG-7.2 X 500 | 15 3/4" | 400 | 7.2 | 4-105 | 120 | 55 |
| KG-7.2 X 750 | 17 3/4" | 450 | 7.2 | 4-118 | 120 | 55 |
| KG-9 X 550 | 19 11/16" | 500 | 7.2 | 4-150 | 120 | 55 |
| KG-9 X 650 | 29 9/16" | 750 | 7.2 | 4-220 | 120 | 55 |
| KG-9 X 700 | 21 11/16" | 550 | 9.0 | 8-160 | 175 | 80 |
| KG-9 X 800 | 25 9/16" | 650 | 9.0 | 8-190 | 175 | 80 |
| KG-9 X 920 | 27 1/2" | 700 | 9.0 | 10-205 | 175 | 80 |
| KG-9 X 1000 | 31 1/2" | 800 | 9.0 | 10-225 | 175 | 80 |
| KG-9 X 1150 | 45 1/4" | 1150 | 9.0 | 10-310 | 175 | 80 |
| KG-9 X 1350 | 53" | 1350 | 9.0 | 10-380 | 175 | 80 |
| KG-12X 300 | 11 5/8" | 300 | 12.0 | 12-82 | 250 | 114 |
| KG-12X 400 | 15 3/4" | 400 | 12.0 | 12-105 | 250 | 114 |
| KG-12X 500 | 19 11/16" | 500 | 12.0 | 12-150 | 200 | 114 |
| KG-12X 650 | 25 9/16" | 650 | 12.0 | 14-190 | 250 | 114 |
| KG-12X 750 | 29 9/16" | 750 | 12.0 | 10-220 | 250 | 114 |
| KG-12X 780 | 30 3/4" | 780 | 12.0 | 14-230 | 250 | 114 |
