SC Cable Lugs
● Surface Finished: Tin Plating
● Color: Silver
SC Cable Lugs
Introduction
Surface Finished: Tin Plating

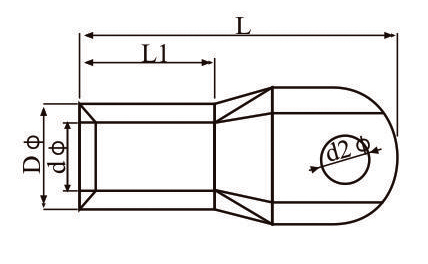

Dimension
Model Selection
| Item No. | d2(mm) | Dimension(mm) | Cable size (mm) | |||
|---|---|---|---|---|---|---|
| dΦ | DΦ | L1 | L | |||
| SC 1.5-5 | 5.3 | 1.9 | 3.35 | 6.5 | 18.0 | 1.5 |
| SC 2.5-4 | 4.3 | 2.6 | 4.0 | 7.0 | 18.0 | 2.5 |
| SC 2.5-4 | 5.3 | 2.6 | 4.0 | 7.0 | 20.0 | 2.5 |
| SC 4-5 | 5.3 | 3.2 | 4.8 | 7.5 | 20.5 | 4 |
| SC 4-6 | 6.4 | 3.2 | 4.8 | 7.5 | 22.0 | 4 |
| SC 6-5 | 5.3 | 3.7 | 5.3 | 8.0 | 24.0 | 6 |
| SC 6-6 | 6.4 | 3.7 | 5.3 | 8.0 | 24.0 | 6 |
| SC 10-6 | 6.4 | 4.5 | 6.3 | 9.0 | 24.0 | 10 |
| SC 10-8 | 8.4 | 4.5 | 6.3 | 9.0 | 25.0 | 10 |
| SC 16-6 | 6.4 | 5.7 | 7.5 | 11.0 | 27.5 | 16 |
| SC 16-8 | 8.4 | 5.7 | 7.5 | 11.0 | 29.5 | 16 |
| SC 25-6 | 6.5 | 7.2 | 9.0 | 13.5 | 34.0 | 25 |
| SC 25-8 | 8.4 | 7.2 | 9.0 | 13.5 | 34.0 | 25 |
| SC 35-8 | 8.4 | 8.5 | 10.8 | 14.5 | 37.0 | 35 |
| SC 35-10 | 10.5 | 8.5 | 10.8 | 14.5 | 38.0 | 35 |
| SC 50-8 | 8.4 | 9.8 | 12.5 | 17.0 | 42.5 | 50 |
| SC 50-10 | 10.5 | 9.8 | 12.5 | 17.0 | 44.0 | 50 |
| SC 70-10 | 10.5 | 11.5 | 14.5 | 19.5 | 50.0 | 70 |
| SC 70-12 | 13.0 | 11.5 | 14.5 | 19.5 | 50.0 | 70 |
| SC 95-10 | 10.5 | 13.7 | 17.0 | 23.5 | 57.0 | 95 |
| SC 120-12 | 13.0 | 15.0 | 19.0 | 26.0 | 63.0 | 120 |
| SC 120-16 | 17.0 | 15.0 | 19.0 | 26.0 | 63.0 | 120 |
| SC 150-12 | 13.0 | 16.7 | 21.0 | 29.0 | 71.0 | 150 |
| SC 150-16 | 17.0 | 16.7 | 21.0 | 29.0 | 71.0 | 150 |
| SC 185-16 | 17.0 | 18.5 | 23.0 | 33.0 | 79.0 | 185 |
| SC 240-16 | 17.0 | 21.0 | 26.0 | 40.0 | 91.0 | 240 |
| SC 240-20 | 21.0 | 21.0 | 26.0 | 40.0 | 92.0 | 240 |
| SC 300-16 | 17.0 | 24.0 | 30.0 | 44.0 | 100.0 | 300 |
| SC 300-20 | 21.0 | 24.0 | 30.0 | 44.0 | 102..0 | 300 |
| SC 400-16 | 17.0 | 27.0 | 34.0 | 46.0 | 102.0 | 400 |
| SC 400-20 | 21.0 | 27.0 | 34.0 | 46.0 | 113.0 | 400 |
| SC 500-16 | 17.0 | 30.0 | 38.0 | 50.0 | 123.0 | 500 |
| SC 500-20 | 21.0 | 30.0 | 38.0 | 50.0 | 123.0 | 500 |
| SC 630-20 | 21.0 | 35.0 | 45.0 | 56.0 | 135.0 | 630 |
| SC 800-22 | 50 | 39.0 | 50.0 | 60.0 | 170.0 | 800 |
| SC 1000-22 | 56 | 44.0 | 56.0 | 87.0 | 200.0 | 1000 |
