RG32

RG Fuse Holder

Share

RG fuse holders comprise a fuse base and carrier, with model dimensions provided for selection. Confirm compatible fuse links and assembly ratings with CANGO for distribution-system orders.

RG Fuse Holders

CANGO is a fuse carrier and base supplier for electrical distributors and distribution-system buyers. Review the listed fuse carrier dimensions and confirm the compatible fuse base, fuse link and assembly ratings for the intended installation.

For importers, distributors, panel builders and project buyers. Specify the exact model and application when requesting a quotation.

Request a Quotation

Key Features

Source-listed selections: RG32, RG63, RG100, RG200.
The original technical tables are retained for model review.
Quotation review should match the exact model, application and required quantity.

Technical Specifications

Type	Dimensions(mm)
Type	A	A1	A2	A3	B	H	H1	H2	H3
RG32	68	57	38	68	26	49	35	19	33
RG63	105.5	92	60	104.5	35	67	46	32	43.7
RG100	129	114	72	129	50	94	75	405	62
RG200	178	170	75	178	71	130	106	44	81

Model Selection

Select the required model or size from the source data: RG32, RG63, RG100, RG200.
Confirm system voltage, AC or DC duty, rated current and fuse-link/holder compatibility with the model-specific data sheet.
For fuse links, confirm operating class, time-current characteristics and required breaking capacity. For holders and switches, confirm the assembly ratings and mounting details.

Product Details

RG Fuse Holders are formed by fuse base and the fuse carrier. They are designed for working at rated voltage up to 660V AC,50/60Hz, rated thermal current is up to 100A. The products comply with IEC60269 standard.They are widely used for protection against overload and short circuit in power distribution systems. And can also be used for main power disconnecting.

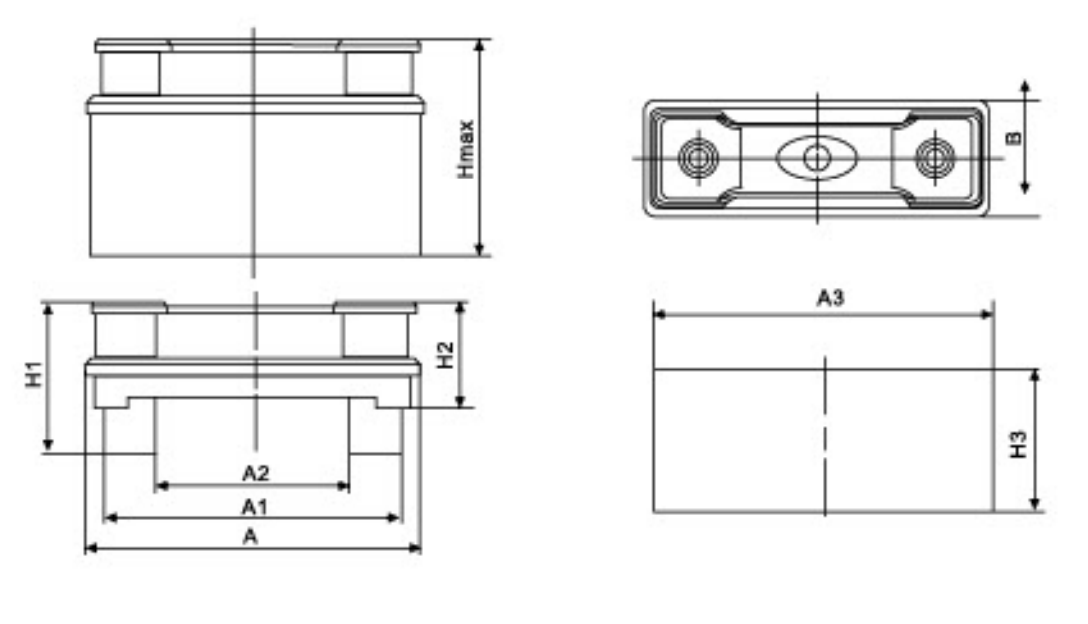

Overall Dimensions and Product Details

Applications

Selection focus: distribution-system fuse-holder sourcing. Confirm that the chosen model and its documented ratings meet the project requirements.

Installation Notes

Installation and replacement should be carried out by qualified electrical personnel following the model-specific instructions. Isolate the supply before work and verify compatibility, dimensions and connection requirements.

FAQ

What information is needed to quote RG Fuse Holders?

Please provide the exact model or size, rated voltage and current requirements, quantity, application and destination market. Include the matching fuse or holder details where applicable.

Can I request OEM branding or custom packing?

Include your logo, packing artwork and quantity in the inquiry. CANGO needs to confirm feasibility, packing details and lead time for the selected product.

Which technical documents should I request before ordering?

Request a model-specific data sheet, dimensions, installation instructions and any compliance documents required by your destination market.

What should I check when choosing a fuse carrier and base wholesale supplier?

Request the exact product data sheet, compatible component details and relevant technical documents. Provide your required ratings, quantity and destination so the supplier can review the selection and quotation requirements.
