PG Metal Cable Glands
● Usage: Used for fixing cables and provide effective protection against dust, oil, water penetrating electrical distribution box, electromechanical control panel and other instruments. Innovative
design for seal and clamp, wide clamp range, strong resistance against tensile strength and thus it can protect cables effectively.
PG Metal Cable Glands
Introduction
Material: Brass with nickel plated.
Usage: Used for fixing cables and provide effective protection against dust, oil, water penetrating electrical distribution box, electromechanical control panel and other instruments. Innovative
design for seal and clamp, wide clamp range, strong resistance against tensile strength and thus it can protect cables effectively.

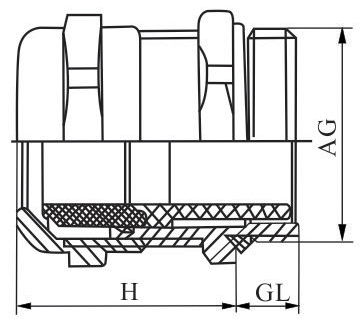

Dimension
Model Selection
Thread size | Cable Range | Outer Diameter of Thread(mm) | Mounting Hole Diameter(mm) | Thread Length GL(mm) | Lengthened Type GL(mm) | Jiont Length H(mm) | Spanner size(mm) |
|---|---|---|---|---|---|---|---|
| PG-7 | 6.5-3 | 12.5 | 12.5-12.7 | 7 | 10 | 19 | 14 |
| PG-9 | 8-4 | 15.2 | 15.2-15.4 | 8 | 10 | 20 | 17 |
| PG-11 | 10-5 | 18.6 | 8.6-18.8 | 8 | 10 | 21 | 20 |
| PG-13.5 | 12-6 | 20.4 | 20.4-20.6 | 8 | 15 | 22 | 22 |
| PG-16 | 14-10 | 22.5 | 22.5-22.7 | 9 | 15 | 23 | 24 |
| PG-19 | 14-10 | 22.5 | 22.5-22.7 | 9 | 15 | 23 | 24 |
| PG-21 | 18-13 | 28.3 | 28.3-28.5 | 9 | 15 | 25 | 24/27 |
| PG-25 | 22-15 | 32 | 32-32.2 | 10 | 15 | 29 | 35 |
| PG-29 | 25-18 | 37 | 37-37.2 | 11 | 15 | 31 | 40 |
| PG-36 | 33-22 | 47 | 47-47.2 | 12 | 15 | 37 | 50 |
| PG-42 | 38-32 | 54 | 54-54.2 | 13 | 15 | 38 | 57 |
| PG-48 | 44-37 | 59.3 | 59.3-59.5 | 14 | 15 | 38 | 65 |
| PG-63 | 54-42 | 72 | 72-72.2 | 15 | 20 | 42 | 77 |
