PG Series Nylon Cable Glands for Electrical Enclosures
The PG nylon cable gland range provides cable entry clamping and sealing for electrical enclosures. The source page identifies nylon 66 and NBR parts, black, white and gray color options, and resistance to water, dust and listed environmental substances; the original PG7 to PG63 table and dimension image are retained.
Product Type
Nylon 66 cable gland with NBR sealing components
Application Focus
Cable entry sealing, clamping and strain relief
Buyer Overview
KANGGE ELECTRICsuppliesPG Series wiring accessories for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.
The PG nylon cable gland range provides cable entry clamping and sealing for electrical enclosures. The source page identifies nylon 66 and NBR parts, black, white and gray color options, and resistance to water, dust and listed environmental substances; the original PG7 to PG63 table and dimension image are retained.
PG Series Quick Selection: Confirm the exact item number, conductor or cable size, material, dimensions, electrical rating where applicable, color, packing and quantity before quotation.
Product Advantages
- •The PG nylon cable gland range retains all source models from PG-7 through PG-63.
- •A waterproof PG7 to PG63 cable gland selection is supported by the retained cable-range and thread-dimension table.
- •The nylon 66 NBR cable gland construction follows the source material description for parts A to E.
- •The 3mm to 50mm cable clamping gland range is covered by the minimum and maximum cable entries in the table.
- •A PG cable gland supplier for electrical enclosures inquiry should include thread size, cable diameter, color, quantity and packing.
Technical Specifications
| Item No. | Thread
Size | Cable Range
(mm) | Thread O.D.
L2(mm) | Thread Length
L1(mm) | Spanner Size
A&E(mm) |
|---|
| PG-7 | PG-7 | 3-6.5 | 12.5 | 9 | 18/16 |
| PG-9 | PG-9 | 4-8 | 15.2 | 9 | 22/19 |
| PG-11 | PG-11 | 5-10 | 18.6 | 9 | 24/22 |
| PG-13.5 | PG-13.5 | 6-11 | 20.4 | 10 | 27/24 |
| PG-16 | PG-16 | 10-13 | 22.5 | 10 | 30/27 |
| PG-19 | PG-19 | 12-15 | 24 | 10 | 30/28 |
| PG-21 | PG-21 | 13-18 | 28.3 | 12 | 35/33 |
| PG-25 | PG-25 | 16-21 | 30 | 12 | 37/35 |
| PG-29 | PG-29 | 18-25 | 37 | 12 | 45/42 |
| PG-36 | PG-36 | 22-32 | 47 | 15 | 58/52 |
| PG-42 | PG-42 | 32-38 | 54 | 18 | 62/58 |
| PG-48 | PG-48 | 37-44 | 59.3 | 18 | 70/64Q |
| PG-63 | PG-63 | 42-50 | 71 | 30 | 83/77 |

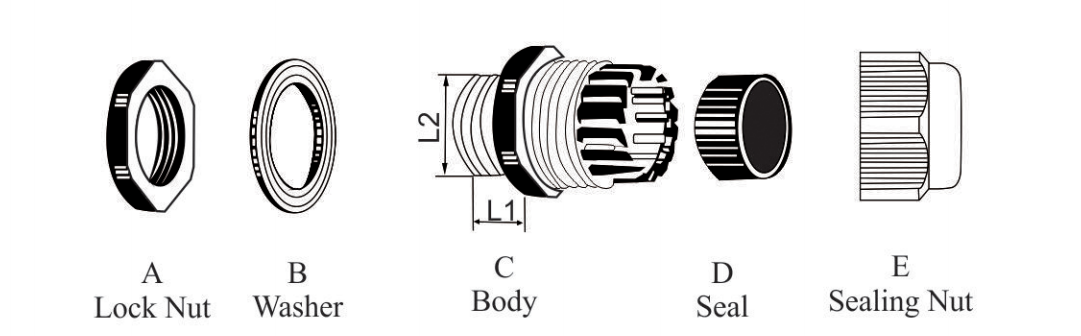

Dimensions
Applications
- •Cable entry sealing in electrical enclosures and junction boxes
- •Panel and machinery cable strain relief
- •Indoor and outdoor wiring installations subject to confirmed enclosure conditions
- •Industrial control equipment and distribution boxes
- •OEM enclosure production and wholesale cable-gland sourcing
Model Selection Guide
- •Match the cable outside diameter to the listed cable range.
- •Select PG-7 through PG-63 according to thread and opening size.
- •Check thread outside diameter, thread length and spanner size.
- •Review the retained dimension drawing before enclosure machining.
- •Provide cable diameter, thread size, color, quantity and destination market with the inquiry.
PG Series FAQ
Which PG sizes are listed?
The original table lists PG-7, PG-9, PG-11, PG-13.5, PG-16, PG-19, PG-21, PG-25, PG-29, PG-36, PG-42, PG-48 and PG-63.
Which cable range is covered?
The retained table covers cable diameters from 3-6.5mm at PG-7 up to 42-50mm at PG-63.
Are the original dimensions retained?
Yes. The source dimension image and complete model table are included below.
What is needed for a PG cable gland quotation?
Send the cable diameter, thread size, color, quantity, packing request and destination market.
