Nylon FDDNY/MDFNY Male and Female Full Insulated Quick Disconnectors
● Terminal Body: Brass
● Max Current: 10A
Nylon FDDNY/MDFNY Male and Female Full Insulated Quick Disconnectors
Introduction
Insulation: Nylon
Terminal Body: Copper
Max Current: 10A
Maximum Temperature Resistance: 75°C

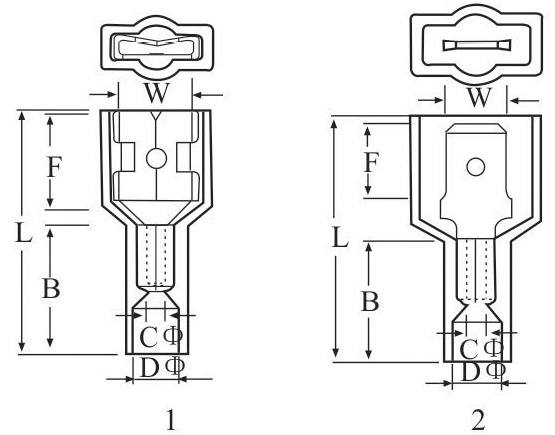

Dimension
Model Selection
| Item No. | Connecting Spec. | Dimension(mm) | Diagram | Cable Size | Color | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | F | L | B | DΦ | CΦ | T | |||||
| FDFNY 1.25-250 | 0.8 x 6.35 | 6.6 | 7.3 | 22.0 | 12.0 | 4.0 | 1.7 | 0.45 | 1 | 22-16 A.W.G 0.5-1.5 mm² | Red |
| MDFNY 1.25-250 | 6.35 | 7.7 | 23.0 | 11.0 | 4.0 | 1.7 | 0.8 | 2 | |||
| Item No. | Connecting Spec. | Dimension(mm) | Diagram | Cable Size | Color | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | F | L | B | DΦ | CΦ | T | |||||
| FDFNY 2-250 | 0.8 x 6.35 | 6.6 | 7.3 | 23.0 | 12.0 | 4.5 | 2.3 | 0.45 | 1 | 16-14 A.W.G 1.5-2.5 mm² | Blue |
| MDFNY 2-250 | 6.35 | 7.7 | 24.0 | 11.0 | 4.5 | 2.3 | 0.8 | 2 | |||
| Item No. | Connecting Spec. | Dimension(mm) | Diagram | Cable Size | Color | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | F | L | B | DΦ | CΦ | T | |||||
| FDFNY 5.5-250 | 0.8 x 6.35 | 6.6 | 7.3 | 23.0 | 12.0 | 5.0 | 3.4 | 0.45 | 1 | 12-10 A.W.G 4-6 mm² | Yellow |
| MDFNY 5.5-250 | 6.35 | 7.7 | 24.0 | 11.0 | 5.0 | 3.4 | 0.8 | 2 | |||
