NT Low voltage fuse and base

Share

NT HRC fuse links and bases for low-voltage electrical installations. Review model and dimension selections, and contact CANGO to confirm ratings and compatible components for your order.

NT Low Voltage Fuse and Base

CANGO is an HRC blade fuse supplier for electrical distributors and power-distribution buyers. Compare the HRC fuse link selections in the source tables and confirm that the blade type fuse fits the intended base and electrical system.

For importers, distributors, panel builders and project buyers. Specify the exact model and application when requesting a quotation.

Request a Quotation

Key Features

Source-listed selections: NT000, NT00, NT0, NT1, NT2, NT3, NT00C.
The original technical tables are retained for model review.
Quotation review should match the exact model, application and required quantity.

Technical Specifications

Model Number	NT000 NT00 NT0 NT1 NT2 NT3
Voltage	690Vac 500Vac
CurreNH	Up to 1250A
Breaking Capacity	120kA
Operating Class	gG Fuse
Standards	GB13539.1/.2 IEC 60269-1/-2
CouNHry Of Origin	China

Model	Rated voltage (Vac)	Rated current (A)	Dimension
Model	Rated voltage (Vac)	Rated current (A)	A	B	C	D	H
NT00C	500/690	4-160	78	52	15	21	53
NT00	500/690	4-160	78	53	15	30	60
NT0	500/690	6-160	125	67	15	30	60
NT1	500/690	32-250	135	72	20	48	65
NT2	500/690	80-400	150	72	25	58	72
NT3	500/690	160-630	150	74	32	67	82

Model Selection

Select the required model or size from the source data: NT000, NT00, NT0, NT1, NT2, NT3, NT00C.
Confirm system voltage, AC or DC duty, rated current and fuse-link/holder compatibility with the model-specific data sheet.
For fuse links, confirm operating class, time-current characteristics and required breaking capacity. For holders and switches, confirm the assembly ratings and mounting details.

Product Details

NT low voltage H.R.C.fuse is designed with small size,less weight,low consumption but high breaking capacity,This product has been widely used in overload and short circuit protection of electnc installations. This product conforms to I EC60269 and VDE0636 standards with all of the rating at the world advanced level.

Overall Dimensions and Product Details

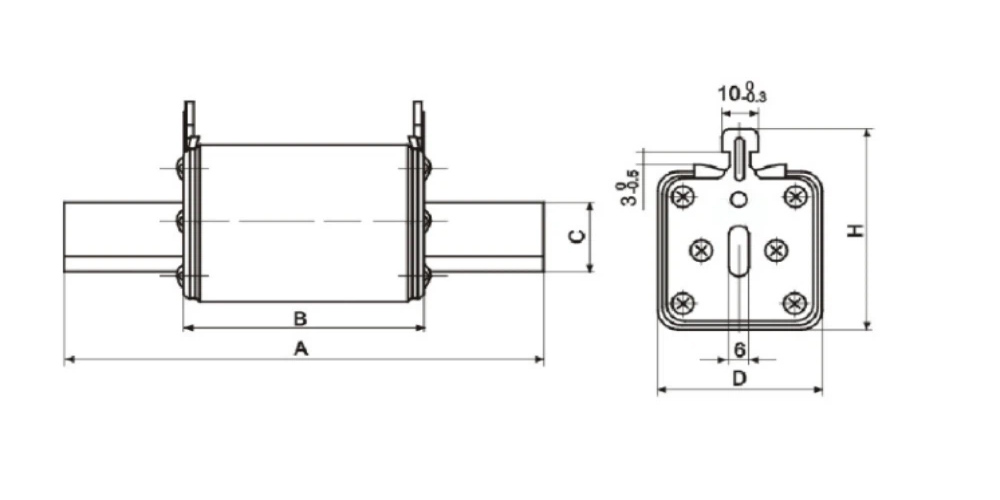

NT Low Voltage Fuse and Base dimension drawing

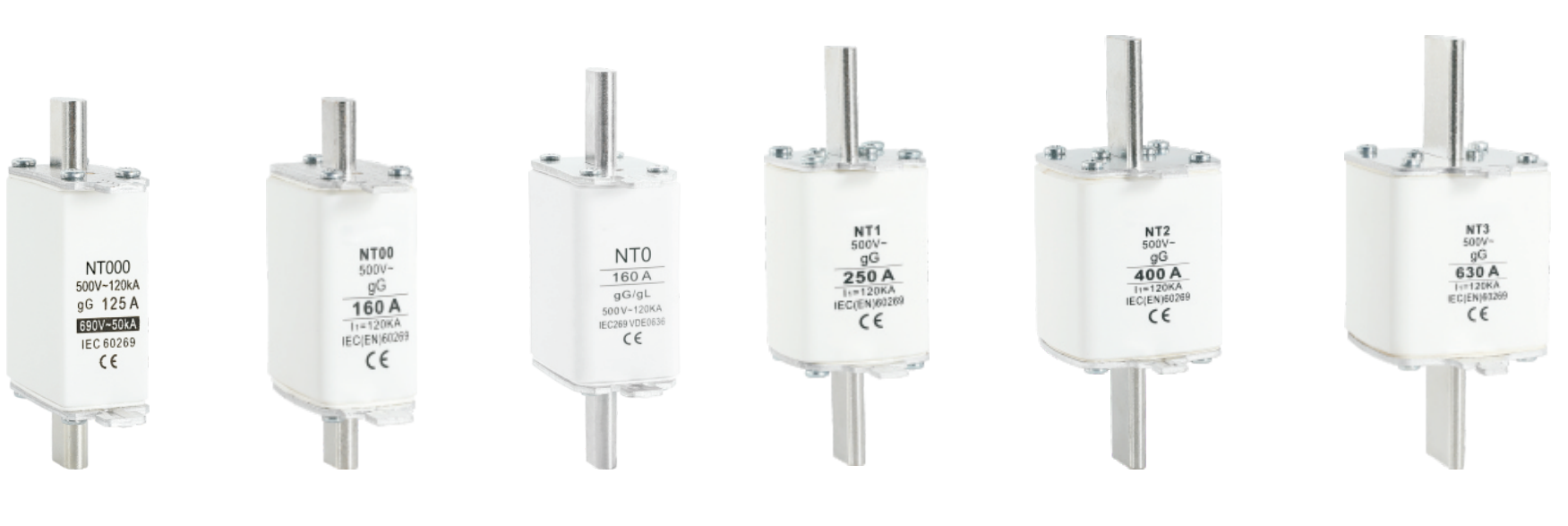

NT Low Voltage Fuse and Base product range

Applications

Selection focus: low-voltage electrical installations. Confirm that the chosen model and its documented ratings meet the project requirements.

Installation Notes

Installation and replacement should be carried out by qualified electrical personnel following the model-specific instructions. Isolate the supply before work and verify compatibility, dimensions and connection requirements.

FAQ

What information is needed to quote NT Low Voltage Fuse and Base?

Please provide the exact model or size, rated voltage and current requirements, quantity, application and destination market. Include the matching fuse or holder details where applicable.

Can I request OEM branding or custom packing?

Include your logo, packing artwork and quantity in the inquiry. CANGO needs to confirm feasibility, packing details and lead time for the selected product.

Which technical documents should I request before ordering?

Request a model-specific data sheet, dimensions, installation instructions and any compliance documents required by your destination market.

What should I check when choosing a HRC blade fuse wholesale supplier?

Request the exact product data sheet, compatible component details and relevant technical documents. Provide your required ratings, quantity and destination so the supplier can review the selection and quotation requirements.
