NH Low Voltage Fuse and Base

Share

SHORT DESCRIPTION: NH fuse links and bases for industrial power-distribution sourcing. Compare listed sizes and dimensions, then confirm the operating class, electrical ratings and matching base with CANGO.

NH Low Voltage Fuse and Base

CANGO is an NH fuse link supplier for distributors and industrial project buyers. Select the blade fuse link and matching NH fuse base together, checking the required fuse size, operating class and assembly ratings against the model-specific data.

For importers, distributors, panel builders and project buyers. Specify the exact model and application when requesting a quotation.

Request a Quotation

Key Features

Source-listed selections: NH000, NH00, NH0, NH1, NH2, NH3, NH4, NH00C, HH4.
The original technical tables are retained for model review.
Quotation review should match the exact model, application and required quantity.

Technical Specifications

Model Number	NH000 NH00 NH0 NH1 NH2 NH3 NH4
Voltage	690Vac 500Vac
CurreNH	Up to 1250A
Breaking Capacity	120kA
Operating Class	gG Fuse
Standards	GB13539.1/.2 IEC 60269-1/-2
CouNHry Of Origin	China

Model	Rated voltage (Vac)	Rated current (A)	Dimension
Model	Rated voltage (Vac)	Rated current (A)	A	B	C	D	H
NH00C	500/690	4-160	78	52	15	21	53
NH00	500/690	4-160	78	53	15	30	60
NH0	500/690	6-160	125	67	15	30	60
NH1	500/690	32-250	135	72	20	48	65
NH2	500/690	80-400	150	72	25	58	72
NH3	500/690	160-630	150	74	32	67	82
HH4	400	630-1250	200	87	50	88	114

Model Selection

Select the required model or size from the source data: NH000, NH00, NH0, NH1, NH2, NH3, NH4, NH00C, HH4.
Confirm system voltage, AC or DC duty, rated current and fuse-link/holder compatibility with the model-specific data sheet.
For fuse links, confirm operating class, time-current characteristics and required breaking capacity. For holders and switches, confirm the assembly ratings and mounting details.

Product Details

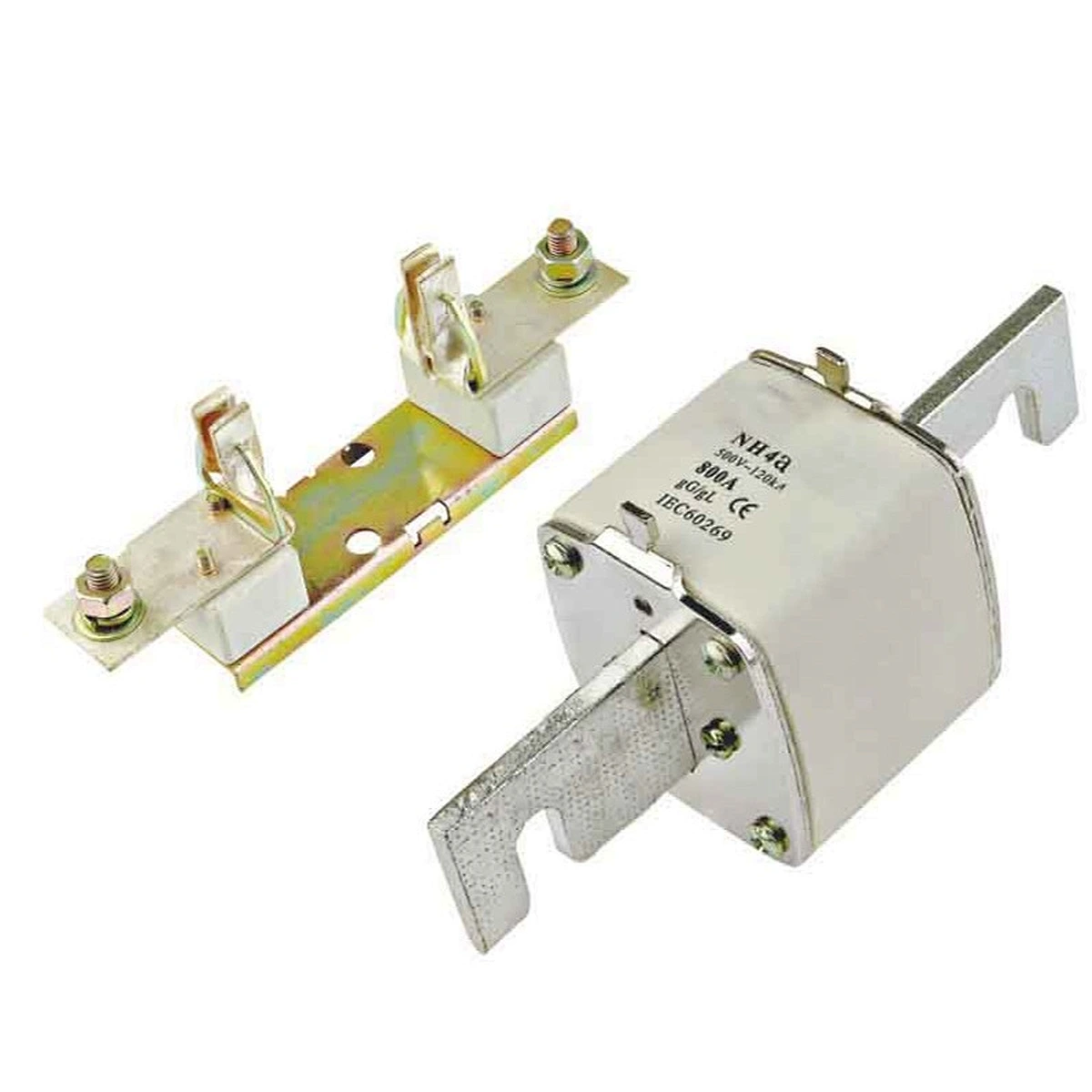

NH/NT Blade type fuse-links aM class are for motor protection.These high breaking capacity fuse-links are intended for short circuit protection in motors, transformer and other load with high inrush current. There is a standard visual indicator on the top end,and an optional on the front side.This series fuses comprises fuses from size NH000 up to NH4, with rated currents up to 1250A,rated voltage up to 690V.

Overall Dimensions and Product Details

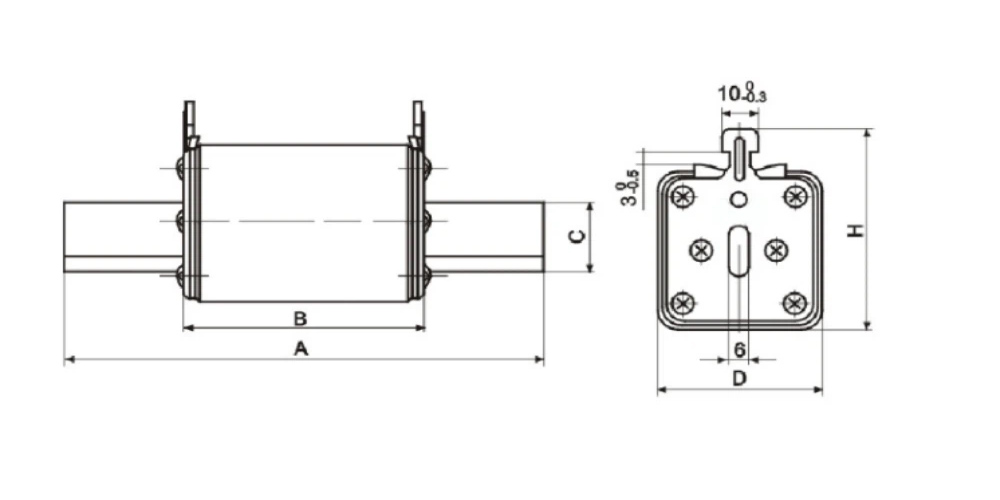

NH Low Voltage Fuse and Base dimension drawing

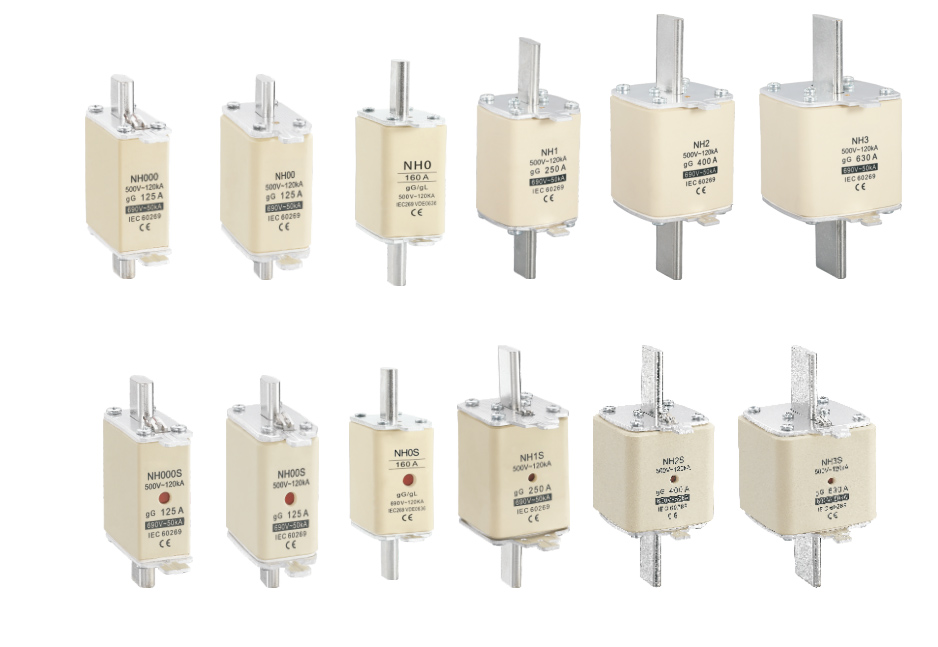

NH Low Voltage Fuse and Base product range

Applications

Selection focus: industrial power distribution. Confirm that the chosen model and its documented ratings meet the project requirements.

Installation Notes

Installation and replacement should be carried out by qualified electrical personnel following the model-specific instructions. Isolate the supply before work and verify compatibility, dimensions and connection requirements.

FAQ

What information is needed to quote NH Low Voltage Fuse and Base?

Please provide the exact model or size, rated voltage and current requirements, quantity, application and destination market. Include the matching fuse or holder details where applicable.

Can I request OEM branding or custom packing?

Include your logo, packing artwork and quantity in the inquiry. CANGO needs to confirm feasibility, packing details and lead time for the selected product.

Which technical documents should I request before ordering?

Request a model-specific data sheet, dimensions, installation instructions and any compliance documents required by your destination market.

What should I check when choosing a NH fuse link wholesale supplier?

Request the exact product data sheet, compatible component details and relevant technical documents. Provide your required ratings, quantity and destination so the supplier can review the selection and quotation requirements.
