MKC-02

MKC-02 Voltage Monitoring Device

MKC-02 Phase and Voltage Monitoring Relay for industrial control panels. Contact CANGO for confirmed specifications, model selection and quotation.

Timer Relay / Industrial Control Relay

MKC-02 Voltage Monitoring Device

The MKC-02 voltage monitoring relay supervises overvoltage and undervoltage conditions using adjustable upper and lower thresholds. An adjustable delay allows the voltage-monitoring response to be configured for the electrical control system.

Model

MKC-02

Product Type

Phase and Voltage Monitoring Relay

Application Focus

Three-phase supply monitoring and equipment-protection circuits

MKC-02 Phase and Voltage Monitoring Relay product image

Buyer Overview

KANGGE ELECTRIC supplies the MKC-02 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

MKC-02 Quick Selection: Confirm the exact model, supply or coil voltage, timing or current setting, contact arrangement, mounting method, application and quantity before quotation.

Product Advantages

•Adjustable overvoltage monitoring uses the listed Umax setting range of (1.05-1.30) x Vin.
•Adjustable undervoltage monitoring uses the listed Umin setting range of (0.70-0.95) x Vin.
•A voltage monitor with adjustable delay allows the timing setting to be reviewed with the application; confirm the delay unit from the device documentation.
•The rail-mounted voltage relay can also be surface mounted, and its rated operating frequency is 50/60Hz.

Technical Specifications

Rated Voltage (Vin)	Look at the label of the device
Rated Frequency	50/60Hz
Voltage Adjustment(L-L)	Umax(1.05-1.30)×Vin
Voltage Adjustment(L-L)	Umin:(0.70-0.95)×Vin
Delay Time	0.1-10sn.min.(adjustable)
Output Contact	1C/O,BA,2000VA,cosΦ)=1
Set Point Hysteresis	%3
Ambient Temperature	-5℃+50℃
Installation	Suftace mounted or rail-mounted
Protection Class	IP 20

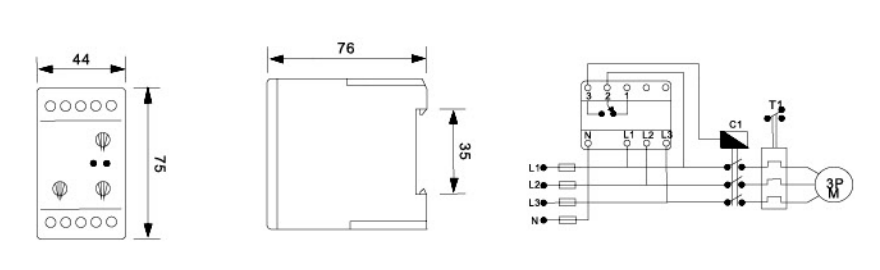

Dimensions and Original Product References

MKC-02 Phase and Voltage Monitoring Relay original technical reference

Applications

•Three-phase supply monitoring and equipment-protection circuits
•Low-voltage electrical control and automation projects
•OEM equipment and control-panel assembly
•Replacement and maintenance selection based on the exact model
•B2B supply for importers, distributors, contractors and project buyers

Model Selection Guide

•Confirm the complete model and required function before quotation.
•Check the original technical table for available operating parameters and configuration options.
•Verify the control voltage or supply voltage, contact arrangement and wiring method when applicable.
•Confirm the mounting method, application conditions and required accessories.
•Send the selected model, project requirements, quantity and destination market for technical review.

MKC-02 FAQ

What is the MKC-02 product used for?

It is intended for three-phase supply monitoring and equipment-protection circuits. Confirm suitability against the original technical data and project circuit.

How should buyers select the MKC-02 model?

Compare the confirmed source table with the required voltage, function, contact or output configuration, mounting method and application.

Can CANGO support B2B and OEM requirements?

Buyers can send the exact model, technical requirements, order quantity, branding or packing request and destination market for review.

What is needed for a MKC-02 quotation?

For a MKC-02 quotation, provide the required parameters, wiring or mounting details, quantity and destination market.

Send Inquiry

For a MKC-02 quotation, send the selected model, supply or coil voltage, timing or current requirement, contact configuration, mounting method, quantity and destination market. Our team can review the retained technical table with your project requirements.
