MK-06P

MK-06P Phase Failure and Phase Sequence Relay

MK-06P phase failure and sequence relay monitors listed 120V, 220V, 380V or 440V AC systems. Contact CANGO for wiring data and quotation.

Timer Relay / Industrial Control Relay

MK-06P Phase Failure and Phase Sequence Relay

The MK-06P phase failure and sequence relay supervises incoming three-phase power for motor and machinery controls. A changeover output provides the control signal, with three-wire or four-wire connections determined by the selected voltage version.

Model

MK-06P

Product Type

Three-phase phase-failure and phase-sequence monitoring relay

Application Focus

Phase-loss and phase-sequence monitoring for industrial equipment

MK-06P phase failure and phase sequence relay

Buyer Overview

KANGGE ELECTRIC supplies the MK-06P series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

MK-06P Quick Selection: Confirm the exact model, rated voltage, three-wire or four-wire connection, output-contact requirement, application and quantity before quotation.

Product Advantages

•For three-phase supply supervision, the specified frequency is 50/60Hz and the operating range is (0.9-1.1) x Un.
•This phase monitor with changeover contact provides one C/O output with an 8A, 2000VA resistive-load rating.
•The three-wire four-wire phase relay options distinguish 380V/440V systems from the listed 120V/220V systems with neutral.
•The 220V AC phase protection relay version requires a three-phase plus neutral, four-wire connection.

Technical Specifications

Rated Voltage(Un)	220V AC	3 phase+neutral:4 wires connection
	120V AC	3 phase+neutral:4 wires connection
	380V AC	3 phase:3 wires connection
	440V AC	3 phase:3 wires connection
Operating Range		(0.9-1.1)×Un
Rated Frequence		50/60Hz
Output contacts		1 C/O with 8A 2000VA(For resistive load)
Ambient Temperature		-5℃to+50℃
Protection Class		IP 20

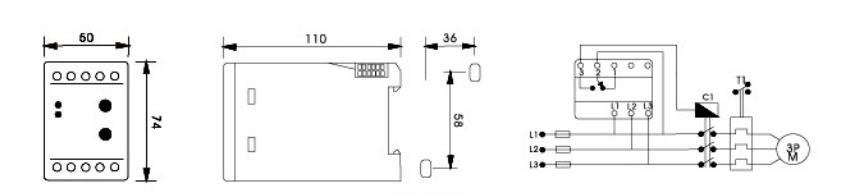

Dimensions and Original Product References

MK-06P phase monitoring relay original connection diagram

Applications

•Industrial three-phase supply monitoring
•Phase-loss and phase-sequence supervision
•Motor-control and machine-control panels
•Electrical equipment protection circuits
•MK-06P control relay supplier projects for distributors and OEM panel builders

Model Selection Guide

•Confirm the required rated-voltage option from the retained table.
•Match the system to the listed three-wire or four-wire connection.
•Review the original operating range and 50/60Hz frequency.
•Confirm the changeover-contact requirement for the control circuit.
•Provide voltage, wiring arrangement, application and quantity for quotation.

MK-06P FAQ

Which rated voltages are listed for MK-06P?

The retained source table lists 120V, 220V, 380V and 440V AC options.

Which wiring arrangement is shown for 380V AC?

The 380V AC row lists a three-phase, three-wire connection.

What output-contact data are shown?

The table lists one changeover contact with 8A and 2000VA for a resistive load.

What should buyers send for an MK-06P quotation?

For an MK-06P control relay supplier inquiry, send the rated voltage, wiring system, application and quantity.

Send Inquiry

For a MK-06P quotation, send the exact model, rated voltage, three-wire or four-wire connection, output-contact requirement, quantity and destination market. Our team can review the retained technical table with your project requirements.
