MG type Nylon Cable Glands
● Feature: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent.
● Color: Black, white, grey available in other color
MG type Nylon Cable Glands
Introduction

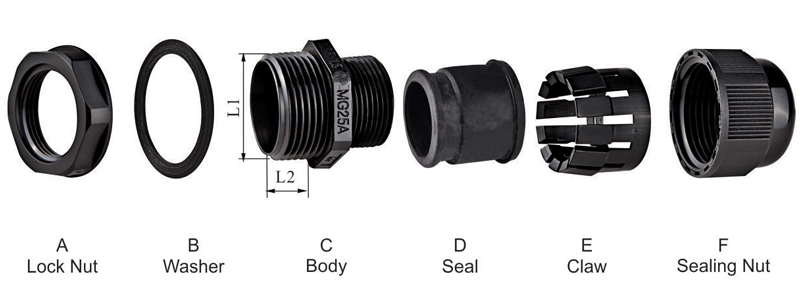

Material: Parts A, C, E are made of nylon66, parts B and D are made of NBR.
Feature: Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and high ability to resist salt, acid, alkali, alcohol, grease and general solvent.
Color: Black, white, grey available in other color
Dimension
Model Selection
| Item No. | Thread Size | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A&E(mm) |
|---|---|---|---|---|---|
| MG12A | MG12 X 1.5 | 4.5-8 | 12 | 9 | 18/19 |
| MG16A | MG16 X 1.5 | 6-10 | 16 | 15 | 22/22 |
| MG16A | MG20 X 1.5 | 9-14 | 20 | 15 | 27/27 |
| MG16A | MG25 X 1.5 | 13-18 | 25 | 15 | 33/33 |
| MG16A | MG32 X 1.5 | 18-25 | 32 | 15 | 41/41 |
| MG16A | MG40 X 1.5 | 24-30 | 40 | 20 | 50/50 |
| MG16A | MG50 X 1.5 | 31-41 | 50 | 22 | 60/62 |
| MG16A | MG63 X 1.5 | 44-51 | 63 | 25 | 75/75 |
| MG16A | MG90 X 1.5 | 66-77 | 90 | 25 | 110/110 |
