KGB1

MG Mini Circuit Breaker

Share

KGB1 series circuit breaker is used in lighting distribution system or motor Distibution system for protecting overload and short-circuit. The product is novel in structure, light in weight, reliable and excellent in performance. It is mainly used in AC 50Hz/60Hz single-pole 240V or two,three,four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on and off switching electric equipment and lighting circuit in normal case. The product complies with GB10963,IEC60898,BS3871.

KGB1 MG Mini Circuit Breaker

Application

KGB1 series MG Mini circuit breaker is used in lighting distribution system or motor Distibution system for protecting overload and short-circuit. The product is novel in structure, light in weight, reliable and excellent in performance. It is mainly used in AC 50Hz/60Hz single-pole 240V or two,three,four-pole 415V circuit for overload and short-circuitprotection as well as for unfrequenton and off switching electric equipment and lighting circuit in normal case. The product complies with GB10963,IEC60898,BS3871

Specification

Rated Temperature		40°C
Rated Temperature		40°C
Rated Voltage		240V/415V AC
Rated Voltage		240V/415V AC
Rated Current		1,2,3,4,6,10,15,16,20,25,32,40,50,63A
Rated Current		1,2,3,4,6,10,15,16,20,25,32,40,50,63A
Electrical Life		6000 times
Electrical Life		6000 times
Mechanical Life		20000 times
Mechanical Life		20000 times
Weight(g)	1P	2P	3P	4P
Weight(g)	102	208	308	408

Standard	Rated Current(A)	POle No.	Voltage (V)	Breaking Capacity（A）
BS3871-1 IEC60898	1 to 40	1	240	4000
BS3871-1 IEC60898	1 to 40	2,3,4	415	4000
IEC60157-1	1 to 40	1	220/240	6000
		2,3,4	220/240	12000
		2,3,4	380/415	6000

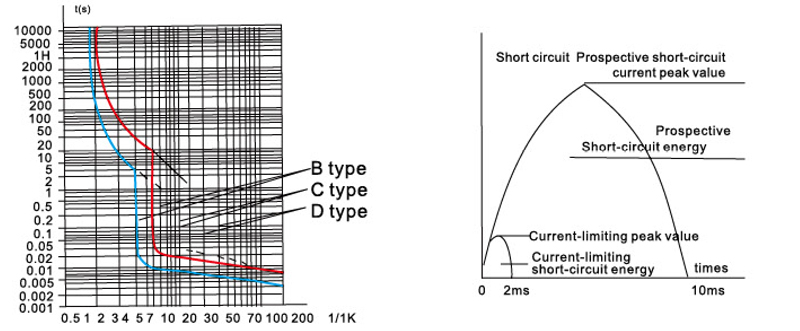

Characteristic Curve

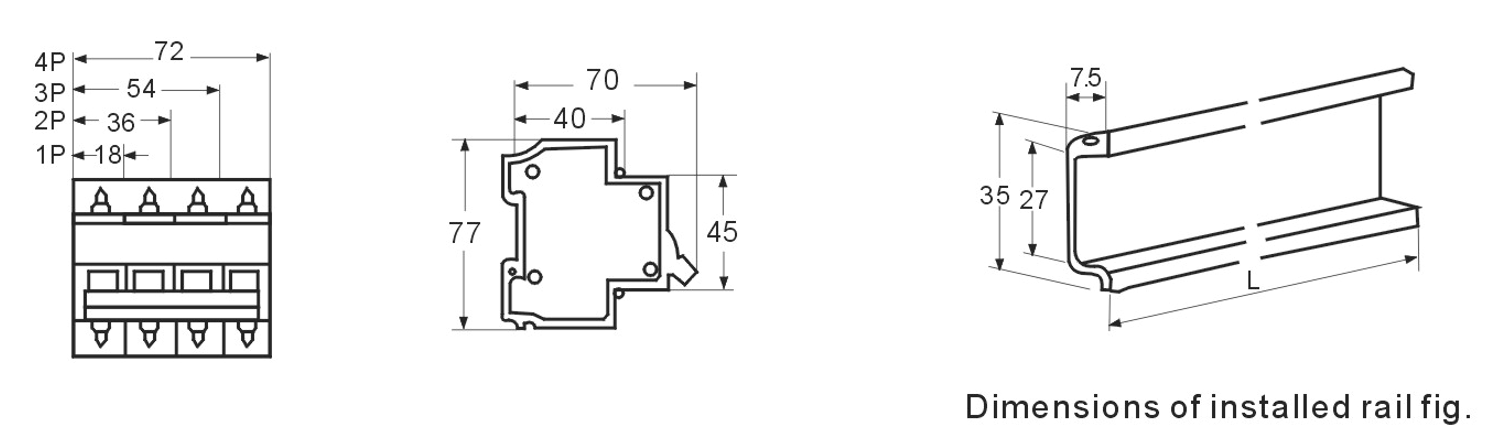

Dimension
