KGW KGT KGU

KGW KGT KGU Mini Circuit Breaker

Share
KGW KGT KGU mini circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce.It is of pleasing outlook & high breaking capacity etc. Its frame and parts adopt plastics of light weight, reliable performance, high inflammable resistance and shock resistance for long service life It is mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, rated voltage of single pole up to 230V. Two, three or four pole up to 400V.It can also be used for an unfrequent switch over of the circuit and illumination under normal conditions.

   KGW KGT KGU Mini Circuit Breaker (MCB)

Application

KGW KGT KGU mini circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce.It is of pleasing outlook & high breaking capacity etc. Its frame and parts adopt plastics of light weight, reliable performance, high inflammable resistance and shock resistance for long service life It is mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, rated voltage of single pole up to 230V. Two, three or four pole up to 400V.It can also be used for an unfrequent switch over of the circuit and illumination under normal conditions.

Specification

TypeKGW____AKGT___AKGU___A
Rated Current6-40A6-63A2-63A
Tripping Curve
B:3-5In
C:5-10In
D:10-20ln		DBC
Breaking Capacity
EN 60 898
IEC 947-2
NEMA AB-1
4.5KA
6KA
10KA/C
10KA/C
10KA
22KA/C
6KA
10KA
22KA/C
Rated Voltage230/400V
Isolating Voltage500V
Electrical Life
0.5 to 32A20.000 times
40 to 63A10,000 times

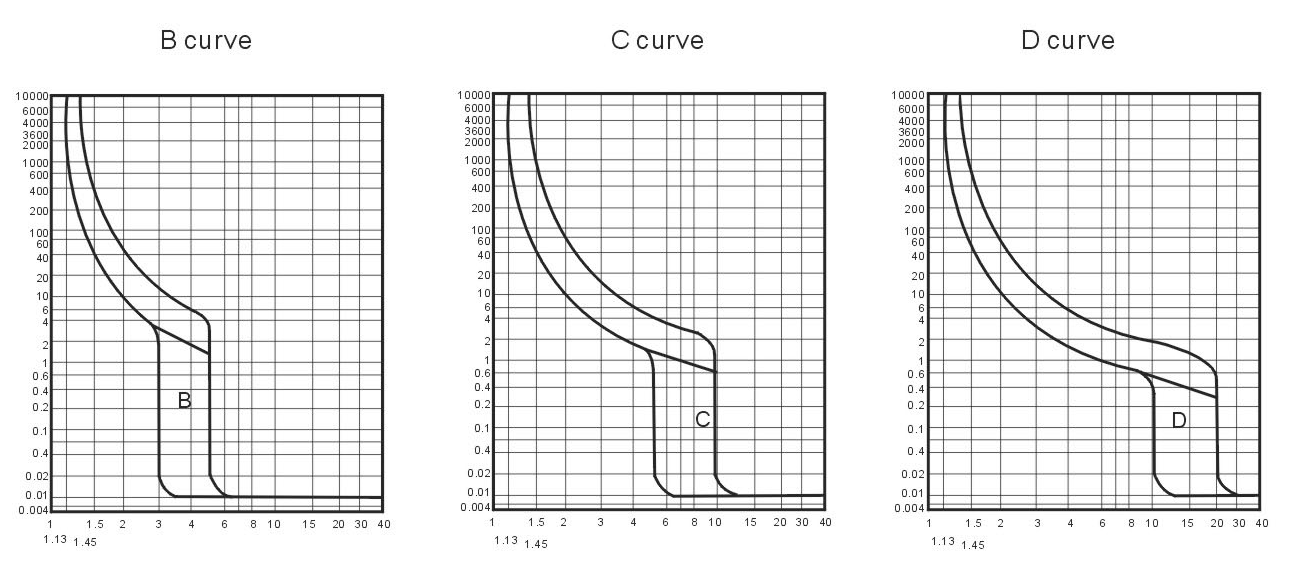

Characteristic Curve(IEC60898)

Mini Circuit Breaker

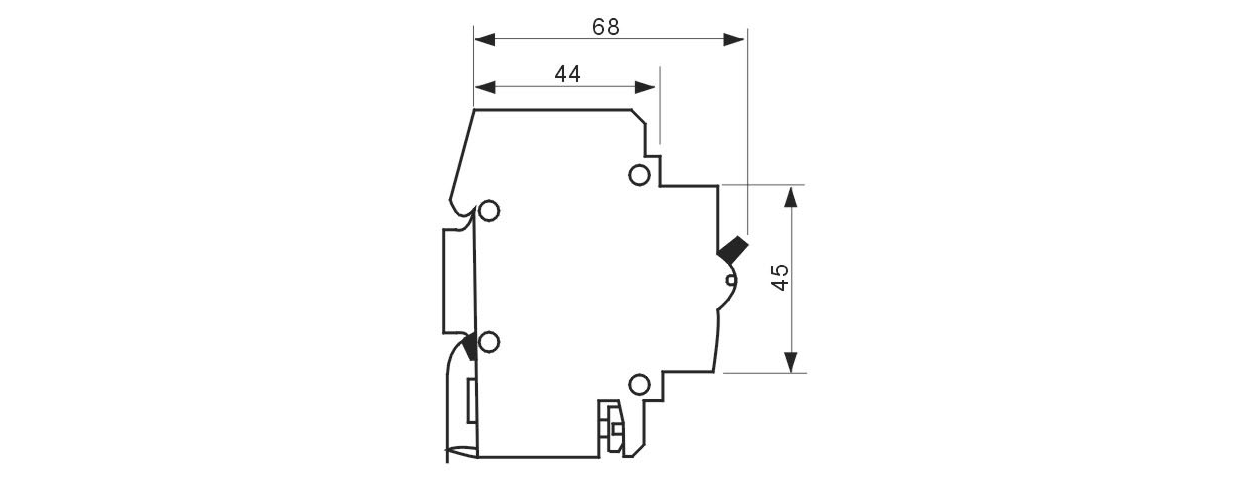

Dimensions

Mini Circuit Breaker
