KGB60

KGB60 Metallized Polypropylene AC Motor Run Capacitor

This product is suitable for equipment,the instrumentand electric fan,washer,electric refrigerator,an irconditioning alternating current machine start and revolution.With a small loss, antimoist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties.

Stabilizer / Power Quality Equipment

KGB60 Metallized Polypropylene AC Motor Run Capacitor

The KGB60 metallized polypropylene film capacitor is designed for AC equipment, instruments, fans, washing machines, refrigerators and air-conditioning motors. The 450V AC motor run capacitor 2uF to 100uF range is retained together with 250V, 400V and 630V options.

Model

KGB60

Product Type

Self-healing metallized polypropylene film capacitor

Application Focus

AC motor running and appliance electrical equipment

KGB60 metallized polypropylene AC motor run film capacitor

Buyer Overview

KANGGE ELECTRIC supplies the KGB60 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

KGB60 Quick Selection: Confirm the exact model, input/output or rated voltage, capacity/current or capacitance, load type, installation dimensions, quantity and packing before quotation.

Product Advantages

•A self healing fan and air conditioner capacitor construction is described with low loss, moisture resistance and long service life.
•The cylindrical film capacitor with plastic or aluminum shell dimensions are retained in the two original drawings.
•The source table lists 250V, 400V, 450V and 630V rated-voltage options.
•Capacity tolerance J (+/-5%) and K (+/-10%) remains available for buyer review.
•The complete capacitance-to-D x H dimension table is retained without changing its original values.

Technical Specifications

Spec	KGB60
Operating Temperature	40℃-70℃
Capacity Range	2μF-100μF
Capacity Tolerance	J( ±5%)K(±10%)
Rated Voltage	250V,400V,450V,630V
Withstand Voltage	AC≥1.75Un 2S(Imax≤1.3lnA)
Withstand Box Voltage	AC≥2000V 2S
Loss Angle	≤0.004(1KHz,20℃))
Insulation Resistance	≥3000S

Type	250V	400V-450W	630V
Capacitance Range(μF)	DXH	DXH	DXH
3	34×50	34×50	34×60
5	34×50	34×50	34×60
6	34×50	34×50	38×70
8	34×50	34×60	38×70
10	34×50	34×60	42×70
12	34×50	38×70	42×70
15	34×60	38×70	42×80
16	34×60	38×70	42×80
20	38×70	42×70	45×90
25	38×70	42×80	45×90
30	42×70	50×100	50×100
35	42×70	50×100	50×120
40	45×90	50×100	50×120
45	45×90	50×100	55×120
50	45×90	50×100	60×120
620	45×90	50×120	60×120
100	50×100

Plastic and Aluminum Shell Dimensions

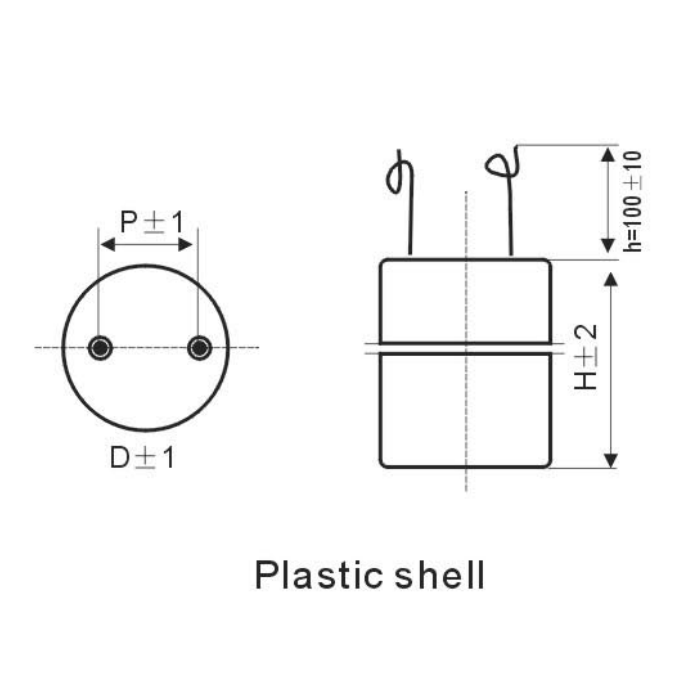

KGB60 original capacitor shell dimension drawing

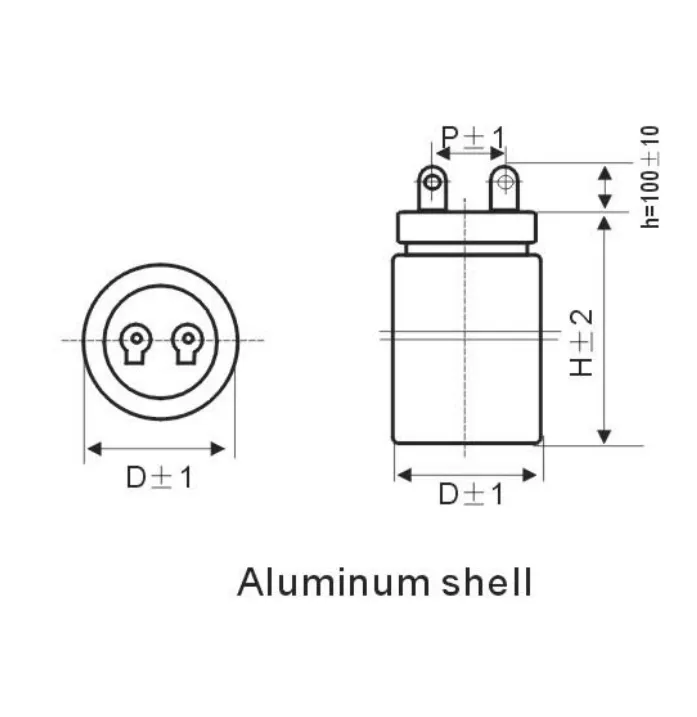

KGB60 original capacitor shell dimension drawing 2

Applications

•Electric fans, washing machines and refrigerators.
•Air-conditioning AC motor running applications.
•Electrical instruments and equipment requiring film capacitors.
•Sourcing from an AC motor capacitor supplier for appliances and OEM assemblies.

Model Selection Guide

•Select capacitance from the original 2uF-100uF specification range.
•Confirm 250V, 400V/450V or 630V rating and the required tolerance class.
•Use the retained D x H table to confirm installation space.
•Specify plastic or aluminum shell style, terminal arrangement, quantity and packing requirement.

KGB60 FAQ

What capacitance range is listed for KGB60?

The original specification table lists 2uF to 100uF.

Which rated voltages are shown?

The source table lists 250V, 400V, 450V and 630V.

Are shell dimensions retained?

Yes. The original plastic-shell and aluminum-shell drawings and the D x H model table are retained.

What should buyers provide for quotation?

Send capacitance, rated voltage, tolerance, shell style, dimensions, terminal requirement, quantity and packing details.

Send Inquiry

For a KGB60 quotation, send the selected model, input/output or rated voltage, capacity/current or capacitance, load and application, installation dimensions, quantity and destination market. Our team can review the retained technical data with your requirement.
