KG5320/KG5410 Thermal Relay

Buyer Overview

KANGGE ELECTRIC supplies the KG5320/KG5410 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

The KG5320/KG5410 modular time relay series provides multi-period delay and cyclic timing options for electrical sequence control. Output choices include timed contacts and combined instantaneous and delayed switching, depending on the selected version.

KG5320/KG5410 Quick Selection: Confirm the exact model, supply or coil voltage, timing or current setting, contact arrangement, mounting method, application and quantity before quotation.

Product Advantages

• •The multi-period time-delay relay option provides selectable output modes identified as A and B in the table.
• •Selectable A/B timer output is described as DPDT in A mode and one instantaneous plus one delayed output in B mode.
• •The SPDT cyclic timer relay option is identified by the circulation-mode specification in the second column.
• •Seconds minutes timing selection is stated for the circulation option; confirm the complete timing range for the selected model and application.

Technical Specifications

Technical Data
Spec	Multi-period Time Delay,A/B Output Mode Selected A Mode:DPDT B Mode:One Inst,One Delay Output	Circulation Mode SPDT Second/Minute Selected
Description	Modular Time Relay	Modular Time Relay
Time Range	1S,2S~1M,2M-1H,2H-30H Customized according to clients'requirements
Functions

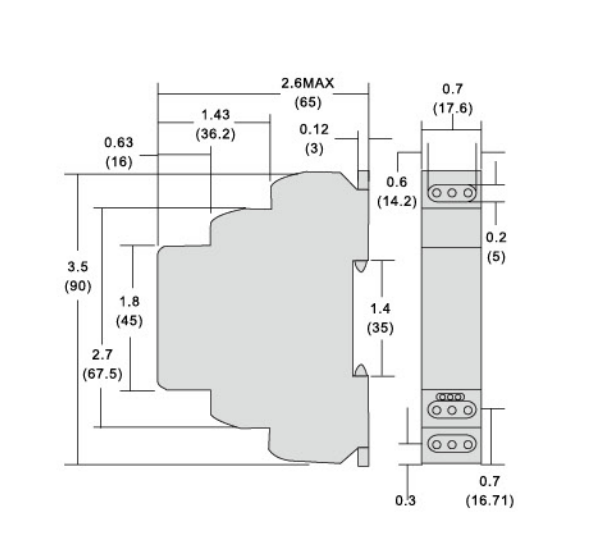

Dimensions and Original Product References

Applications

• •Timed switching and electrical sequence control
• •Low-voltage electrical control and automation projects
• •OEM equipment and control-panel assembly
• •Replacement and maintenance selection based on the exact model
• •B2B supply for importers, distributors, contractors and project buyers

Model Selection Guide

• •Confirm the complete model and required function before quotation.
• •Check the original technical table for available operating parameters and configuration options.
• •Verify the control voltage or supply voltage, contact arrangement and wiring method when applicable.
• •Confirm the mounting method, application conditions and required accessories.
• •Send the selected model, project requirements, quantity and destination market for technical review.

KG5320/KG5410 FAQ

Send Inquiry

For a KG5320/KG5410 quotation, send the selected model, supply or coil voltage, timing or current requirement, contact configuration, mounting method, quantity and destination market. Our team can review the retained technical table with your project requirements.
