KG5150 Thermal Relay

Buyer Overview

KANGGE ELECTRIC supplies the KG5150/KG5210 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

The KG5150/KG5210 time-delay relay series provides trigger-operated timing for electrical control circuits. Single-delay versions with SPDT or DPDT outputs support timed switching and sequence-control tasks in machinery and panel assemblies.

KG5150/KG5210 Quick Selection: Confirm the exact model, supply or coil voltage, timing or current setting, contact arrangement, mounting method, application and quantity before quotation.

Product Advantages

• •The trigger time relay description identifies the product as a timing device; match the trigger and output arrangement to the required circuit.
• •The SPDT DPDT timer relay options are listed in separate specification columns; confirm which contact arrangement applies to the selected model.
• •A second minute selectable timer option is identified for both columns in the specification table.
• •The modular timing relay time-range row includes seconds, minutes and hours; confirm the exact available range and any customization request before ordering.

Technical Specifications

Technical Data
Spec	One Time-Delay,SPDT Second/Minute Selected	One Time-Delay,DPDT Second/Minute Selected
Description	Trigger Time Relay Modular Time Relay	Trigger Time Relay Modular Time Relay
Time Range	1S,2S~1M,2M-1H,2H-30H Customized according to clients'requirements
Functions

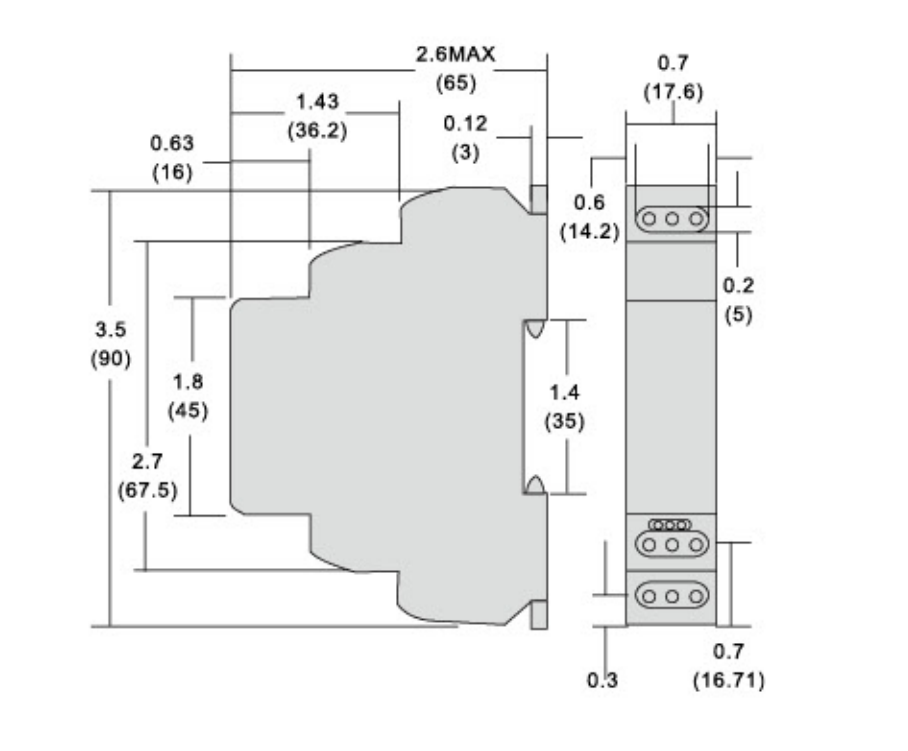

Dimensions and Original Product References

Applications

• •Slim timer relay for control panel timing
• •Industrial automation sequences
• •Machine-control delay functions
• •Motor-control auxiliary timing
• •Compact OEM electrical assemblies

Model Selection Guide

• •Confirm whether an SPDT or DPDT time-delay configuration is required.
• •Select the timing range from the retained table.
• •Match the control supply to the listed voltage option.
• •Confirm the required contact rating and timing function image.
• •Provide model, timing range, voltage, contact configuration and quantity for quotation.

KG5150/KG5210 FAQ

Send Inquiry

For a KG5150/KG5210 quotation, send the selected model, supply or coil voltage, timing or current requirement, contact configuration, mounting method, quantity and destination market. Our team can review the retained technical table with your project requirements.

Browse more products in the Timer Relay, SSR and Thyristor Control Components category.
