JR28-25/JR28-36/JR28-93

KG28 Series Thermal Overload Relay

The KG28 thermal overload relay range protects motor circuits against sustained overloads. Adjustable current-setting bands and contactor-matching options support motor-starter assemblies for machinery and other low-voltage equipment.

Timer Relay / Industrial Control Relay

KG28 Series Thermal Overload Relay (Model KG28-25/KG28-36/KG28-93)

Model

KG28-25/JR28-36/JR28-93

Product Type

Thermal Overload Relay

Application Focus

Motor overload protection and low-voltage control panels

KG28-25/JR28-36/JR28-93 Thermal Overload Relay product image

Buyer Overview

KANGGE ELECTRIC supplies the KG28-25/JR28-36/JR28-93 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

KG28-25/JR28-36/JR28-93 Quick Selection: Confirm the exact model, supply or coil voltage, timing or current setting, contact arrangement, mounting method, application and quantity before quotation.

Product Advantages

•The KG28-25 current setting ranges include bands from 0.1-0.16A through 17-25A; choose the band containing the motor rating.
•Select the motor starter overload relay by its adjustment band and the motor current.
•A KG28 contactor-mounted overload relay must be paired with the corresponding contactor reference.
•For the JR28-36/JR28-93 thermal relay models, confirm the markings and matching specifications; the source table labels these frames KG28-36 and KG28-93.

Technical Specifications

Type	Rated or scale of rated current(A)	Rated current(A)	Model of contactor
KG28-25	0.1-0.16	0.16	9A
	0.16-0.25	0.25	9A
	0.25-0.4	0.4	9A
	0.4-0.63	0.63	9A
	0.63-1.0	1.0	9A
	1.0-1.6	1.6	9A
	1.6-2.5	2.5	9A
	2.5-4	4	9A
	4-6	6	9A
	5.5-8	8	9A
	7-10	10	12A
	9-13	13	18A
	12-18	18	18A
	17-25	25	25A
KG28-36	23-32	32	32A
KG28-36	28-36	36	32A
KG28-93	30-40	40	40A
	37-50	50	50A
	48-65	65	65A
	55-70	70	80A
	63-80	80	80A
	80-93	93	95A
KG28-150	80-104	104	D115
	95-120	120	D115
	110-140	140	D150

Dimensions and Original Product References

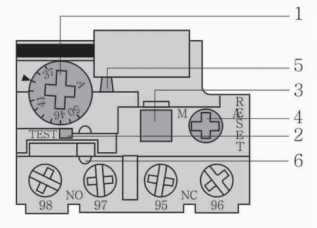

KG28-25/JR28-36/JR28-93 Thermal Overload Relay original technical reference

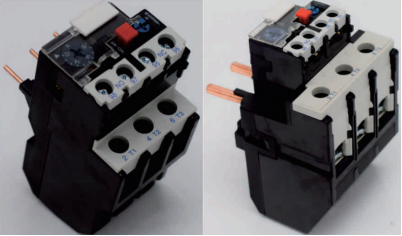

KG28-25/JR28-36/JR28-93 Thermal Overload Relay original technical reference 2

Applications

•Motor overload protection and low-voltage control panels
•Low-voltage electrical control and automation projects
•OEM equipment and control-panel assembly
•Replacement and maintenance selection based on the exact model
•B2B supply for importers, distributors, contractors and project buyers

Model Selection Guide

•Confirm the complete model and required function before quotation.
•Check the original technical table for available operating parameters and configuration options.
•Verify the control voltage or supply voltage, contact arrangement and wiring method when applicable.
•Confirm the mounting method, application conditions and required accessories.
•Send the selected model, project requirements, quantity and destination market for technical review.

KG28-25/JR28-36/JR28-93 FAQ

What is the KG28-25/JR28-36/JR28-93 product used for?

It is intended for motor overload protection and low-voltage control panels. Confirm suitability against the original technical data and project circuit.

How should buyers select the KG28-25/JR28-36/JR28-93 model?

Compare the confirmed source table with the required voltage, function, contact or output configuration, mounting method and application.

Can CANGO support B2B and OEM requirements?

Buyers can send the exact model, technical requirements, order quantity, branding or packing request and destination market for review.

What is needed for a KG28-25/JR28-36/JR28-93 quotation?

For a KG28-25/JR28-36/JR28-93 quotation, provide the required parameters, wiring or mounting details, quantity and destination market.

Send Inquiry

For a KG28-25/JR28-36/JR28-93 quotation, send the selected model, supply or coil voltage, timing or current requirement, contact configuration, mounting method, quantity and destination market. Our team can review the retained technical table with your project requirements.

Contact KANGGE ELECTRIC

Browse more products in the Timer Relay, SSR and Thyristor Control Components category.
