KG-535/KG-545

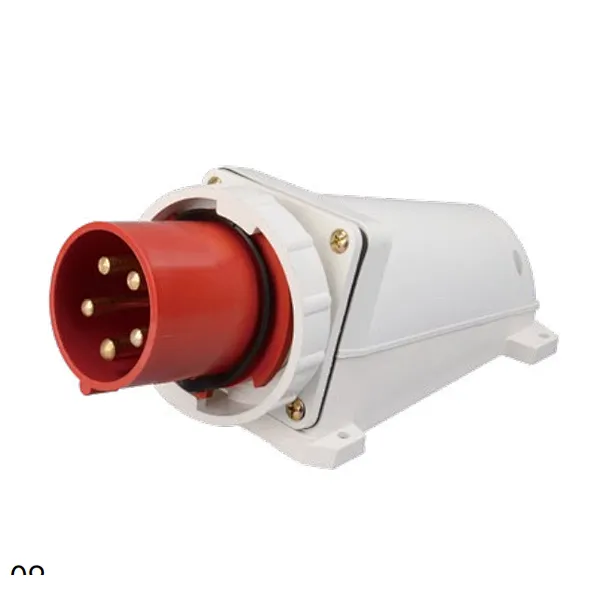

KG-535/KG-545 Wall Mounted Industrial Plug

Share
● Model No.: KG-535/KG-545
● Current:63A/125A
● Voltage:220-380~ 240-415V~
● Number of Pole:3P+N+E
● Protection Rate: IP67
● Earth Contact Position:6h
● Body Material:PA66 Nylon
● Plug Pin Material: Solid Brass Pin
KG-535/KG-545 Wall Mounted Industrial Plug
Specification
● Model No.: KG-535/KG-545
● Current:63A/125A
● Voltage:220-380~ 240-415V~
● Number of Pole:3P+N+E
● Protection Rate: IP67
● Earth Contact Position:6h
● Body Material:PA66 Nylon
● Plug Pin Material: Solid Brass Pin




Appellation

Code

Rated Current

Earth contact position

Rated voltage range

Number of Poles

Protection grade

Plug

KG-535

63A

6h

220-380~

240-415V~

3P+N+E

IP67

Plug

KG-545

125A

6h

220-380~

240-415V~

3P+N+E

IP67

Code

Size(mm)

Cable nominal cross-section area(mm²)

533 industrial plug


a
b
   c

d

e
g
g

KG-535

193
123

153

111

21

288

36

                6-16

KG-545

223

145

185

123

21

317

48

               16-50
