KFL1 Motor Reversing Changeover Switch

KFL1 changeover switches cover 16A to 100A for starting, stopping and reversing three-phase motors in 230-690V AC circuits. Request a CANGO quote.

Switch and Socket / Control Switch

KFL1 Motor Reversing Changeover Switch

The KFL1 changeover switch 16A to 100A series is designed for direct start, stop, forward and reverse control of three-phase asynchronous motors. The original 230V, 400V and 690V ratings, motor-power table, enclosure image and dimension drawing are retained.

Model

KFL1

Product Type

Enclosed three-phase motor changeover switch

Application Focus

Motor start, stop, forward/reverse and circuit transfer control

KFL1 enclosed motor reversing changeover switch

Buyer Overview

KANGGE ELECTRIC supplies the KFL1 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

KFL1 Quick Selection: Confirm the exact model, rated voltage and current, switching function, actuator or cable requirement, installation method, quantity and packing before quotation.

Product Advantages

•The 690V three phase motor reversing switch table covers KFL1-16 through KFL1-100.
•The enclosed motor forward reverse switch supports direct start, stop and direction control as stated on the source page.
•Rated insulated voltage, AC-21 current, AC-23 current and controlled-power values remain unchanged.
•The industrial circuit transfer switch 50Hz application includes transfer from one circuit arrangement to another.
•Original 16A-32A dimensions and the KFL1-100 enclosure reference image are retained.

Technical Specifications

Original Technical Table 1

Type	Heated Current (Ith)A	Rated Insulated Voltage (Ue)V			Rated Voltage (V)	Rated Current (A)AC-21	Rated (A) Current AC-23		Rated Controlled Power (KVV)
KFL1-16	16	690	230	400	690	16	8	5	3
KFL1-25	25	690	230	400	690	25	12	7	5.5
KFL1-32	32	690	230	400	690	32	16	9	7.5
KFL1-40	40	690	230	400	690	40	22	12	11
KFL1-63	63	690	230	400	690	63	40	22	18.5
KFL1-100	100	690	230	400	690	100	62	32	30

Dimensions and Original Product References

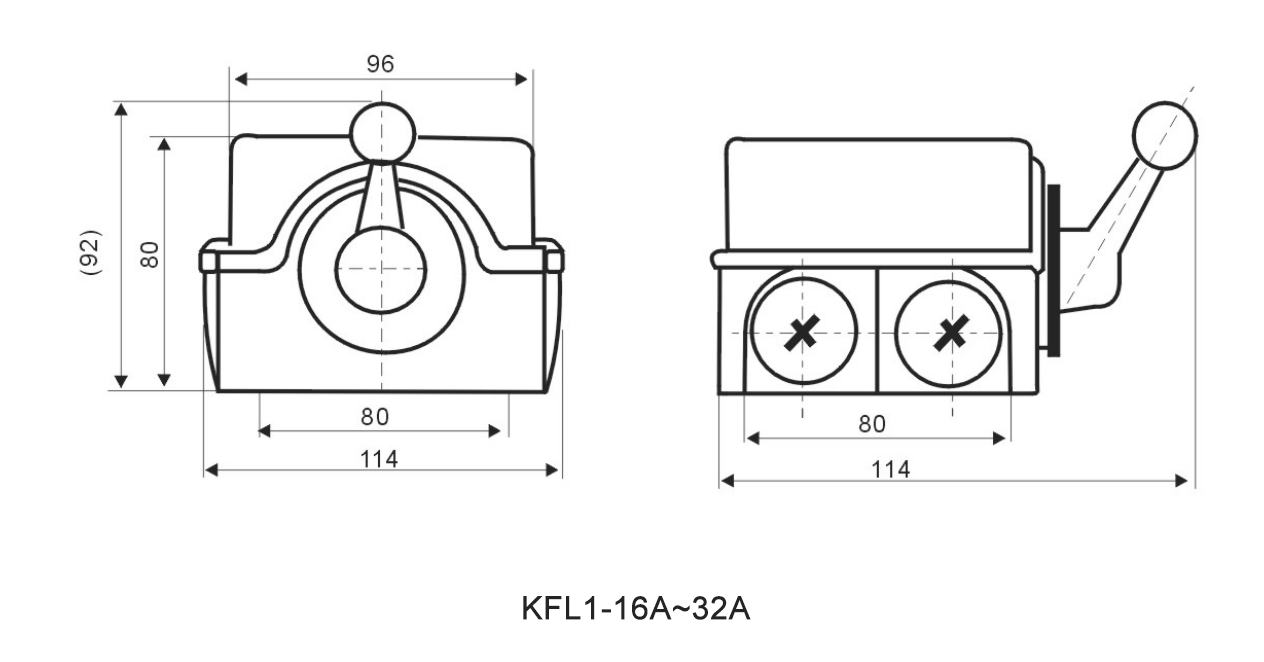

KFL1 changeover switch original dimension and enclosure reference

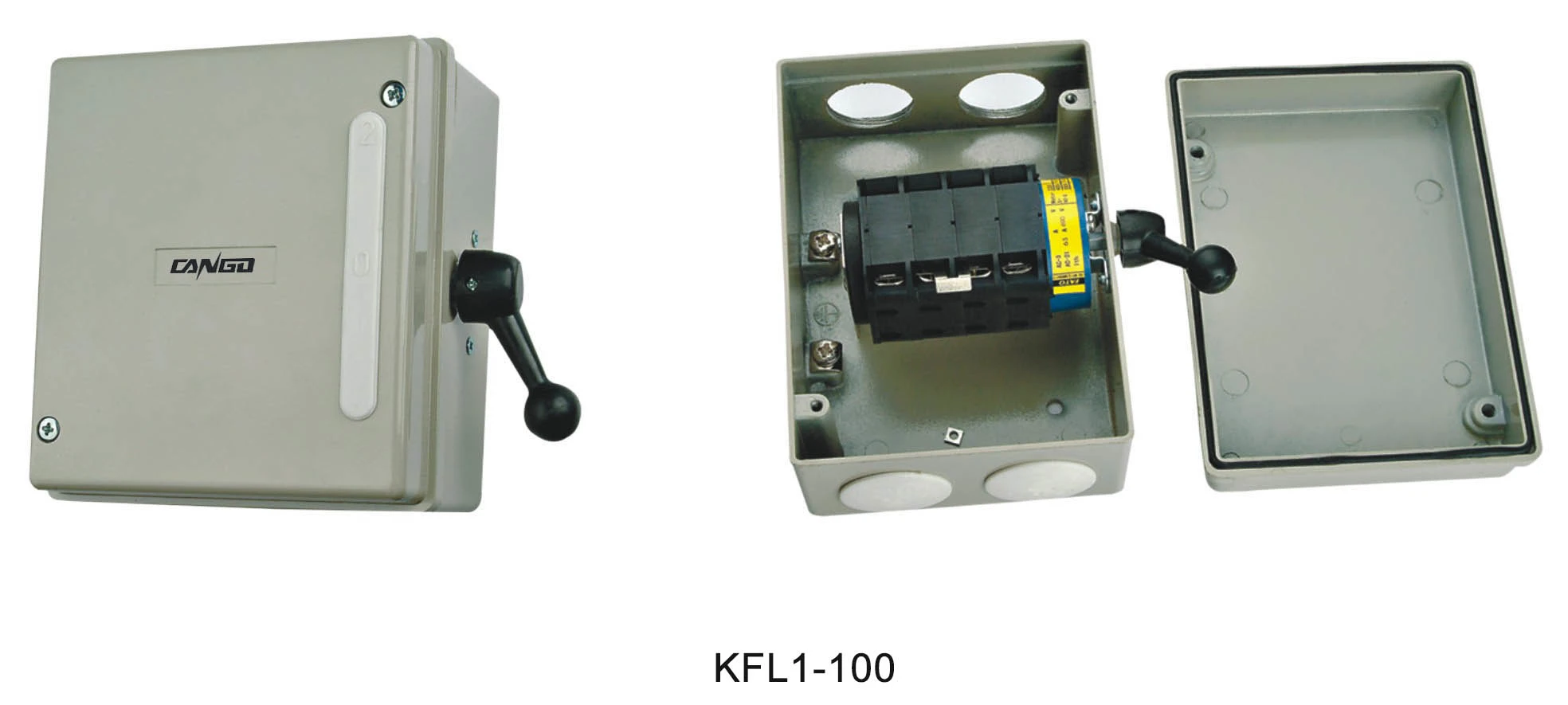

KFL1 changeover switch original dimension and enclosure reference 2

Applications

•Three-phase motor forward and reverse control
•Machine start and stop stations
•Industrial circuit changeover panels
•Pump, fan and workshop motor control
•OEM machinery and electrical enclosures

Model Selection Guide

•Select KFL1-16, 25, 32, 40, 63 or 100 according to the required current.
•Confirm the operating voltage and AC-21 or AC-23 duty.
•Match the listed motor power to the project voltage.
•Review the enclosure and dimension references before installation.
•Provide motor voltage, power, current, control function and quantity with the inquiry.

KFL1 FAQ

Which KFL1 current ratings are listed?

The original table includes KFL1-16, KFL1-25, KFL1-32, KFL1-40, KFL1-63 and KFL1-100.

Can KFL1 reverse a three-phase motor?

Yes. The source application states direct start, stop, forward and backward control for three-phase asynchronous motors.

Which voltages appear in the table?

The retained rated-voltage columns show 230V, 400V and 690V.

What information is needed for quotation?

For a KFL1 changeover switch manufacturer inquiry, provide motor voltage, rated power, required current, switching function, quantity and destination market.

Send Inquiry

For a KFL1 quotation, send the selected model, circuit voltage, rated current or load, switching function, actuator or cable requirement, installation method, quantity and destination market. Our team can review the retained technical data with your application.
