JSH PVC Coated Flexible Metal Conduit
2.Thin, vacuum extruded jacket has minimal effect on the core flexibility
3.PVC jacket is UV Resistant
4.Helically wound, hot dipping galvanized steel core, for superior strength
JSH PVC Coated Flexible Metal Conduit
Introduction
Extra flexible with excellent mechanical strength
Thin,vacuum extruded jacket has minimal effect on the core flexibility
PVC jacket is UV Resistant
Helically wound,hot dipping galvanized steel core,for superior strength
Flame self-extinguish

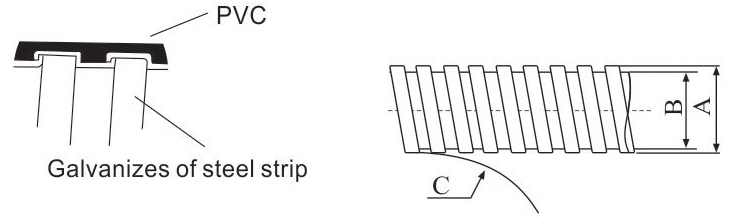

Dimension
Model Selection
| Item No. | Size(inch) | B | A | C | Reel Length |
|---|---|---|---|---|---|
| Internal Dia.(mm） | External Dia.(mm) | Min.Bend Radius(mm) | |||
| JSH-8 | - | 8 | 11 | 25 | 200m |
| JSH-10 | 5/16" | 10 | 13 | 30 | 100m |
| JSH-12 | - | 12 | 15 | 40 | 100m |
| JSH-13 | 3/8" | 13 | 16 | 43 | 100m |
| JSH-16 | 1/2" | 16 | 19 | 45 | 50m |
| JSH-19 | - | 19 | 23 | 50 | 50m |
| JSH-20 | 3/4" | 20 | 24 | 50 | 50m |
| JSH-25 | 1" | 25 | 29 | 57 | 50m |
| JSH-32 | 1 1/.4" | 32 | 36 | 70 | 30m |
| JSH-38 | 1 1/2" | 38 | 43 | 80 | 30m |
| JSH-50 | 2" | 50 | 55 | 95 | 20m |
| JSH-63 | 2 1/2" | 63 | 70 | 140 | 10m |
| JSH-78 | 3" | 78 | 85 | 150 | 10m |
| JSH-100 | 4" | 100 | 109 | 190 | 10m |
