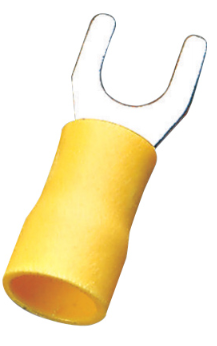

Insulated Spade Terminals
● Terminal Body: Copper
● Plating: Tin
Insulated Spade Terminals
Introduction
Terminal Body: Copper
Plating: Tin

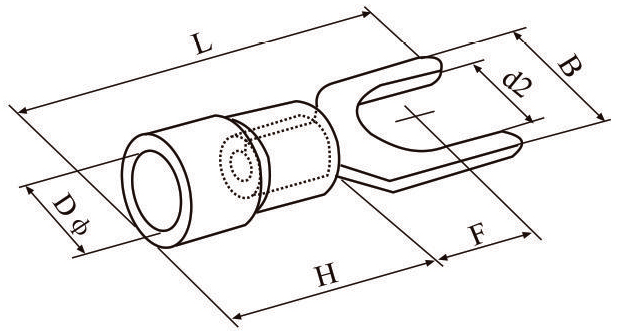

Dimension
Model Selection
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 |  |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.5 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.5 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.5 | 12.0 | 21.2 | 11.0 | |||
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 |  |
| SV2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 | |||
| SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS2-5 | #8 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS2-6 | #10 | 6.5 | 9.5 | 21.2 | 6.5 | |||
| SVL2-6 | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 | |||
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 12.5 | 6.2 |  |
| SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-6 | 1/4 | 6.5 | 12.0 | 28.0 | 12.1 | |||
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 |  |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 | |||
| SV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
| SV5.5-6 | 1/4 | 6.5 | 9.0 | 25.2 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.5 | 12.0 | 31.2 | 12.0 | |||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||
