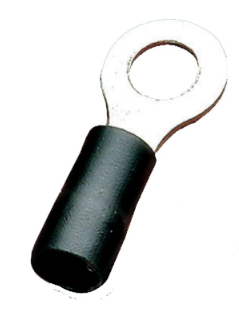

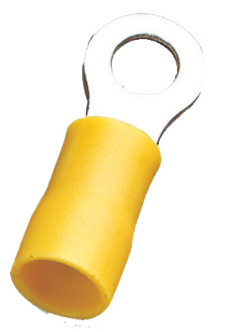

Insulated Ring Terminals
● Terminal Body: Copper
● Plating: Tin
Insulated Ring Terminals
Introduction
PVC cover,Halogen-free,low smoke,lead-free
Temperature:-20℃ to 70℃,intermittent up to +100℃.
Hot dipping galvanized steel core,square-locked with cord packing,thick smooth PVC cover.
Flame self-extinguish,sunlight and UV resistant,suitable for outside installation.

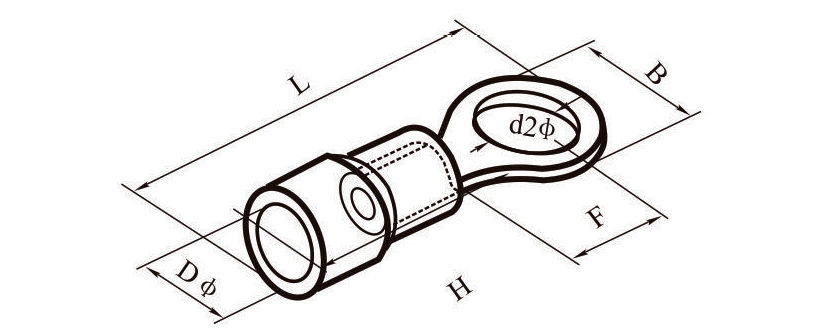

Dimension
Model Selection
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 |  |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-3.5 | #6 | 3.7 | 8.0 | 21.5 | 7.0 | |||
| RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
| RV1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
| RVL1.25-5 | #10 | 5.3 | 9.8 | 23.0 | 8.5 | |||
| RV1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | |||
| RVS1.25-6 | 1/4 | 6.5 | 9.8 | 23.0 | 8.5 | |||
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
| RV1.25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.0 | |||
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 |  |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
| RVM2-3.5 | #6 | 3.7 | 6.6 | 21.0 | 7.0 | |||
| RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||
| RVS2-4 | #8 | 4.3 | 6.6 | 21.0 | 7.0 | |||
| RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
| RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
| RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.5 | 12.0 | 27.6 | 11.0 | |||
| RV2-8 | 5/16 | 6.5 | 12.0 | 27.6 | 11.0 | |||
| RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
| RV2-10 | 1/2 | 13.0 | 19.2 | 36.5 | 16.5 | |||
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 |  |
| RV3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
| RV.3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.5 | 12.0 | 27.9 | 7.7 | |||
| Item No. | USA Screw | Dimension (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| d2 | B | L | F | H | DΦ | |||
| RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 |  |
| RVS5.5-4 | #8 | 4.3 | 7.2 | 21.5 | 5.9 | |||
| RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
| RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
| RV5.5-6 | 1/4 | 6.5 | 12.0 | 31.5 | 13.0 | |||
| RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
| RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
| RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 7.25 | |||
