Hex Washer Head Self-drilling Screws
Surface treatment: BLK, Zinc Plate(yellow/white/blue),Nickel Plated
Hex Washer Head Self-drilling Screws
Introduction
Material: carbon steel C1022A,SS200,SS201,SS304,SS316,SS410,SS430
Surface treatment: BLK, Zinc Plate(yellow/white/blue),Nickel Plated

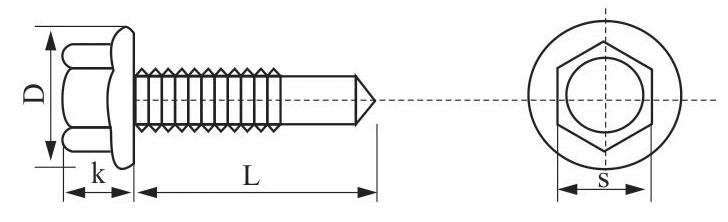

Dimension
Model Selection
| Item No. | Head size | Dia.(mm) | K(mm) | S(MM) | L | |||
|---|---|---|---|---|---|---|---|---|
| Max. | Min. | Max. | Min. | Max. | Min. | |||
| ST3.5 | 6# | 8.3 | 7.6 | 3.45 | 3.2 | 5.5 | 5.32 | 19mm-250mm |
| ST3.9 | 7# | 8.3 | 7.6 | 3.45 | 3.2 | 5.5 | 5.32 | |
| ST4.2 | 8# | 8.8 | 8.1 | 4.30 | 4.0 | 7.0 | 6.78 | |
| ST4.8 | 10# | 10.5 | 9.8 | 4.45 | 4.15 | 8.0 | 7.80 | |
| ST5.5 | 12# | 11.0 | 10.0 | 5.45 | 5.15 | 8.0 | 7.78 | |
| ST6.3 | 12# | 11.0 | 10.0 | 5.45 | 5.15 | 8.0 | 7.78 | |
