5x20 6x32

Glass and Porcelain Cylindrical Fuse Links

Share

Glass and porcelain cylindrical fuse links with listed 5x20mm and 6x32mm selections. Specify body type, current and required electrical characteristics when requesting technical confirmation and quotation.

Glass and Porcelain Cylindrical Fuse Links

CANGO is a glass cartridge fuse supplier for equipment buyers and electrical distributors. The source selections include a 5x20mm glass fuse range and a 6x32mm glass fuse range; specify body type, dimensions and required ratings in your enquiry.

For importers, distributors, panel builders and project buyers. Specify the exact model and application when requesting a quotation.

Request a Quotation

Key Features

Source-listed selections: Glass Φ5×20, Glass Φ6×32, Porcelain Φ5×20, Porcelain Φ6×32.
The original technical tables are retained for model review.
Quotation review should match the exact model, application and required quantity.

Technical Specifications

Size		Rated Current(A)
Glass Body	Φ5×20	0.0315,0.04,0.05,0.063,0.08,0.1,0.125,0.16,0.2,0.25,0.315,0.4,0.5,0.63,0.8,1,1.25,1.6,2,2.5,3.15,4.5,6.3,7,8,9,10,12,15,16
Glass Body	Φ6×32	0.04,0.05,0.063,0.08,0.1,0.125,0.16,0.2,0.25,0315,0.4,0.5,0.63,0.8,1,1.25,1.6,2,2.5,3.15,4,5,6.3,7,8,9,10,12,15,16,20
Porcelain Body	Φ5×20	1.6,2,2.5,3.15,4,5,6.3,7,8
Porcelain Body	Φ6×32	0.0315,0.04,0.05,0.063.0.08.0.1,0.125,0.16,0.2,0.25,0.315,0.4,0.5,0.63,0.8,1,1.25,1.6,2,2.5,3.15,4,5,6.3,7,8.9,10,12,16,20,25

Model Selection

Select the required model or size from the source data: Glass Φ5×20, Glass Φ6×32, Porcelain Φ5×20, Porcelain Φ6×32.
Confirm system voltage, AC or DC duty, rated current and fuse-link/holder compatibility with the model-specific data sheet.
For fuse links, confirm operating class, time-current characteristics and required breaking capacity. For holders and switches, confirm the assembly ratings and mounting details.

Product Details

Cylindrical fuse link with cylindrical contact caps is designed for protecting electrical distributing in rated current up to 125A.Against damage due to overload and short circuit. Fuse link with the striker is supplied for the purpose of protecting against motor single phasing operation when fitted in fuse-isolators. This product conforms with I EC60269 and VDE0636 standards.

Overall Dimensions and Product Details

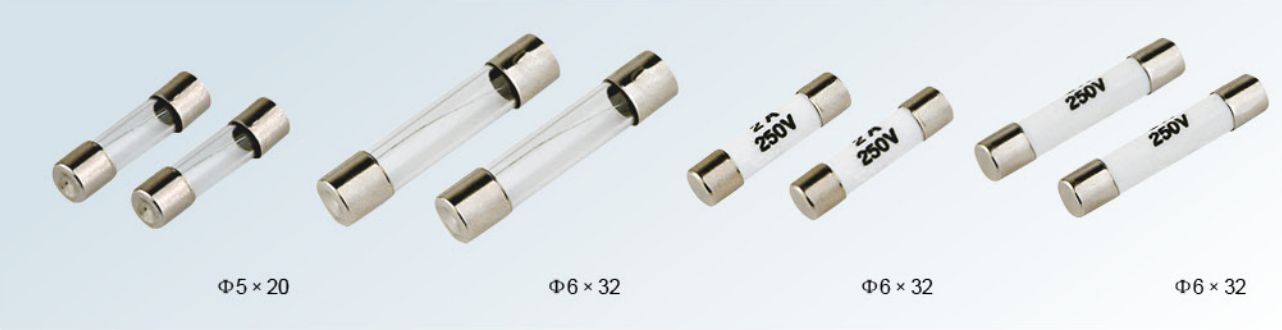

Glass and Porcelain Cylindrical Fuse Links glass and porcelain fuse size comparison

Applications

Selection focus: equipment fuse replacement. Confirm that the chosen model and its documented ratings meet the project requirements.

Installation Notes

Installation and replacement should be carried out by qualified electrical personnel following the model-specific instructions. Isolate the supply before work and verify compatibility, dimensions and connection requirements.

FAQ

What information is needed to quote Glass and Porcelain Cylindrical Fuse Links?

Please provide the exact model or size, rated voltage and current requirements, quantity, application and destination market. Include the matching fuse or holder details where applicable.

Can I request OEM branding or custom packing?

Include your logo, packing artwork and quantity in the inquiry. CANGO needs to confirm feasibility, packing details and lead time for the selected product.

Which technical documents should I request before ordering?

Request a model-specific data sheet, dimensions, installation instructions and any compliance documents required by your destination market.

What should I check when choosing a glass cartridge fuse wholesale supplier?

Request the exact product data sheet, compatible component details and relevant technical documents. Provide your required ratings, quantity and destination so the supplier can review the selection and quotation requirements.

Send Inquiry

Send the model or size, required ratings, order quantity, application, destination and packing requirements for technical review and quotation.

Contact CANGO for Quotation
