FWZ Changeover Switch

Share

This combined switch is mainly used in the circuit of AC 50Hz. rated voltage 690V and below. DC voltage 240V and below, rated current up to 125A,to manually make and break the circuit non. Frequently as transferring of control, also it can directly control small capacity alternating motor. Used as master control equipment motor control switch,. Master control switch and welding machine etc.

FWZ Changeover Switch

Application

This combined switch is mainly used in the circuit of AC 50Hz. rated voltage 690V and below. DC voltage 240V and below, rated current up to 125A,to manually make and break the circuit non. Frequently as transferring of control, also it can directly control small capacity alternating motor. Used as master control equipment motor control switch,
Master control switch and welding machine etc.

Specification

Model	Lth A	Ui V	Ue V	AC-21A	AC-21A	AC-23A		AC-2		AC-3		AC-4		AC-15	DC-13
Model	Lth A	Ui V	Ue V	le A	le A	le A	P kw	le A	P kw	le A	P kw	le A	P kw	le A	le A
FWZ-20	20	600	400	20	20	15	7.5	15	7.5	11	5.5	3.5	1.5	4
			240											5	1
			120												5
FWZ-25	25		440	25	25	22	11	22	11	15	7.5	6.5	3	5
			240											8	1.5
			120												9
FWZ-32	32		440	32	32	30	15	30	15	22	11	11	5.5	6
			240											14	11
			120												25
FWZ-75	75		440	75	75	72	30	72	30	32	24	23	11.5
FWZ-75	75		120												60
FWZ-125	125		440	125	125	90	45	90	45	36	45	30	18.5
Number of cycles of operation		No-load		8500										Electrical life
		Load		1500										20X10⁴	6X10⁴
		Load		1500										Mechanical life(times)
		Total		1000										6X10⁴

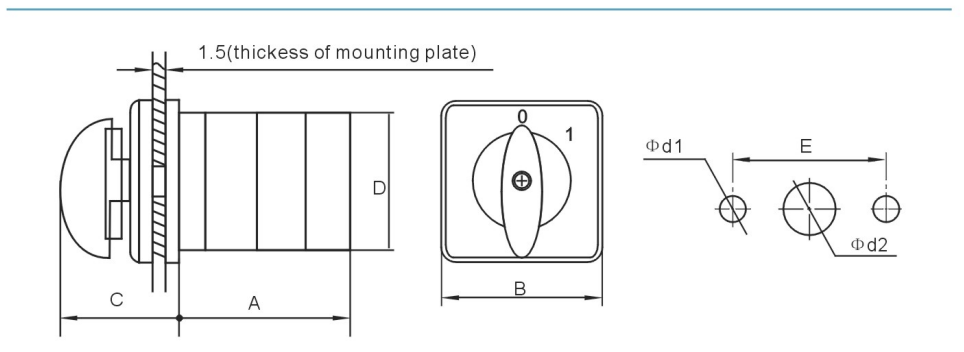

Dimension

Type	A	B	C	D	E	d1	d2
FWZ12-20	24+13n	50	28	φ44	32	3.2	9.5
FWZ12-25	13n+13n	72	32	φ56	46	4	13
FWZ12-32	22+18n	72	32	φ59	32	3.2	9.5
FWZ12-50	33+18n	105	44	φ80	46	5.3	13
FWZ12-75	33+18n	105	44	φ80	46	5.3	13
FWZ12-125	33+27n	105	44	φ80	46	5.3	13
