FW98 Changeover Switch
FW98 Changeover Switch
Introduction
FW98 series changeover switch is used in the circuits of AC 50/60Hz,rated voltage up to 440V,DC voltage up to 240V,rated current up to 20A,to not frequently switch on/off circuit,transfer the control circuit and electric meters,also it can directly control small capacity three phases squirrel caged asynchronous motor or used for master control or electric meters
Technical Data
Type/ | Ith | Ui V | Ue | AC-21A | AC-22A | AC-23A | AC-2 | AC-3 | AC-4 | AC-15 | DC-13 | ||||
le(A) | le(A) | le(A) | (kW) | le(A) | P | le(A) | (kW) | le(A) | P | le(A) | le(A) | ||||
FW98 | 20 | 660 | 440 | 20 | 20 | 15 | 7.5 | 15 | 7.5 | 11 | 5.5 | 3.5 | 1.5 | 4 | |
240 | 5 | 1 | |||||||||||||
120 | 5 | ||||||||||||||
440 | 25 | 25 | 22 | 11 | 22 | 11 | 15 | 7.5 | 6.5 | 3 | 5 | ||||

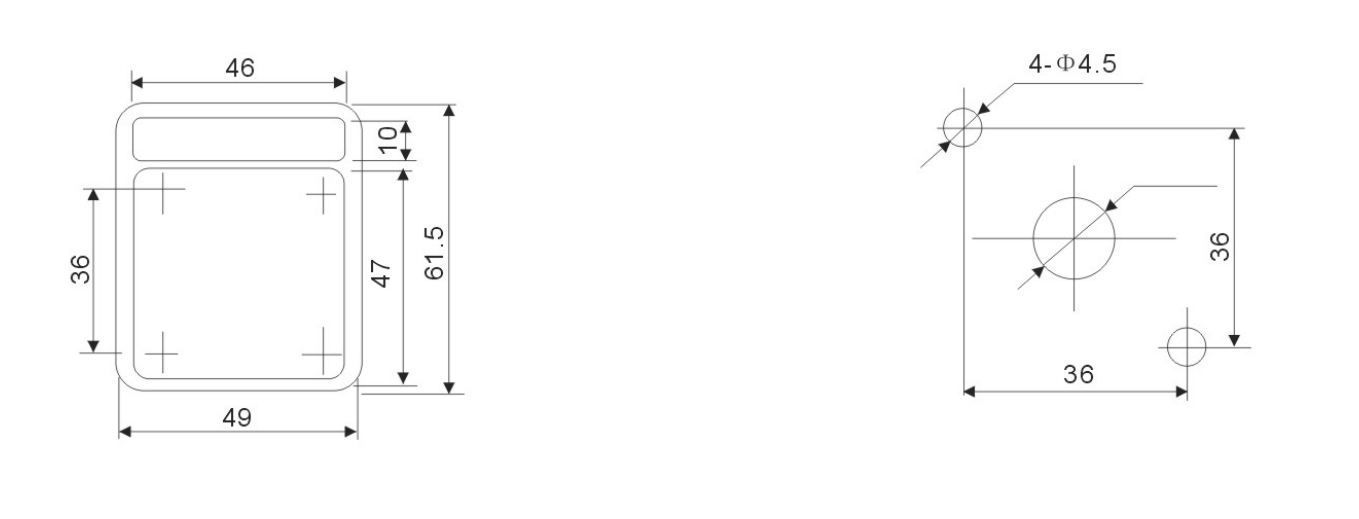

Outline and mounting size of FW98-16

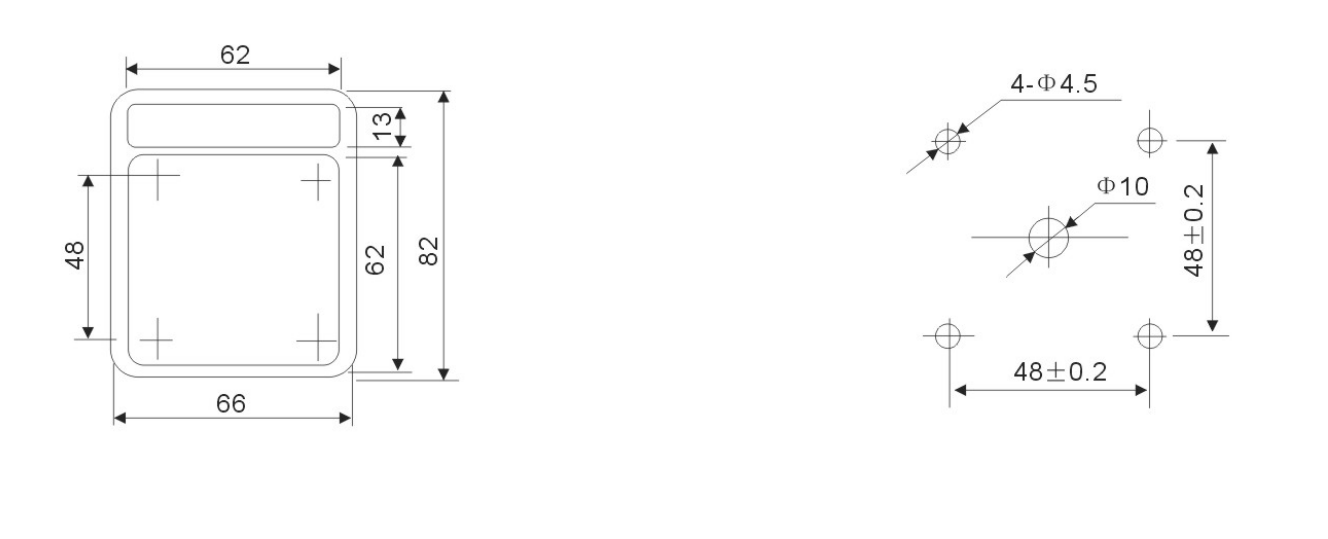

Outline and mounting size of FW98-20
