FW26 Rotary Cam Changeover Switch Series

FW26 rotary cam changeover switches support circuit transfer and motor control up to 690V AC or 240V DC. Contact CANGO for model selection and quotation.

Switch and Socket / Control Switch

FW26 Rotary Cam Changeover Switch Series

The FW26 rotary cam changeover switch is designed for infrequent circuit switching, transfer and control in AC or DC systems. The original FW26 model tables, duty ratings, electrical and mechanical life data, and panel mounting drawing are retained.

Model

FW26

Product Type

Panel-mounted universal rotary cam switch

Application Focus

Circuit transfer, motor control, master control and meter switching

FW26 panel-mounted rotary cam changeover switch

Buyer Overview

KANGGE ELECTRIC supplies the FW26 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

FW26 Quick Selection: Confirm the exact model, rated voltage and current, switching function, actuator or cable requirement, installation method, quantity and packing before quotation.

Product Advantages

•The 690V panel mount selector switch data are retained with DC voltage information up to 240V.
•The 10A to 160A universal changeover switch model tables include FW26-10 through FW26-160 rated thermal-current rows.
•The motor control rotary switch AC DC application covers circuit transfer, direct small-motor control, master control and meter switching.
•AC-21A, AC-22A, AC-23, AC-15 and DC-13 values remain unchanged in the original tables.
•The source page lists finger-protection functions for FW26-20, FW26-25, FW26-32 and FW26-63.

Technical Specifications

Original Technical Table 1

Model	FW26-10			FW26-20			FW26-25
Rated Insulation Voltage Ui (V)	690V
Rated Thermal Current Lth (A)	10			20			25
Rated Operating Voltage Ue (V)	220	380	500	220	380	500	220	380	500
AC-21A AC-22A(A)	10			20			20
AC-2 3P(KW)	2	3.5	7	4	7.5	10	5.5	11	13
AC3 3P/1P(KW))	1/0.5	3.5/1	2.5	3/2.2	5.5/3	5.5	4/3	7.5/3.7	7.5
AC-4 3P/1P(KW)	0.25/0.35	1/1.5	1	0.55/0.75	1.5/1.5	1.5	1.5/1.1	3/2.2	2.2
AC-23 3P/1P (KW)	2.5/1	3.5/2	4.5	3.7/2.5	7.5/3.7	7.5	5.5/3	11/5.5	11
AC-15(A)	3	2	-	5	4	-	8	5
DC-13(A)				1
Mechanical Life	60X10⁴ops,operation frequency:120ops/hour
Electrical Life AC-15	20X10⁴ops,operation frequency:300ops/hour
Electrical Life at DC-13	6X10⁴ops,operation frequency 300ops/hour

Original Technical Table 2

Model	FW26-32			FW26-63			FW26-125		FW26-160
Rated Insulation Voltage Ui (V)	690V
Rated Thermal Current Lth (A)	32			63			125		160
Rated Operating Voltage Ue (V)	220	380	500	220	380	500	220	380	220	380
AC-21A AC-22A(A)	32			63			125		160
AC-2 3P(KW)	7.5	15	18.5	18.5	30	40	30	45	37	55
AC3 3P/1P(KW))	5.5/4	11/5.5	11	11/6	18.5/11	18.5	15/7.5	30/13	22/11	37/18.5
AC-4 3P/1P(KW)	2.5/1.5	5.5/3	5.5	5.5/2.4	7.5/4	7.5	6/3	11/5.5	10/4	15/7.5
AC-23 3P/1P (KW)	7.5/4	15/7.5	15	15/10	30/18.5	45	30/15	45/22	37/22	75/37
AC-15(A)	14	6		-
DC-13(A)				11
Mechanical Life	60X10⁴ops,operation frequency:120ops/hour
Electrical Life AC-15	20X10⁴ops,operation frequency:300ops/hour
Electrical Life at DC-13	6X10⁴ops,operation frequency 300ops/hour

Dimensions and Original Product References

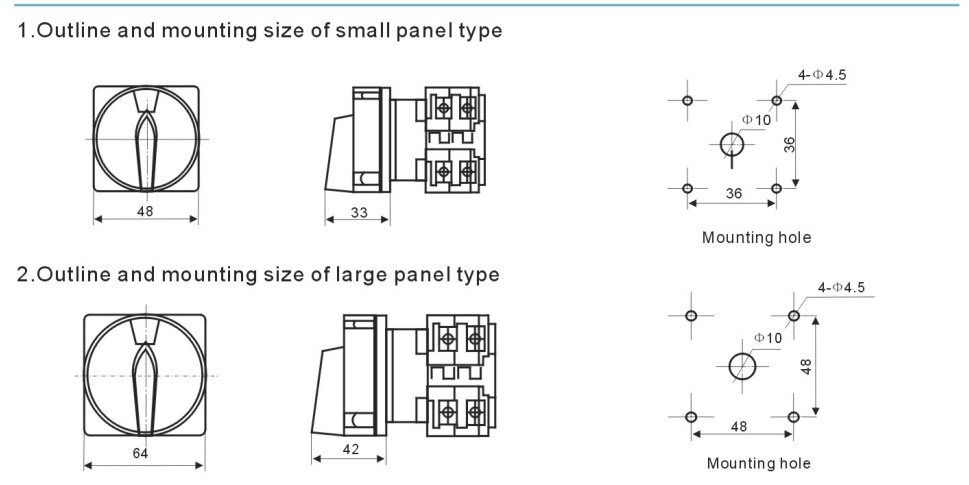

FW26 rotary cam switch original panel mounting dimension drawing

Applications

•Switchgear and electrical control panels
•Motor and welding-machine switching
•Test-equipment circuit selection
•Ammeter and voltmeter selector functions
•OEM machinery master-control circuits

Model Selection Guide

•Choose the FW26 frame according to the retained rated thermal-current table.
•Confirm AC or DC circuit voltage and the required utilization category.
•Match the motor or control duty to the listed power and current values.
•Review the small or large panel mounting drawing before machining the panel.
•Provide switch function, positions, poles, current, voltage, quantity and destination market.

FW26 FAQ

Which FW26 models are included?

The original tables include FW26-10, 20, 25, 32, 63, 125 and 160 models.

What voltage limits are stated?

The source overview states AC voltage up to 690V and DC voltage up to 240V.

Can FW26 be used for motor control?

Yes. The source page lists small-capacity motor control, master control, circuit transfer and meter-switching applications.

What information is required for quotation?

For a FW26 cam switch supplier for switchgear inquiry, provide function, positions, poles, current, voltage, panel size, quantity and destination market.

Send Inquiry

For a FW26 quotation, send the selected model, circuit voltage, rated current or load, switching function, actuator or cable requirement, installation method, quantity and destination market. Our team can review the retained technical data with your application.

Contact KANGGE ELECTRIC

Browse more products in the Switch and Socket category.
