Fully Vinyl Insulated Disconnectors
● Terminal Body: Brass
● Plating: Tin
Fully Vinyl Insulated Disconnectors
Introduction
Insulation: Vinyl
Terminal Body: Brass
Plating: Tin
Maximum Temperature Resistance: 75°C

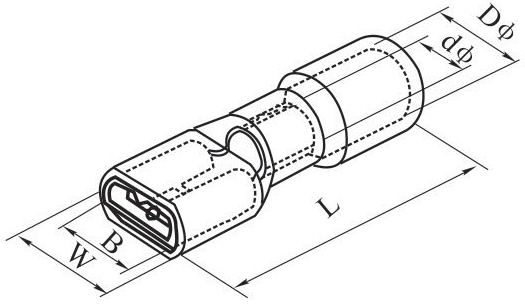

Dimension
Model Selection
| Item No. | Mema Tab (mm) | Dimension (mm) | Color | ||||
|---|---|---|---|---|---|---|---|
| W | B | DΦ | dΦ | L | |||
| FDFD1.25-187(5) | 0.5 X 4.75 | 5.6 | 5.0 | 3.8 | 1.7 | 20.0 | Red |
| FDFD1.25-187(8) | 0.8 X 4.75 | 5.6 | 5.0 | 3.8 | 1.7 | 20.0 | |
| FDFD1.25-250 | 0.8 X 6.35 | 7.4 | 6.6 | 3.8 | 1.7 | 21.5 | |
| Item No. | Mema Tab (mm) | Dimension (mm) | Color | ||||
|---|---|---|---|---|---|---|---|
| W | B | DΦ | dΦ | L | |||
| FDFD2-187(5) | 0.5 X 4.75 | 5.6 | 5.0 | 4.3 | 2.3 | 20.0 | Blue |
| FDFD2-187(8) | 0.8 X 4.75 | 5.6 | 5.0 | 4.3 | 2.3 | 20.0 | |
| FDFD2-250 | 0.8 X 6.35 | 7.4 | 6.6 | 4.3 | 2.3 | 21.5 | |
| Item No. | Mema Tab (mm) | Dimension (mm) | Color | ||||
|---|---|---|---|---|---|---|---|
| W | B | DΦ | dΦ | L | |||
| FDFD5-250 | 0.8 X 6.35 | 7.4 | 6.6 | 5.7 | 3.4 | 25.5 | Yellow |
