FS Series Cable Float Switch for Water Level Control

FS series cable float switches provide 250V/380V liquid-level control with 1m to 10m cable options for tanks and pumps. Contact CANGO for model selection.

Switch and Socket / Control Switch

FS Series Cable Float Switch for Water Level Control

The cable float switch for water tank applications controls a circuit as the liquid level rises or falls. The current source page retains FS-B3.15, FS-Q3.15, FS-C3.15, FS-A3.15, FS-E3.15 and FS-F3.15 variants with confirmed electrical, cable-length and service-life data.

Model

FS Series

Product Type

Cable-suspended liquid-level control switch

Application Focus

Tank level detection and automatic pump control

FS series cable float switch for tank and pump level control

Buyer Overview

KANGGE ELECTRIC supplies the FS Series series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

FS Series Quick Selection: Confirm the exact model, rated voltage and current, switching function, actuator or cable requirement, installation method, quantity and packing before quotation.

Product Advantages

•The 10A 250V liquid level float switch rating is retained together with the listed 10(4A) 380V value.
•The pump control float switch with 10m cable option is listed with 1m, 2m, 3m, 4m and 5m cable selections.
•The confirmed ambient-temperature range is 0 to 80 degrees C at 50Hz or 60Hz.
•The source page states a control range of at least 0.2m.
•Electrical life above 100,000 operations and mechanical life of 250,000 operations are retained from the current page.

Technical Specifications

Confirmed Source Specifications

Item	Specification
Product Type	Float Switch
Rated Voltage / Current	10(8A) 250V / 10(4A) 380V
Ambient Temperature	0 to 80 degrees C
Frequency	50Hz / 60Hz
Cable Length	1m / 2m / 3m / 4m / 5m / 10m; other lengths available on request
Control Range	>= 0.2m
Electrical Life	> 100,000 operations
Mechanical Life	250,000 operations
Model Selection	FS-B3.15 / FS-Q3.15 / FS-C3.15 / FS-A3.15 / FS-E3.15 / FS-F3.15

Model Variants

Applications

•FS series water level controller switch projects
•Water-tank filling and drainage control
•Sump and reservoir pump automation
•Liquid-level alarm and transfer systems
•OEM pump-control equipment

Model Selection Guide

•Select the FS housing style from the original model-variant image.
•Confirm the rated voltage, current and load type before ordering.
•Choose a standard cable length or state the required custom length.
•Confirm the required liquid-level control direction and switching application.
•Provide model, cable length, voltage, load, quantity and destination market with the inquiry.

FS Series FAQ

Which FS float-switch models are shown?

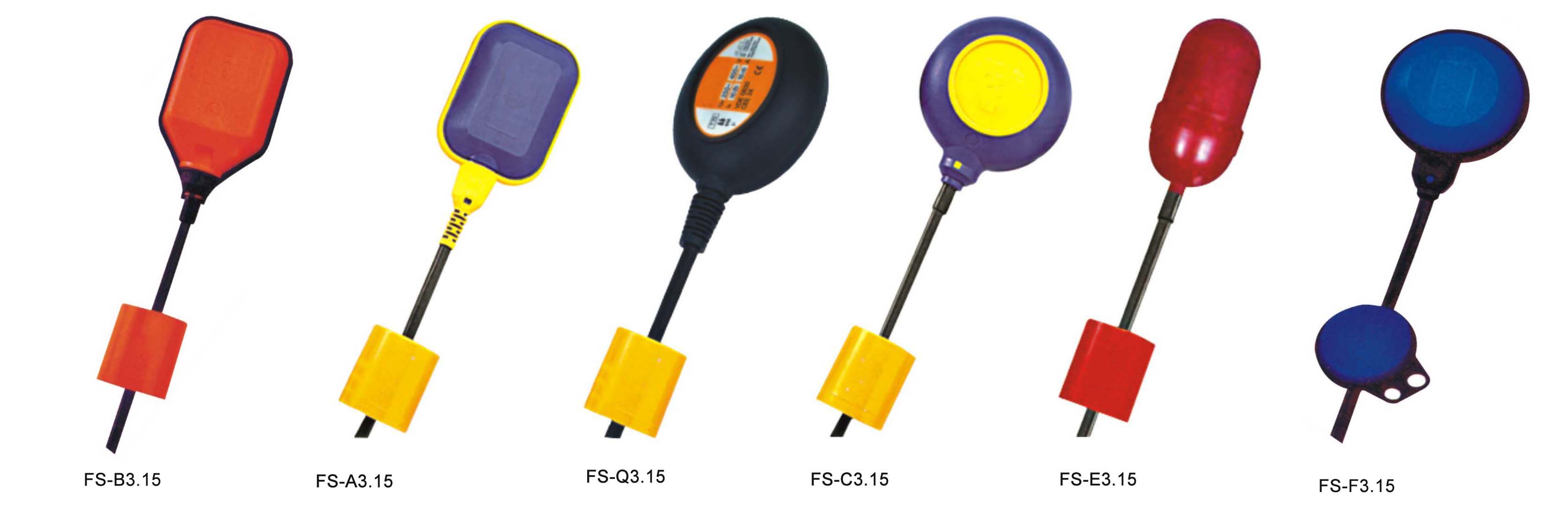

The original image shows FS-B3.15, FS-A3.15, FS-Q3.15, FS-C3.15, FS-E3.15 and FS-F3.15 variants.

Which cable lengths are listed?

The source page lists 1m, 2m, 3m, 4m, 5m and 10m, with other lengths available on request.

What control range is stated?

The retained source value is at least 0.2m.

What should a B2B buyer provide?

For a float switch OEM supplier for pumps inquiry, send the model, cable length, circuit voltage, load details, quantity and packing requirements.

Send Inquiry

For a FS Series quotation, send the selected model, circuit voltage, rated current or load, switching function, actuator or cable requirement, installation method, quantity and destination market. Our team can review the retained technical data with your application.
