Flat Cable Clips
● Operating temperature: -35C to 85C.
● Color: white, grey, black, other colors are available.
● Plastic bag package, Box package is optional
● Size: from 4mm to18mm
Flat Cable Clips
Introduction
Good elasticity and shock resisting. Inserting type. Nail attached in chips.Time saving and cost saving.
Material: chip made of PE or PP; nail made of medium carbon steel
Operating temperature: -35C to 85C.
Color: white, grey, black, other colors are available.
Plastic Bag package, Box package is optional
Application:Securing of cables for general indoor wiring.
Size: from 4mm to18mm

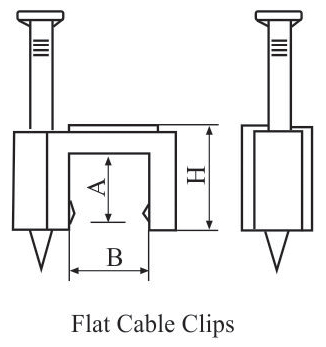

Dimension
Model Selection
| Item No. | H(mm) | A | B | Nail(mm) |
|---|---|---|---|---|
| KGF-4mm | 6.0 | 3.8 | 4 | 1.7 X 14 |
| KGF-5mm | 6.0 | 3.8 | 5 | 1.7 X 14 |
| KGF-6mm | 6.5 | 4.1 | 6 | 1.7 X 16 |
| KGF-7mm | 7.0 | 4.7 | 7 | 1.9 X 16 |
| KGF-8mm | 7.5 | 5.0 | 8 | 2.1 X 19 |
| KGF-9mm | 8.2 | 5.4 | 9 | 2.1 X 20 |
| KGF-10mm | 8.6 | 5.7 | 10 | 2.3 X 21 |
| KGF-12mm | 9.0 | 6.1 | 12 | 2.3 X 23 |
| KGF-14mm | 11.0 | 8.0 | 14 | 2.3 X 25 |
| KGF-18mm | 12.5 | 10 | 18 | 2.6 X 27 |
