DTL-1 Bimetallic Cable Lugs for Copper-Aluminum Connections

DTL-1 bimetallic cable lugs combine a copper palm with an aluminum barrel in sizes from 10mm2 to 800mm2. Contact CANGO for dimensions and quotes.

Wiring Accessories / Electrical Connection and Cable Management

DTL-1 Bimetallic Cable Lugs for Copper-Aluminum Connections

The DTL-1 bimetallic cable lug range is designed for copper-aluminum conductor termination. The original page identifies copper at the ring section and aluminum for the remaining body, with listed lengths from 65mm to 270mm and a model table covering DTL-1-10 through DTL-1-800.

Model

DTL-1

Product Type

Copper-palm and aluminum-barrel compression cable lug

Application Focus

Aluminum conductor termination on copper connection points

DTL-1 bimetallic cable lug with copper palm and aluminum barrel

Buyer Overview

KANGGE ELECTRICsuppliesDTL-1 wiring accessories for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

DTL-1 Quick Selection: Confirm the exact item number, conductor or cable size, material, dimensions, electrical rating where applicable, color, packing and quantity before quotation.

Product Advantages

•The DTL-1 bimetallic cable lug Cu-Al construction retains the source description of a copper ring section and aluminum body.
•The copper aluminum terminal lug 10mm2 to 800mm2 range covers the complete model sequence visible in the source table.
•A bimetal cable lug for aluminum conductor termination helps connect aluminum cable to a copper connection point in distribution equipment.
•The retained DTL-1 compression lug dimension chart lists diameter and length columns for project selection.
•A Cu Al cable lug supplier for power distribution inquiry should state conductor size, stud-hole requirement, quantity and packing.

Technical Specifications

Item No.	Φ	D	D	L	L1	B
DTL-1-10	8.5	10	5.7	65	28	16
DTL-1-16	8.5	11	6	70	30	16
DTL-1-25	8.5	12	7	75	33	18
DTL-1-35	10.5	14	8.5	83	38	20.5
DTL-1-50	10.5	16	9.8	90	40	23
DTL-1-70	12.5	18	11.6	102	47	26
DTL-1-95	12.5	21	13.8	112	48	28
DTL-1-120	14.5	23	15.5	119	52	30
DTL-1-150	14.5	25	16.5	126	53	34
DTL-1-185	16.5	27	18.5	133	57	37
DTL-1-240	16.5	30	21	141	60	40
DTL-1-300	21	34	23.5	165	67	50
DTL-1-400	21	38	26.5	178	76	55
DTL-1-500	21	45	29.2	200	85	60
DTL-1-630	-	54	35	245	80	80
DTL-1-800	-	60	38	270	90	100

Dimensions

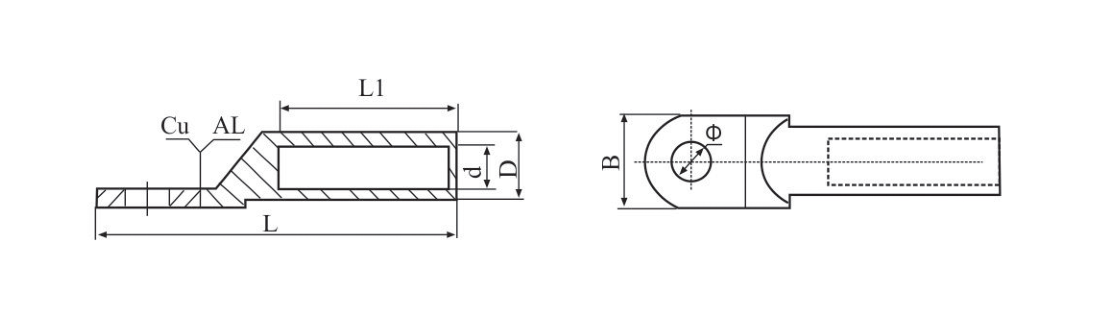

DTL-1 bimetallic cable lug dimension drawing

Applications

•Aluminum cable termination on copper busbars or equipment terminals
•Low-voltage distribution and power-connection projects
•Electrical panel, switchgear and transformer cable connections
•Utility and construction cable termination work
•Wholesale and OEM cable-lug sourcing

Model Selection Guide

•Match the DTL-1 model suffix to the required conductor cross section.
•Check the Phi, D, d, L, L1 and B dimensions in the original table.
•Confirm the stud-hole and cable dimensions before crimping-tool selection.
•Review the retained dimension drawing for installation clearance.
•Provide model, conductor size, hole size, quantity, packing and destination market with the inquiry.

DTL-1 FAQ

Which DTL-1 sizes are listed?

The original model table covers DTL-1-10 through DTL-1-800.

Which materials are stated for DTL-1?

The source page describes copper at the ring section and aluminum for the remaining part.

Is the dimension drawing retained?

Yes. The source dimension image and the original model-dimension table are included below.

What should buyers provide for a DTL-1 quotation?

Send the conductor cross section, stud-hole requirement, exact model, quantity, packing request and destination market.

Send Inquiry

For a DTL-1 quotation, send the selected item number, conductor or cable size, material, dimensions, electrical rating where applicable, color, packing, quantity and destination market. Our team can review the retained technical data with your application.
