DT8 DT862 Three Phase Watt hour Meter
Ambient temperature: -10℃-50℃ first grade and second grade are exceptional,
Relative humidity: below 80%(23℃)
DT8 DT862 Three Phase Watt hour Meter
Application
Ambient temperature: -10℃-50℃ first grade and second grade are exceptional,
Relative humidity: below 80%(23℃)
Specifications
Description | Type | Accuracy Class | Rated Voltage | Calibration |
Three Phase four Wire Active Energy Watt-hour Meter | DT862-4 | 2 | 3×380/220 | 3×5(20)A 10(40)A 10(60)A 20(80)A 20(80)A 20(60)A |
DT8 | 2 | 3×380/220 | 3×25(50)A 50(100)A 5A(C/T) | |
Three Phase Four Wire Active Energy Electronic Type Watt-hour Meter | DT862 | 2 | 3×220/380 | 3×1.5(6) 3(6) 5(20) 10(40) 15(60) 20(80) 30(100) |
DT864 | 1 | 3×220/380 | 1.5(6) 3(6) | |
Three Phase Three Wire Active Energy Electronic Type Watt-hour Meter | DS862 | 2 | 3×380 | 3×1.5(6) 3(6) 5(20) 10(40) 15(60) 20(80) 30(100) |
2 | 3×100 | 3×1.5(6)3(6) | ||
DS864 | 2 | 3×380 | 3×1.5(6)3(6) | |
2 | 3×100 | 3×1.5(6)3(6) | ||
Three Phase Three Wire Reactive Electronic Type Watt-hour Meter | D×862 | 3 | 3×380 | 3×1.5(6)3(6) |
D×864 | 2 | 3×100 | 3×1.5(6)3(6) | |
Three Phase Four Wire Reactive Electronic Type Watt-hour Meter | D×865 | 3 | 3×100 | 3×1.5(6)3(6) |
D×863 | 2 | 3×100 | 3×1.5(6)3(6) |

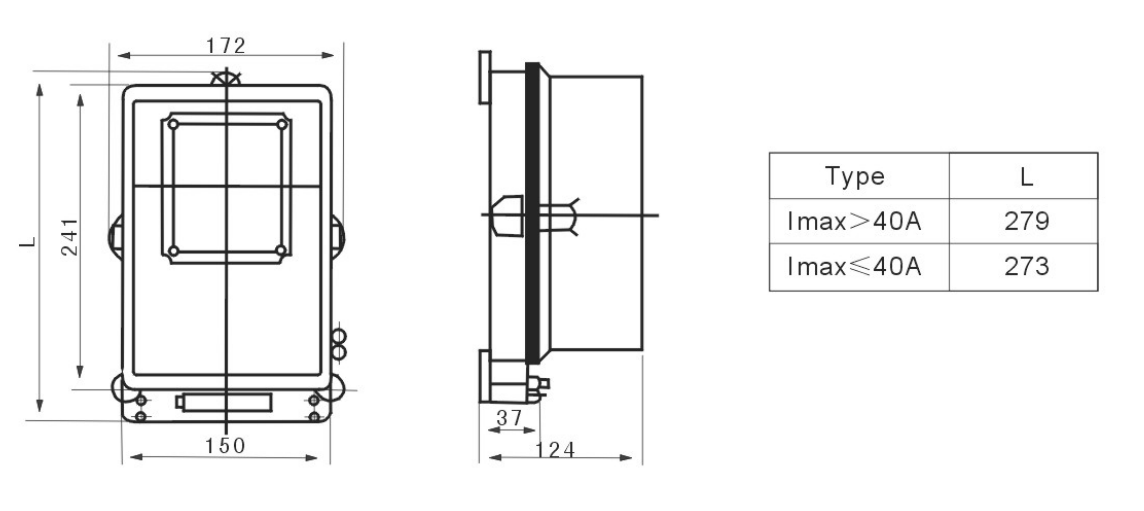

Dimensions
