DD862 DD28 Single Phase Watt hour Meter

DD862/DD28 single-phase watt-hour meters measure 50Hz active energy with the original voltage and current options. Contact CANGO for selection and quotation.

Meter / Electrical Test Instrument

DD862/DD28 Single-Phase Watt-Hour Meter

The DD862 DD28 single phase watt hour meter is an indoor induction meter for measuring active energy in 50Hz single-phase circuits. The original DD28 and DD862 tables, direct-connection current options, insulation data and dimension drawings are retained for buyer selection.

Model

DD862/DD28

Product Type

Indoor induction single-phase active-energy meter

Application Focus

50Hz single-phase electricity measurement and energy recording

DD862 DD28 single-phase watt-hour meter for 50Hz energy measurement

Buyer Overview

KANGGE ELECTRIC supplies the DD862/DD28 series for importers, distributors, panel builders, machinery manufacturers, contractors and OEM electrical-equipment buyers.

DD862/DD28 Quick Selection: Confirm the exact model, measurement range, rated voltage or current, display or ratio requirement, application, packing and quantity before quotation.

Product Advantages

•The 220V induction kilowatt hour meter data are retained together with the listed 230-240V DD28 option.
•The class 2 mechanical energy meter accuracy values remain visible in the original specification tables.
•Direct-connection current selections are preserved exactly as shown on the source page.
•The original indoor ambient range of -10 degrees C to 50 degrees C and relative humidity below 85% at 25 degrees C are retained.
•Original DD862 outline drawings and the listed A and B dimensions remain available below.

Technical Specifications

Original Technical Table 1

Description	Single Phase Kilowatt-hour Meter
Type	DD284	DD282(DD17)
Accuracy Class	2.0	2.0
Rated Voltage	230-240V	220V
Calibration	5-20A 10-40A 20-60A	5-10A 10-20A 20-40A 30-60A 40-80A
Connection	Direct Connection	Direct Connection

Original Technical Table 2

Type	DD862-4T	DD862-2	DD862-4
Accuracy	2.0	2.0
Rated Voltage	220V	220V
Rated Current	2301.5(6),2.5(10),5(20),3(12), 10(40),15(60),20(80),30(100)-240V	3(6)A,1.5(10)A
Overload Capacity	400%1b	200%1b
Starting Current	0.5%1b
Insulation Function	Power frequency AC voltage 2 KV last minute,the impulse voltage is 6KV

Original Technical Table 3

1 max>10A	A=160mm	B=147mm
1 max≤10A	A=154mm	B=142mm

Dimensions and Original Product References

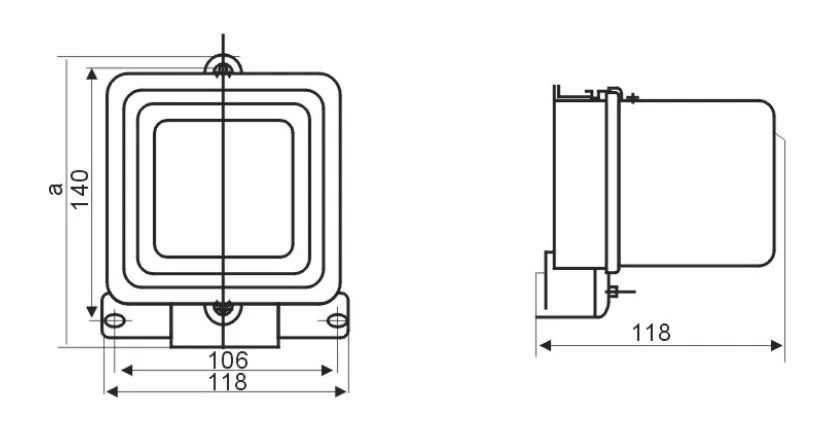

DD862 DD28 watt-hour meter original dimension drawing

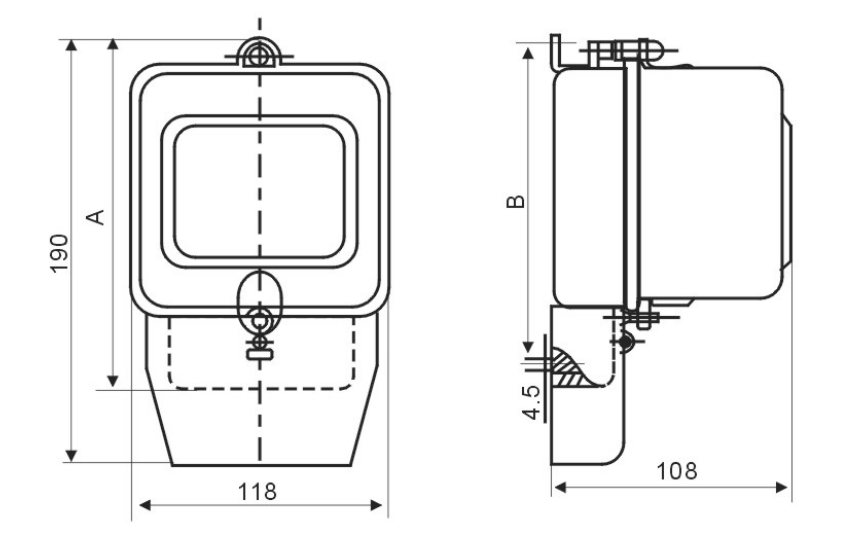

DD862 DD28 watt-hour meter original dimension drawing 2

Applications

•Single phase kWh meter direct connection projects
•Indoor residential electricity measurement
•Commercial single-phase energy recording
•Distribution-board metering installations
•Replacement and export meter sourcing

Model Selection Guide

•Confirm whether the project requires a DD28 or DD862 series model.
•Match the rated voltage and current range to the original tables.
•Check the accuracy class, overload capacity and starting-current information.
•Review the corresponding outline drawing before panel or meter-board preparation.
•Provide model, rated voltage, current range, quantity and destination market with the inquiry.

DD862/DD28 FAQ

What does the DD862/DD28 meter measure?

The source application describes an induction meter for measuring single-phase active energy at a rated frequency of 50Hz.

Which voltage options are shown?

The original tables show 220V for DD862 models and 220V or 230-240V options in the DD28 table.

Are the original dimension drawings retained?

Yes. The current source-page drawings and the listed DD862 A and B dimensions are retained below.

What should buyers provide for a DD862/DD28 quote?

For a single phase electricity meter supplier inquiry, send the exact model, rated voltage, current range, quantity and destination market.
