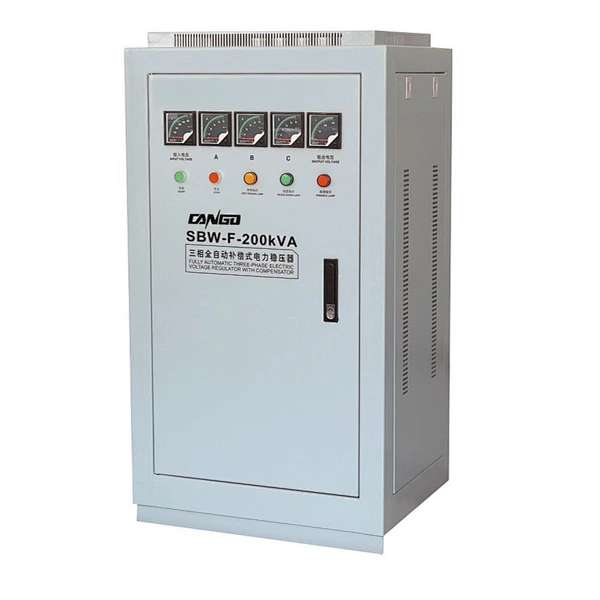

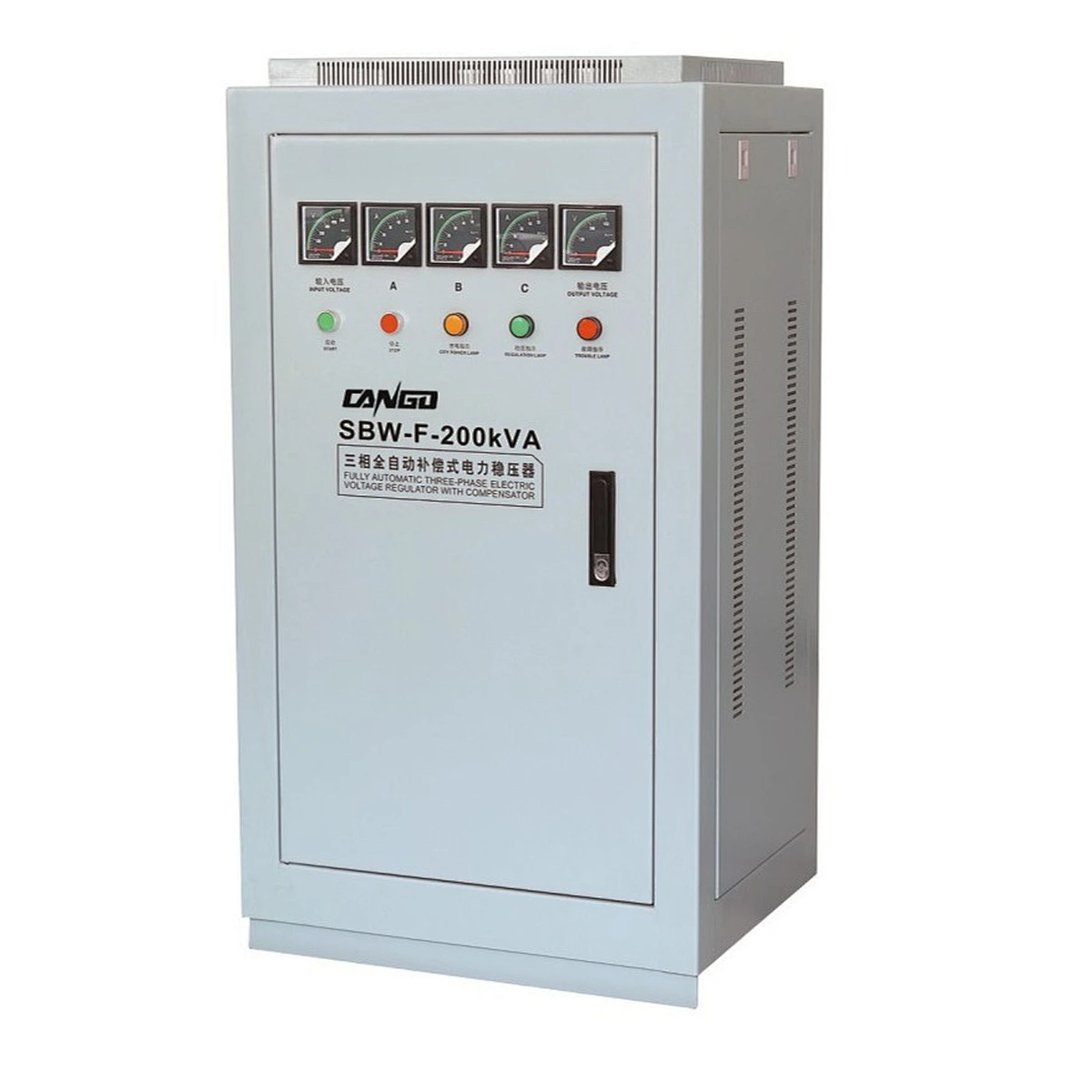

DBW/SBW Fully Automatic Compensated Voltage Stabilizer
It can be applied to large type electromechanical equipment, like postal, marketplace, elevator, hospitals, schools, printing, securities and so on, where need voltage stabilization.
DBW/SBW FullyAutomatic Compensated Voltage Stabilizer
Introduction
DBW, SBW Series single-phase and three-phase fully automatic compensated voltage stabilizer cankeep output voltage in ste ady state automatically when the power network voltage fluctuates or the loadvarics.Compared with other voltage stabilizers, it has the advantage of large capacity, high eficiency, nowave distortion, stable voltage adjustment, suitability for kinds of loads, bearing instantaneous overloadworking continually for long time, as well as free transfering between manual control and automatic co-ntrol,besides, it is provided with protection against over-voltage,over-current,phase failure and protectionfor phase sequence.
It can be applied to large type electromechanical equipment, like postal, marketplace, elevator,hospitals,schools, printing, securities and so on, where need voltage stabilization.
Specifications
| Spec | |
|---|---|
Input voltage | Single-Phases:175-265V Three phases four-line |
Output voltage | Single Phase:220V:Three phases:380V |
Output deviance | 1-5%(Adjustable) |
Frequency | 50Hz/60Hz |
Efficiency | ≥95%(Power>50KVA) |
Response time | ≤1.5S |
Ambient temperature | -10℃~+40℃ |
Insulation resistance | ≥5MΩ |
Electrical intensity | Without breakdown and flashover phenomena at power |
Overload | Double rated current,one min |
Wave form distortion | Non-lack fidelity wareform |
Protect | Overvoltage、overcurrent、feed phases |
Spec Model | Unit(pcs) | Package size(mm) | Weight(Kg) | Spec Model | Unit(pcs) | Package size(mm) | Weight(Kg) |
DBW-20K | 1 | 700×500×1350 | 283 | SBW-150K | 1 | 1000×720×1700 | 550 |
DBW-30K | 1 | 700×500×1350 | 310 | SBW-180K | 1 | 1000×720×1700 | 570 |
DBW-40K | 1 | 700×500×1350 | 330 | SBW-200K | 1 | 1000×720×2000 | 630 |
DBW_50K | 1 | 800×600×1500 | 360 | SBW-225K | 1 | 1100×800×1800 | 660 |
DBW-60K | 1 | 800×600×1500 | 380 | SBW-250K | 1 | 1100×800×2000 | 700 |
DBW-70K | 1 | 800×600×1500 | 400 | SBW-300K | 1 | 1100×800×2100 | 740 |
DBW-80K | 1 | 800×600×1500 | 430 | SBW-320K | 1 | 1100×800×2100 | 760 |
DBW-100K | 1 | 900×700×1700 | 480 | SBW-400K | 1 | 1000×800×2100/2柜 | 1100 |
DBW-120K | 1 | 900×700×1700 | 510 | SBW-500K | 1 | 1000×800×2100/2柜 | 1500 |
DBW-150K | 1 | 900×700×1700 | 530 | SBW-600K | 1 | 1000×800×2100/2柜 | 2200 |
DBW-180K | 1 | 1000×800×1900 | 570 | SBW-800K | 1 | 850×1000×2200/3柜 | 2800 |
DBW-200K | 1 | 1000×800×1900 | 600 | SBW-1000K | 1 | 850×1000×2200/3柜 | 3500 |
SBWL50K | 1 | 800×620×1350 | 350 | SBW-1200K | 1 | 850×1000×2200/3柜 | 4100 |
SBWL60K | 1 | 800×620×1350 | 370 | SBW-1600K | 1 | 110×1100×2200/4柜 | 5560 |
SBW-100K | 1 | 850×620×1500 | 420 | SBW-2000K | 1 | 110×1100×2200/4柜 | 7100 |
