Crewel Tube Pre-insulating Terminals
● Terminal Body: Copper
● Max voltage:105℃ Ui=300V
Crewel Tube Pre-insulating Terminals
Introduction
Insulation: Vinyl
Terminal Body: Copper
Max voltage:105℃ Ui=300V
Maximum Temperature Resistance: 75°C

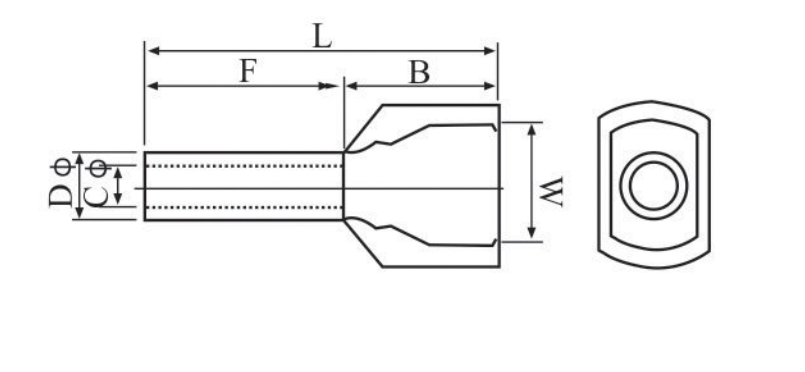

Model Selection
| Item No. | Conductor (mm²) | Dimension(mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| F | L | W | B | DΦ | CΦ | |||
| TE 0508 | 2 X 0.5 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | white |
| TE 7508 | 2 X 0.75 | 8.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | Blue Grey |
| TE 7510 | 2 X 0.75 | 10.0 | 16.7 | 5.5 | 6.7 | 2.1 | 1.8 | |
| TE 1008 | 2 X 1.0 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2.0 | Red |
| TE 1010 | 2 X 1.0 | 10.0 | 17.1 | 5.5 | 7.1 | 2.3 | 2.0 | |
| TE 1508 | 2 X 1.5 | 8.0 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | Black |
| TE 1512 | 2 X 1.5 | 12.0 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 | |
| TE 2510 | 2 X 2.5 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | Grey |
| TE 2513 | 2 X 2.5 | 13.0 | 21.5 | 8.0 | 8.5 | 3.3 | 2.9 | Blue |
| TE 4012 | 2 X 4.0 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | Orange Grey |
| TE 6014 | 2 X 6.0 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | Green Yellow |
| TE 10-14 | 2 X 10.0 | 14.0 | 26.6 | 12.6 | 12.0 | 6.9 | 6.5 | Brown Green Red |
| TE 16-14 | 2 X 16.0 | 14.0 | 31.3 | 19.0 | 17.3 | 8.7 | 8.3 | Milky white White |
