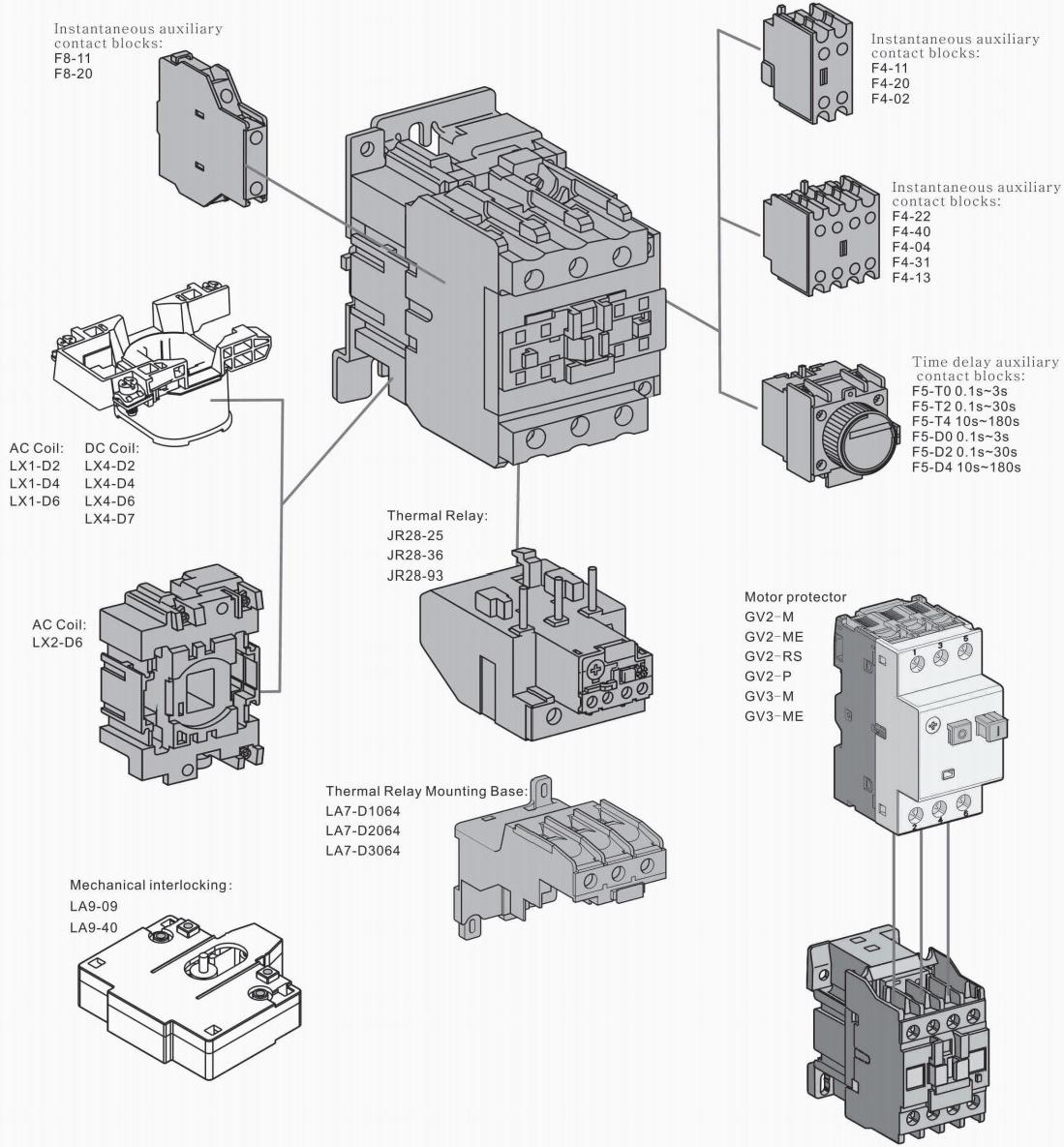

CJX2 LC1 AC Contactor
CJX2 LC1 AC Contactor
DESCRIPTION
CJX2 LC1 AC contactor are employed to connect or disconnect electrical circuits and are commonly used to control motors and other equipment. They operate by controlling high - current circuits with low - current signals. When paired with a thermal relay, AC contactors also offer a degree of overload protection.
GENERAL
2.2 Electric ratings:AC50/60Hz,690V,up to 95A;
2.3 Application:remote making &breaking circuits,protect circuit from over-load when assembling with thermal over-load relay,frequent start-up and control of AC motor;
2.4 Utilization category:AC-3,AC-4;
2.5 Altitude:≤2000m;
2.6 Ambient temperature:-5℃~+40℃;
2.7 Mounting category:Ⅲ;
2.8 Mounting conditions:inclination between the mounting plane and the vertical plane should not exceed±5°;
2.9 Standard:IEC/EN 60947-4-1.
| ltems | Model | CJX2-09(Z) | CJX2-12(Z) | CJX2-18(Z) | CJX2-25(Z) | CJX2-32(Z) | |
| Pole | 3/4 | 3/4 | 3 | 3/4 | 3 | ||
| Auxiliary Contact | 1NO/1NC | 1NO/1NC | 1NO/1NC | 1NO/1NC | 1NO/1NC | ||
| Rated conventional heating current(A) AC-1 | 20 | 20 | 30 | 40 | 50 | ||
Rated operational current (A) | 380/400V | AC-3 AC-4 | 9 | 12 | 18 | 25 | 32 |
| 3.5 | 5 | 7.7 | 8.5 | 12 | |||
| 660/690V | AC-3 AC-4 | 6.6 | 8.9 | 12 | 18 | 21 | |
| 1.5 | 2 | 3.8 | 4.4 | 7.5 | |||
| Rated insulation voltage (V AC) | 690 | 690 | 690 | 690 | 690 | ||
Power of controlled 3-phase cage motor (AC-3) | kW | 220/230VAC 380/415VAC 660/690VAC | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 80 | 100 | 110 | 140 | 160 | |||
| 5.5 | 7.5 | 10 | 15 | 18.5 | |||
| AC coil (V) | 24,36,48,110,127,220,240,380,415,440,480,500,600 | ||||||
| DC coil (V) | 24,36,48,110,220 | ||||||
| ltems | Model | CJX2-40(Z) | CJX2-50(Z) | CJX2-65(Z) | CJX2-80(Z) | CJX2-95(Z) | |
| Pole | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | ||
| Auxiliary Contact | 1NO+1NC | 1NO+1NC | 1NO+1NC | 1NO+1NC | 1NO+1NC | ||
| Rated conventional heating current(A) AC-1 | 60 | 80 | 80 | 125 | 125 | ||
Rated operational current (A) | 380/400V | AC-3 AC-4 | 40 | 50 | 65 | 80 | 95 |
| 18.5 | 24 | 28 | 37 | 44 | |||
| 660/690V | AC-3 AC-4 | 34 | 39 | 42 | 49 | 49 | |
| 9 | 12 | 14 | 17.3 | 21.3 | |||
| Rated insulation voltage (V AC) | 690 | 690 | 690 | 690 | 690 | ||
Power of controlled 3-phase cage motor (AC-3) | kW | 220/230VAC 380/415VAC 660/690VAC | 11 | 15 | 18.5 | 22 | 25 |
| 18.5 | 22 | 30 | 37 | 45 | |||
| 30 | 37 | 37 | 45 | 45 | |||
| AC coil (V) | 24,36,48,110,127,220,240,380,415,440,480,500,600 | ||||||
| DC coil (V) | 24,36,48,110,220 | ||||||
