CJX2-D AC Contactor

Share
CJX2-D LC1D AC contactor covers the model and coil selections shown in its original tables for industrial motor control. Request a B2B quotation.
Contactor / Industrial Motor Control

CJX2-D LC1D AC Contactor

CJX2-D LC1D AC Contactor is prepared for industrial motor switching, remote circuit making and breaking, and control-panel applications. The original model, current, motor-power, insulation-voltage, and coil-voltage tables are retained below for buyer review.

Model
CJX2-D LC1D
Product Type
AC contactor for motor switching
Application Focus
Industrial motors and electrical control panels
CJX2-D LC1D AC contactor for industrial motor control

Buyer Overview

KANGGE ELECTRIC supplies CJX2-D LC1D AC Contactor for importers, distributors, panel builders, machinery manufacturers, contractors, and industrial project buyers.

CJX2-D LC1D AC Contactor is prepared for industrial motor switching, remote circuit making and breaking, and control-panel applications. The original model, current, motor-power, insulation-voltage, and coil-voltage tables are retained below for buyer review.

Quick Selection: confirm model, pole number, utilization duty, operational current, motor power, coil voltage, auxiliary contacts, quantity, and application before quotation.

Key Features

  • •CJX2-D09 through CJX2-D620 model coverage is shown in the original website tables.
  • •The tables retain AC-3 and AC-4 operational-current data for model comparison.
  • •Three-pole and four-pole selections are listed according to the source page.
  • •Available AC and DC coil-voltage selections remain visible in the original tables.
  • •Suitable for B2B inquiries involving motor-control panels, machinery, and distribution control.

Technical Specifications

The following tables are retained from the current product page. Their technical values, model labels, row spans, and column spans are preserved; only the visual styling is standardized for clearer blue-and-white reading.

Original Technical Table 1

Items
Model
CJX2-D09
CJX2-D12
CJX2-D18
CJX2-D25
CJX2-D32
Pole
3/4
3/4
3/4
3/4
3/4
Auxiliary Contact
1 NO+ 1NC
1 NO+ 1NC
1 NO+ 1NC
1 NO+ 1NC
1 NO+ 1NC
Rated conventional heating current (A) AC-1
20
20
30
40
50
Rated Operational
Current(A)
380/400V
AC-3
AC-4
9
12
18
25
32
3.5
5
7.7
8.5
12
660/690V
AC-3
AC-4
6.6
8.9
12
18
21
1.5
2
3.8
4.4
7.5
       Rated insulation Voltage(V AC)
690
690
690
690
690
Power of controlled
3-Phase
Cage motor(AC-3)
kW
220/230V AC
380/415V AC
660/690V AC
2.2
3
4
5.5
7.5
4
5.5
7.5
 11
15
5.5
7.5
10
15
18.5

AC Coil (V)

24,36,48,110,127,220,240,380,415,440,480,500,600

DC Coil (V)

24,36,48,110,220

Original Technical Table 2

Items
Model
CJX2-D40
CJX2-D50
CJX2-D65
CJX2-D80
CJX2-D95
Pole
3/4
3/4
3/4
3/4
3/4
Auxiliary Contact
1 NO+ 1NC
1 NO+ 1NC
1 NO+ 1NC
1 NO+ 1NC
1 NO+ 1NC
Rated conventional heating current (A) AC-1
60
80
80
110
110
Rated Operational
Current(A)
380/400V
AC-3
AC-4
40
50
65
80
95
18.5
24
28
37
44
660/690V
AC-3
AC-4
34
39
42
49
49
9
12
14
17.3
21.3
Rated insulation Voltage(V AC)
690
690
690
690
690
Power of controlled
3-Phase
Cage motor(AC-3)
kW
220/230V AC
380/415V AC
660/690V AC
11
15
18l.5
22
25
18.5

22
30
37
45
30
37
37
45
45

AC Coil (V)

24,36,48,110,127,220,240,380,415,440,480,500,600

DC Coil (V)

24,36,48,110,220

Original Technical Table 3

Items
Model
CJX2-D115
CJX2-D150
CJX2-D170
CJX2-D205
CJX2-D245
Pole
3
3
3
3
3
Rated conventional heating current (A) AC-1

200
200
200
275
280
Rated Operational
Current(A)
380/400V
AC-3
AC-4
115
150
170
205
245
50
65
70
75
85
660/690V
AC-3
AC-4
70
80
100
108
115
25
32
35
38
40
Rated insulation Voltage(V AC)
690
690
690
690
690
Power of controlled
3-Phase
Cage motor(AC-3)
kW
380/415V AC
660/690V AC
55
75
75
90
110
80
100
100
110
140
AC Coil (V)
24,36,48,110,127,220,240,380,415,440,480,500,600

Original Technical Table 4

Items
Model
CJX2-D300
CJX2-D410
CJX2-D475
CJX2-D620
Pole
3/4
3/4
3/4
3/4
Rated conventional heating current (A) AC-1
360
430
 580
850
Rated Operational
Current(A)
380/400V
AC-3
AC-4
300
410
475
620
124
150
185
188
660/690V
AC-3
AC-4
190
235
290
360
60
72
85
170
Rated insulation Voltage(V AC)
690
690
690
690
Power of controlled
3-Phase
Cage motor(AC-3)
kW
380/415V AC
660/690V AC
160
200
250
335
220
280
330
450
AC Coil (V)
24,36,48,110,127,220,240,380,415,440,480,500,600

Dimensions and Original Drawings

The following uploaded images are retained from the current product page for model identification, technical reference, and dimension checking. Confirm the selected model against the latest drawing before panel layout or installation.

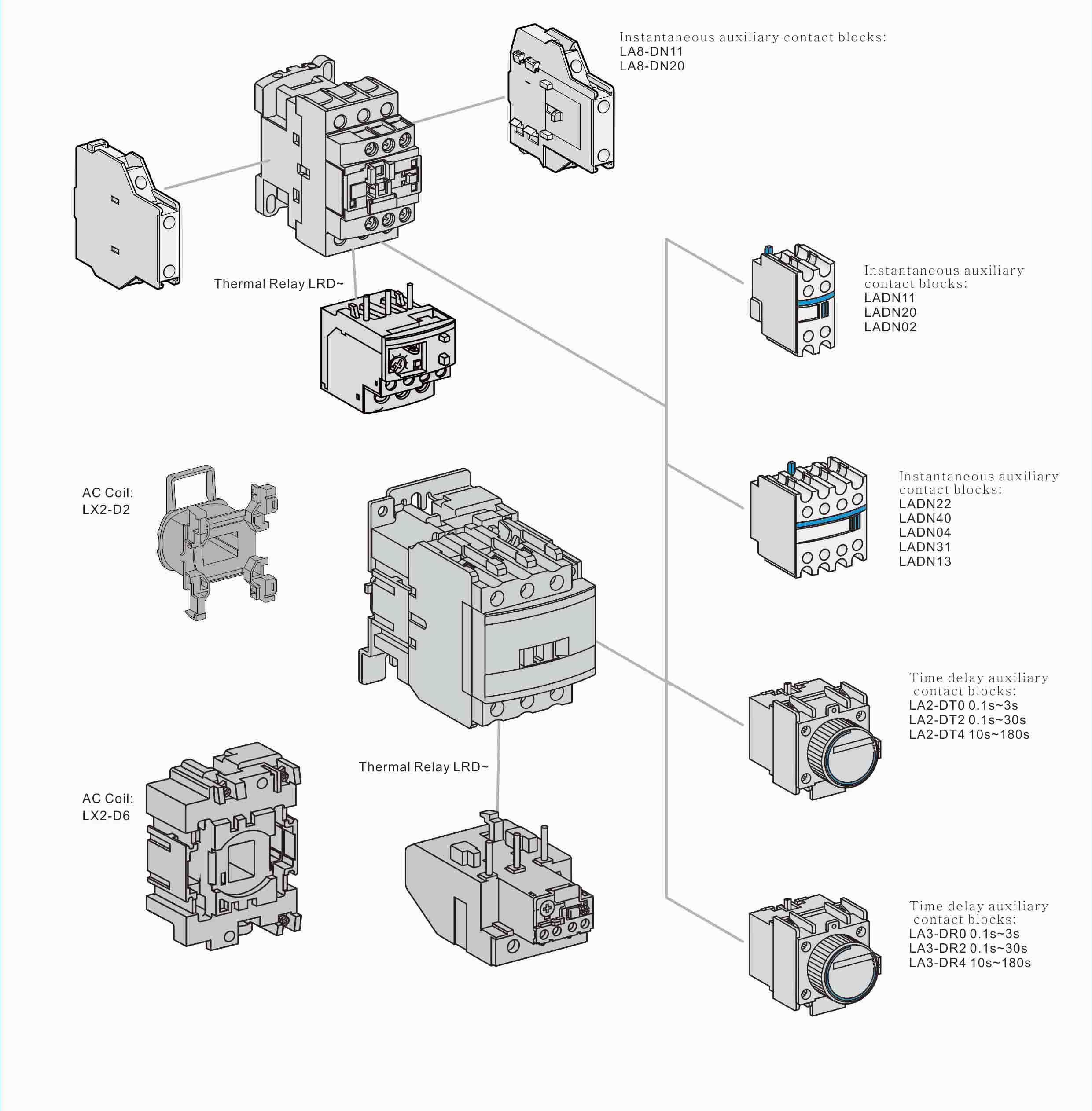

CJX2-D LC1D AC contactor original product detail and dimension drawing

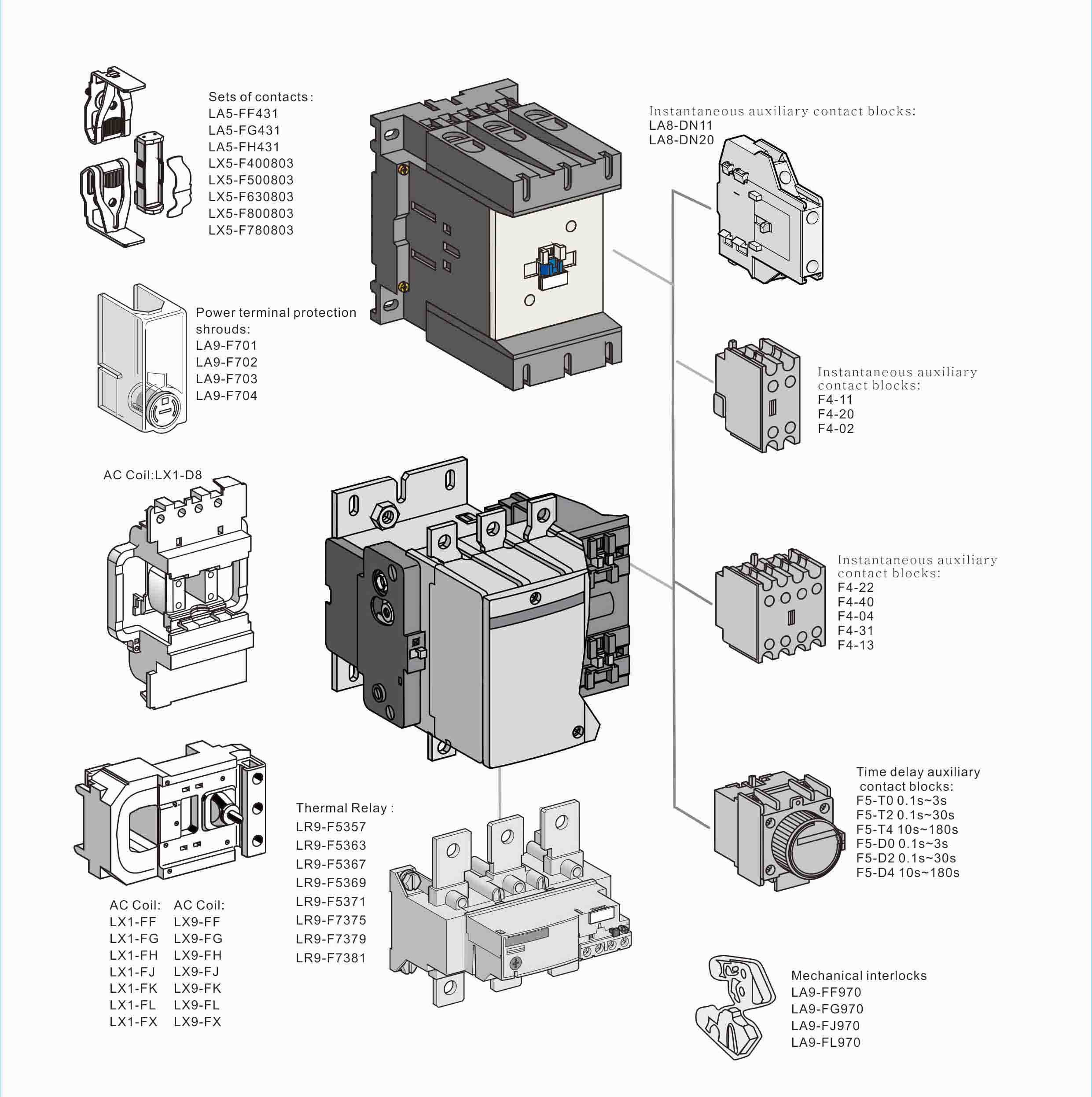

CJX2-D LC1D AC contactor original product detail and dimension drawing 2

Applications

  • •Motor-control panels for industrial machinery
  • •Remote making and breaking of AC circuits
  • •Frequent starting and control of three-phase motors
  • •OEM control cabinets and electrical panel assemblies
  • •Replacement and distributor stock-selection inquiries

Model Selection and Inquiry Notes

  • •Confirm the exact CJX2-D model and pole configuration.
  • •Match the AC-3 or AC-4 duty to the motor and switching requirement.
  • •Confirm rated operational current and controlled motor power from the original table.
  • •Specify the required AC or DC coil voltage in the inquiry.
  • •Confirm auxiliary-contact and accessory requirements before quotation.

Related Search Terms

  • CJX2-D LC1D AC contactor - use this phrase when the model and application match the inquiry.
  • 9A to 620A motor control contactor - use this phrase when the model and application match the inquiry.
  • 3 pole 4 pole AC magnetic contactor - use this phrase when the model and application match the inquiry.
  • AC-3 AC-4 industrial contactor - use this phrase when the model and application match the inquiry.
  • CJX2-D contactor bulk quotation - use this phrase when the model and application match the inquiry.

CJX2-D LC1D FAQ

What information is needed to quote the CJX2-D LC1D AC Contactor?
Please provide the model, pole number, AC-3 or AC-4 duty, operational current, motor power, coil voltage, quantity, and required accessories.
Which CJX2-D models are included on this page?
The retained source tables cover CJX2-D09 through CJX2-D620. Buyers should select the exact model from the visible technical data.
Can this contactor be selected for an industrial motor-control panel?
Yes. Select the contactor according to the motor duty, voltage, current, coil voltage, control design, and the original technical tables.
Are AC and DC coil options shown?
Yes. The original tables list AC coil selections across the series and DC coil selections for the applicable model groups.
