Circle Cable Clips
● Operating temperature: -35C to 85C.
● Color: white, grey, black, other colors are available.
● Plastic bag package, Box package is optional
● Size: from 4mm to40mm
Circle Cable Clips
Introduction
Good elasticity and shock resisting. Inserting type. Nail attached in chips.Time saving and cost saving.
Material: chip made of PE or PP; nail made of medium carbon steel
Operating temperature: -35C to 85C.
Color: white, grey, black, other colors are available.
Plastic Bag package, Box package is optional
Application:Securing of cables for general indoor wiring.
Size: from 4mm to18mm

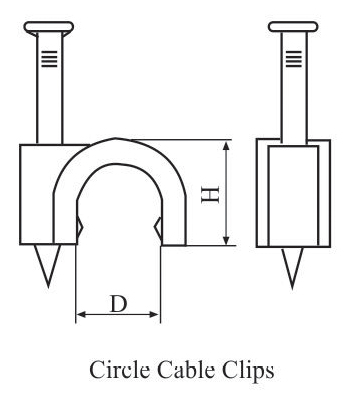

Dimension
Model Selection
| Item No. | H(mm) | Circle Path D(mm) | Nail(mm) |
|---|---|---|---|
| KG-4mm | 5.3 | 4.0 | 1.7 X 14 |
| KG-5mm | 6.3 | 5.0 | 1.7 X 14 |
| KG-6mm | 7.4 | 6.0 | 1.85 X 16 |
| KG-7mm | 8.4 | 7.0 | 1.85 X 18 |
| KG-8mm | 9.4 | 8.0 | 1.95 X 19 |
| KG-9mm | 10.4 | 9.0 | 2.05 X 22 |
| KG-10mm | 11.4 | 10.0 | 2.20 X 23 |
| KG-12mm | 13.4 | 12.0 | 2.20 X 25 |
| KG-14mm | 16.4 | 14.0 | 2.35 X 30 |
| KG-16mm | 19.0 | 16.0 | 2.35 X 32 |
| KG-18mm | 19.7 | 18.0 | 2.6 x 38 |
| KG-20mm | 22.2 | 20.0 | 2.7 X 40 |
| KG-22mm | 25.0 | 22.0 | 2.9 X 43 |
| KG-25mm | 27.7 | 25.0 | 3.1 X 50 |
| KG-30mm | 33.1 | 30.0 | 3.5 X 55 |
| KG-32mm | 35.6 | 32.0 | 3.5 X 55 |
| KG-35mm | 36.6 | 35.0 | 3.5 X 60 |
| KG-40mm | 45.2 | 40.0 | 3.5 X 65 |
