BPA type Flexible Metal Conduit Adaptor
● For insertion into knockouts using a locknut.
● Available for nickel-plated brass, galvanized steel.
Flexible Metal Conduit Adaptor
Introduction
Straight fitting-fixed external thread.
For insertion into knockouts using a locknut.
Available for nickel-plated brass, galvanized steel.

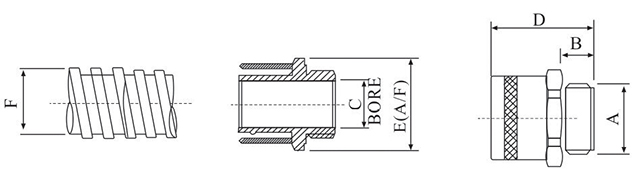

Dimension
Model Selection
| Item No. | Dimension(mm) | Suitable Wires A.W.G | ||||||
|---|---|---|---|---|---|---|---|---|
| Metric | BS | PG | B | C | D | E | F | |
| BPA-10 | M12X1.5 | G3/8" | PG7 | 8 | 5.5 | 23 | 14 | 10 |
| BPA-12 | M16X1.5 | G1/2" | PG9 | 8 | 8.5 | 23 | 17 | 14 |
| BPA-16 | M16X1.5 | G1/2" | PG11 | 10 | 11.5 | 25.5 | 20 | 17 |
| BPA-20 | M20X1.5 | G3/4" | PG16 | 12 | 15.3 | 29 | 24 | 21 |
| BPA-25 | M25X1.5 | G1" | PG21 | 12 | 19 | 36.5 | 30 | 26 |
| BPA-32 | M32X1.5 | G1 1/4" | PG29 | 14 | 26.2 | 39 | 38 | 34 |
| BPA-40 | M40X1.5 | G1 1/2" | PG36 | 15 | 34.2 | 43 | 50 | 44.5 |
| BPA-50 | M50X1.5 | G2" | PG42 | 15 | 45 | 45 | 66.5 | 55 |
| BPA-63 | M63X1.5 | G2 1/2" | PG48 | 20 | 54 | 57 | 76.5 | 64.5 |
| BPA-75 | M75X1.5 | G3" | - | 20 | 66.5 | 60 | 84 | 79 |
