KG-RBD-303MR

KG-RBD-303MR Ready Board

Share
KG-RBD-303MR is a low cost, portable, safe and easy to use pre-wired low voltage two socket outlets ready board with one lighting lamb for single phase supply for electricity to households and business premises that are unbale to carry out conventional full house wiring or who are using power in a confined place or semi-permanent structure.

African Ready Board

KG-RBD-303MR is a low cost, portable, safe and easy to use pre-wired low voltage TAfrican Ready Boardfor single phase supply for electricity to households and business
premises that are unbale to carry out conventional full house wiring orwho are using power in a confined place or semi-permanent structure.

Technical Data：

Items
Parameters
Model Number
KG-RBD-302MR
Dimension
L550mm*W323.5mm*D131mm
Power Input
AC 230V 50Hz
Socket Type
BS/Type G
Max. Power Input
13A
Lamp Holder
Screw type E27/Pin type B22
Material of Ready Board
Injection Molded Plastic
Type of mounting
Wall Mounting With Four Screws
Protection Level
IP54, IK09
Operating Temperature
-30°C to 60°C
Color
Grey

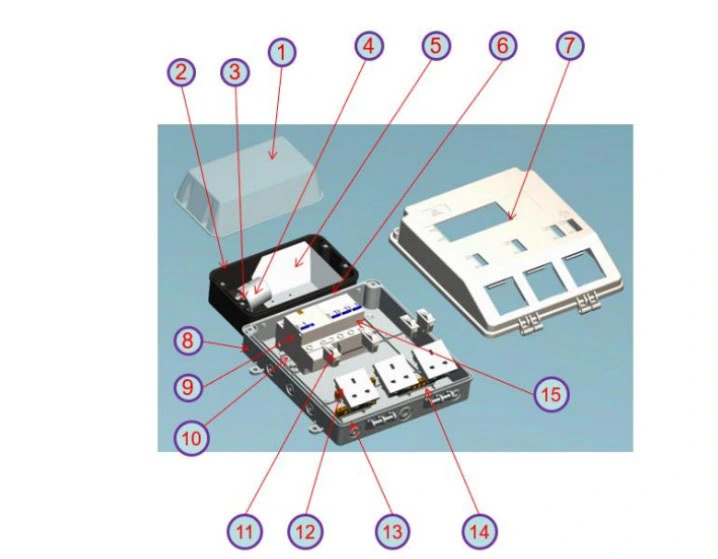

African Ready Board Componets:


China ready board manufacturer- Cango





Products Parameters:

S.N.
Product Name
Material
Specification
1
Lighting chamber cover
HL/transparent PC
196*116*53.5mm, thickness 2mm
2
Lighting chamber base
HL/PC+10%G
196*116*50.5mm, thickness 3mm
3
Lamb fixer
PBT
To fix the lamb
4
Ceramic lamb head
Ceramic
To fix the lamb
5
Reflector
Aluminum
Thickness 0.3mm
6
Waterproof connector
PA
PG11
7
Chamber cover
 HL/PC+10%G
240*274*52.5mm, thickness 3mm
8
Chamber base
 HL/PC+10%G
259*271*44.0mm, thickness 3mm
9
RCBO
Standard
 1P+N 25A
10
Rail
Nickel plating metal
For fixing the RCBO
11
Switch
 Standard
230V AC/up to 15A
12
BS socket
 Standard
230V AC/up to 3A
13
Neutral bar
 Copper
For cable connection
14
Earth bar
 Copper
 For earthing
15
MCB
Standard
3A/16A/25A


Package Details:

Each African Ready Board is packaged in a bubble bag, then in a corrugated paper box and 6PCS in one carton.
Dimension of the box: 370mm*220mm*113mm
Dimension of the carton: 555mm*415mm*350mm
Gross weight of the carton:15.45KGS
Net Weight of the carton:12.2KGS
